china professional manufacturer automatic sunflower oil expeller
1.WORKING PRINCIPLE OF SUNFLOWER OIL EXPELLER
The power comes from main motor being passed on to the shaft, and with the rotation there the worm push the oil crops seeds forward continually .because of the space between squeeze chamber and squeeze worm become more and more tighter,also with higher density of the raw material ,
therefore the pressure increasing gradually. Meanwhile,due to the friction from oil particles movement surely much heating will appears ,so far the two basic factors had been complete for oil technicals ,they damage the cell tissue and resulting in crude oil flows to the mixing tank via oil plate for further simple filter,in this way,the oil residue was segregate on the screen.And related to the cake residual ,they are being pushed out from special designed discharge hole.

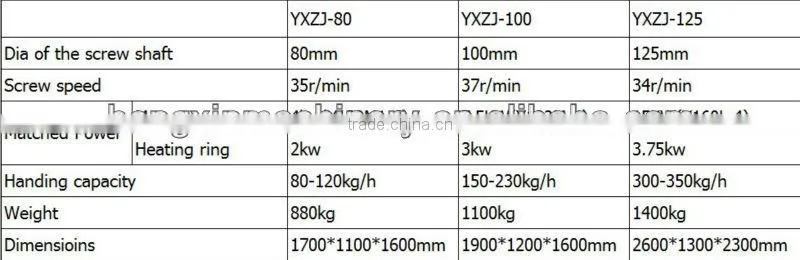

2.TECHNICAL PARAMETER
3.MACHINE PERFORMANCE TESTING
4.FEATURES OF SUNFLOWER OIL EXPELLER
1.Fully automatic with 2 vacuum oil filters ,not only save labour about 60%
(one or two person are okay for operate one machine)
but also remove residue so as to ensure the pure oil quality and meet the standard of health guarantine
2.Small land using---only 10-20 square meters is enough for production
3.Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as
peanuts,sesame ,rapeseeds,soybean,sunflower seeds and flax and etc by third levels for one time.
4.Cake residual oil rate---only 6%-7%. So the cake also can be used for animal feed.
5. dual-use for hot press and cold press
6. low investment (near 3000 dollars) but big project , for 1 liter final oil , and its price comes higher than the one which processed by chemical solvent extracted oil (sold in supermarket) , moreover taste comes better .
5.MACHINE COMPONENTS
It is mainly composed by 7 major parts respectively that is screw axis ,press cage,feed mechanism ,cake yielding mechanism ,transmission system,electric control part and vacuum filter part.
All the parts are assembled on one frame and screwed as a whole.
6.PROFESSIONAL ADVICE
Please kindly inform us your required daily capacity,raw oilseed species , whether plan to roaste .so that we can make flow chart production line for your reference.
We will stand at your feet to suggest a low cost and suitable production line.
7.BUINESS CARD
8.BASIC PROCUDURE
hulling—screening—roasting---grinding---pressing ---refinery by centrifugal oil filter

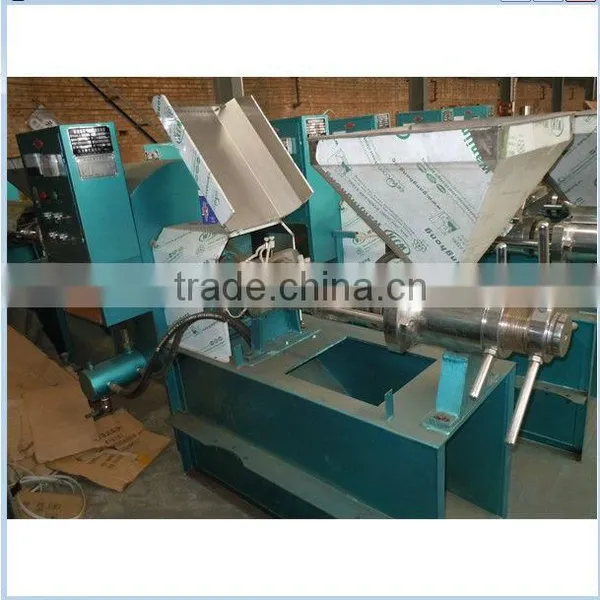

9,DETAILS SHOWS (photos) OF SUNFLOWER OIL EXPELLER
