Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > Firewood Heating Drum Rolling Type Sawdust Drying Machine

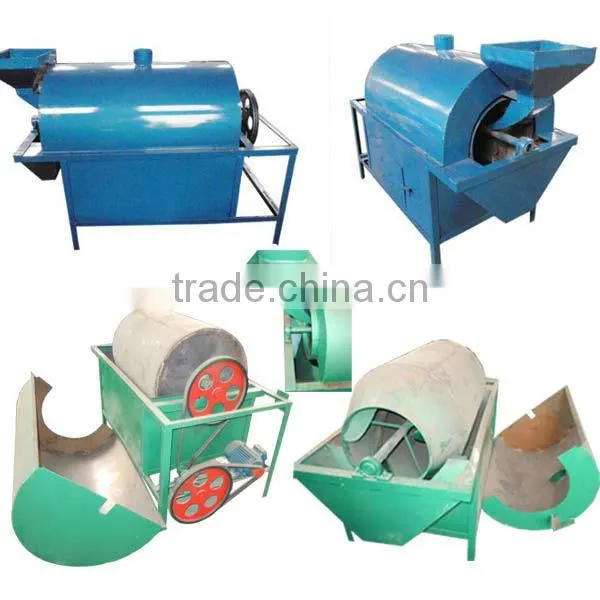

Firewood Heating Drum Rolling Type Sawdust Drying Machine
US$ 800 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HX
Model Number:
YXDML100/135
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Price Soybean Seeds DrierUS$ 800 - 1,000MOQ: 1 Set -
Supplier of Roller Type Steaming and Stir-frying CauldronUS$ 800 - 1,000MOQ: 1 Set
-
Factory Price Roller Drying MachineUS$ 800 - 1,000MOQ: 1 Set
-
Oil Mill Used Firewood Heating Fry Seeds EquipmentUS$ 800 - 1,000MOQ: 1 Set
-
Groundnut Drum Frying Roaster With Firewood HeatingUS$ 800 - 1,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
HX
Model Number
YXDML100/135
Voltage
380v/50HZ
Power(W)
0.75KW-1.5KW
Dimension(L*W*H)
155*83*110CM
Weight
180kgs/315kgs
Certification
CE,ISO
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Type
Other, Seed Roaster
Sawdust Drying Machine,Seeds Drier , Seeds Baking Machine , Seeds Drying Machine , Seeds Roasting Machine , seeds drier ,frying cauldron
Usage:
Frying oil crops before squeezing.to swell the oil molecule,to improve the oil production capacity and oil output rate.
Specifications:
| MODEL | DIMENSIONS | WEIGHTS | HANDLING CAPACITY | MOTOR |
| YXDML100 | 155*83*110CM | 180kgs | 200kgs/h | 0.75KW |
| YXDML135 | 200*100*120CM | 315kgs | 350kgs/h | 1.5KW |
Features:
- the rotating design of drum to help the oil crop being heat uniformly and temperature can be controlled easily ,which saving energy and save time
- the main parts includes transmission ,rotating drum ,control switch and etc. We can also install the automatic feeding devise depends on clent’s need.
- Not-damaged for nutritional ingredients and guarantee minimal loss of their color, flavor
- Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
- Air heating system is able to allow highly efficient removal of water from fresh harvested forage
- .easy to dry and ejection of compact
Application:
Applicable for drying all kinds of oil crops,like peanut ,soybean , sesame and tea seeds,cottonseeds,coconut,palm,rice bran ,hemp ,corn embryo and etc,even with the sawdust particles.
Cautions:
- ensure no electric leakage of the wire and no ground wire connected
- keep the machine running 5-10 minutes before putting the seeds into the hopper
- Fried time will be different ,and mainly it depends on the oil crop amount,normally 15-30 minutes can fry 2-3 drum per hour .
- Normally the temperature is controlled in 160-230°C during the seeds frying process (the temperature varies depends on the crops), crops in medium well cooked are most appropriate.
