Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine

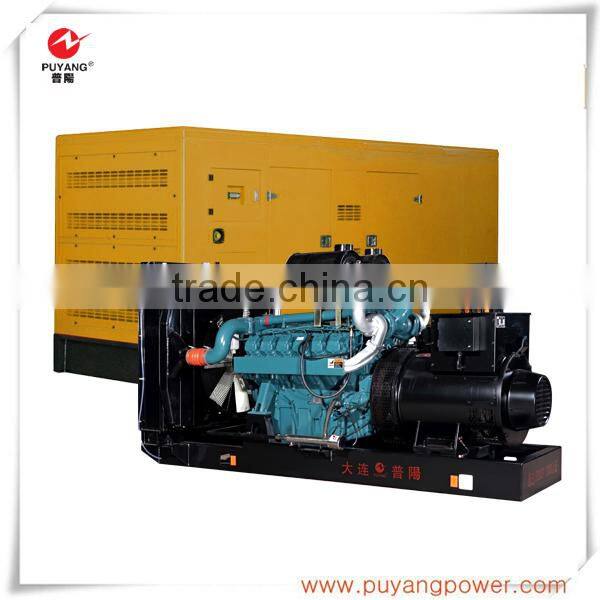

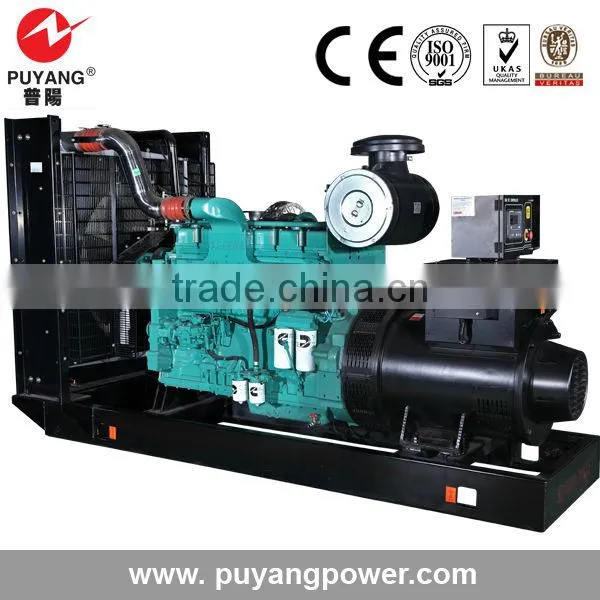

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine

Name: Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine
Brand: PUYANG
SKU: 141416294
Availability: InStock

Dalian Puyang International Trade Co., Ltd.

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine thumbnail-1

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine thumbnail-2

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine thumbnail-3

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine photo-1

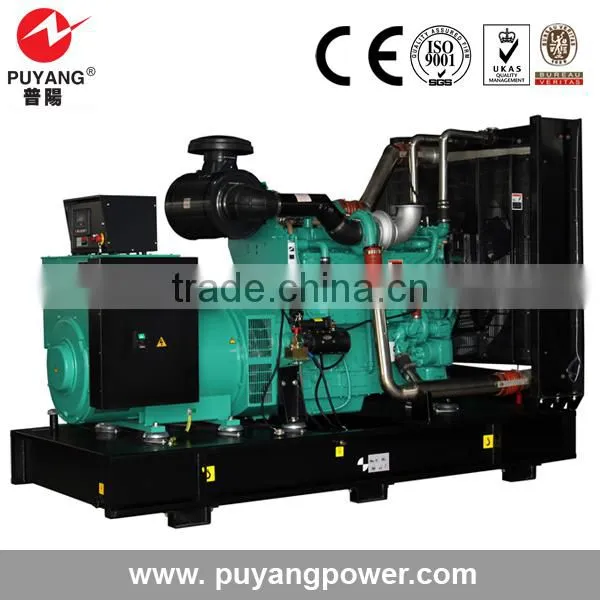

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine photo-2

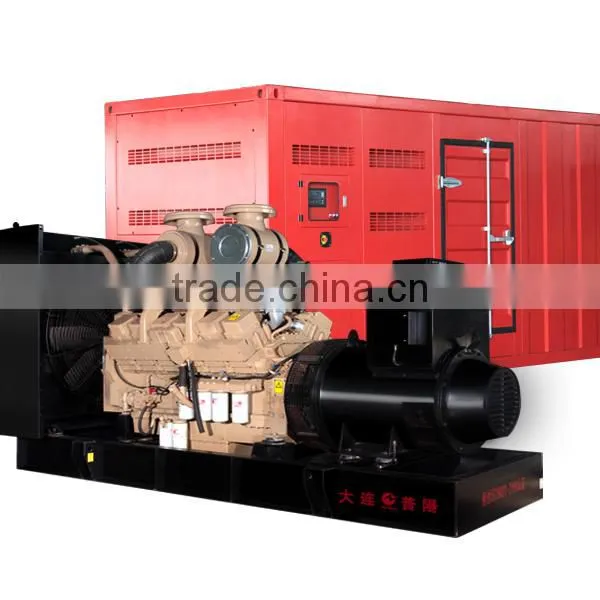

Global Service 1000 Hours Guarranty Ats Diesel Generator 500kva Powered by Cummins Engine photo-3

US$ 1 - 39,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

PUYANG

Model Number:

PFC500

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN TIANJIN QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name PUYANG

Model Number PFC500

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Power 500kw/400kva

Rated Voltage 230/400V

Rated Current 722A

Global service 1000 hours guarranty ats diesel cummins generator 500kva

Technical data

Genset Model	PFC500
Prime Power	500kva/400kw
Rated Voltage	400/230V
Frequency	50Hz
Power Factor(COS)	0.8(lagging)
Dimension (L×W×H) (mm)	3290×1360×1990
Genset weight (kg)	4000

Diesel Engine

Brand	Cummins
Model	KTA19-G3A
Number of Cylinders	6
Rotating Speed	1500RPM
Cylinder Arrangement	V
Cycle	Four stoke
Aspiration	Turbocgarged air-air cooled
Bore×Stroke(mm)	159×159
Displacement(L)	19
Compression Ratio	N/A
Speed Governor	Electrical
Cooling System	Water-cooling
Speed Stability (%)	≤5%
Total Lubrication System Capacity (L)	50
Coolant Capacity (Inc. Radiator) (L)	108
Fuel Consumption at 100% Load	108.3.0L/hr(at 1500RPM)
Starting Method	Electrical starting

Alternator

Brand	Marathon
Number of Phase	3
Connecting Type	3 Phase and 4 Wires,"Y" type connecting
Number of Bearing	single
Protection Grade	IP22
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating
Insulation Class, Temperature Rise	H/H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%

Control Panel

The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressurehigh water temperatureover speedover load protection function.
