Specifications
germany made diesel generator1.MAN Germany engine
2.Stamford,marathon alternator
3.CE certificate
4.China OEM

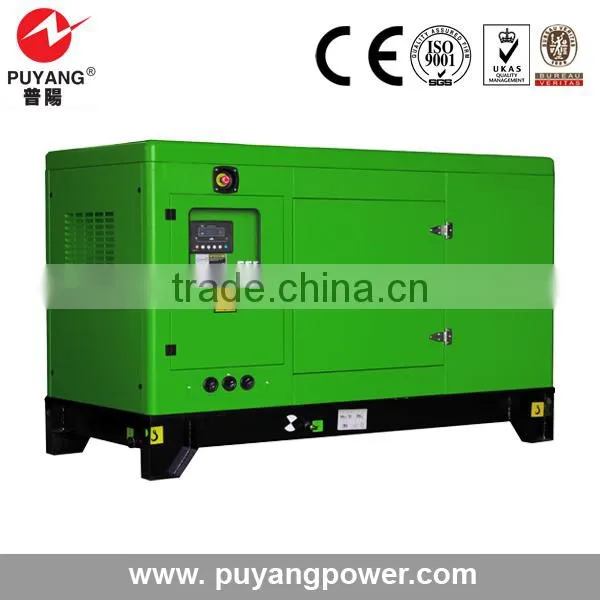

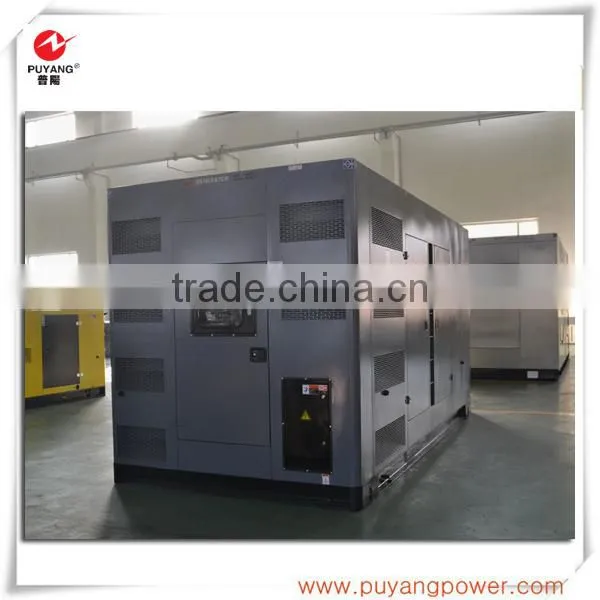

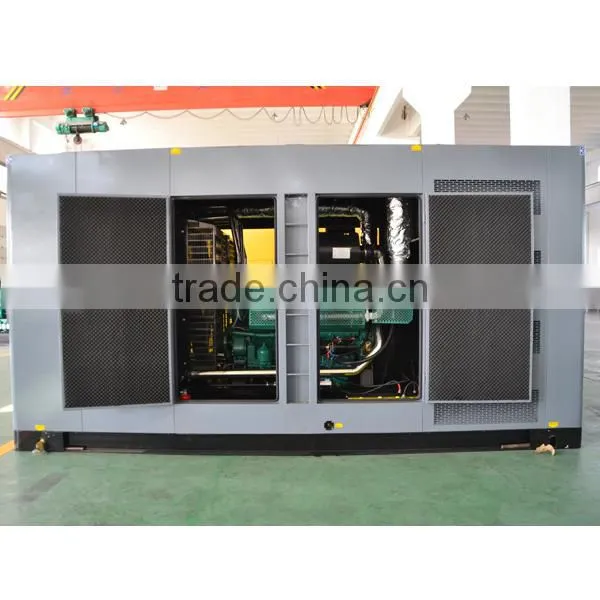

500kva Man silent germany made diesel generator for sale
Puyang PFM series diesel generators are powered by Man engine.As we all know,the first diesel engine of the world was made by Man in 1893. It is Man that stands for higher power ratings and exemplary environmental compatibility.And the design of Man diesel engines is light,strong power supply permanence application ,low fuel consumption and operate continuously.
| Engine and Alternator specification | ||
| 1 | Engine | MAN, Germany |
| 2 | Engine type: | water-cooling, in line four-stoke, wet cylinde liner, direct injection |
| 3 | Cooling system | water cooling |
| 4 | Start | Electric start |
| 5 | Alternator | Marathon,stamford,engga, |
| 6 | Alternator type | brushless, self-excitation,50Hz, 1500rpm |
| 7 | Excitation | self-excitation |
| Diesel Generator Set specification | ||
| 1 | Place of Origin | China,Liaoning |
| 2 | Brand Name | PUYANG |
| 3 | Model Number | PFM500 |
| 4 | Output Type | AC Three Phase |
| 5 | Speed | 1500rpm |
| 6 | Frequency | 50hz |
| 7 | Rated Power | 400kw/500kva |
| 8 | Rated Voltage | 400/230v |
| 9 | Certification | CE,ISO,GOST |
| 10 | Warranty | 1000hours/qyear |
| 11 | Delivery time | 7--30 days |
| 12 | Basic infornation | 230 / 400V AC, 0.8pF three-phase and four wires alternating current output |
| 13 | Color | Red,black,yellow,gray, |
| 14 | Protection Grade | IP21/23 |
| 15 | Insulation Grade | H/H |
| 16 | Regulator | AVR |
Accessories:
1) Standard accessories: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control panel, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
