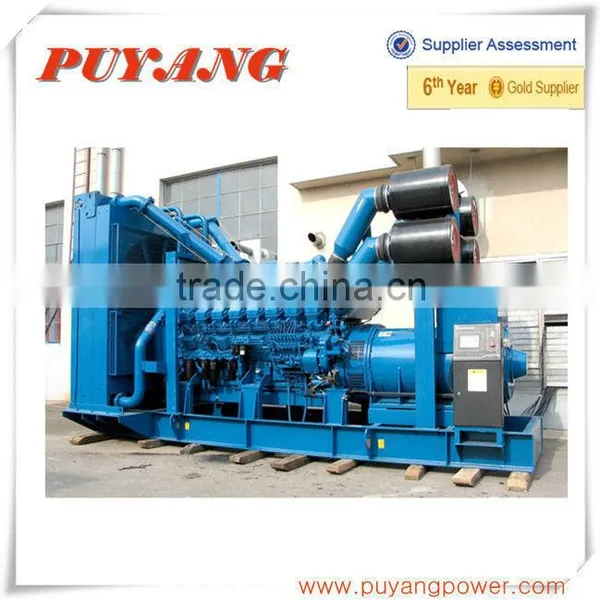

500kw/625kva diesel power generating sets with mitsubishi engine

500kw/625kva diesel power generating sets with mitsubishi engine

Engine Specifications:

1. Output range: 500KW/625kva

2. Available Engine: Japan Mitsubishi

3. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fanair cooling

4. Key start / auto start

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

7. Soundproof / weatherproof canopy optional

Alternator:

1. Brushless, 4 poles, rotation magnet

2. IP21-23(NEMA1) enclose is standard for all industrial alternators

3. H class insulation system

4. AVR self-regulated, voltage regulation rate: ≤±1%

5. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

6. Wide range of flange adaptors and single bearing disc coupling

7. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

8. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 75DB@7M

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop
