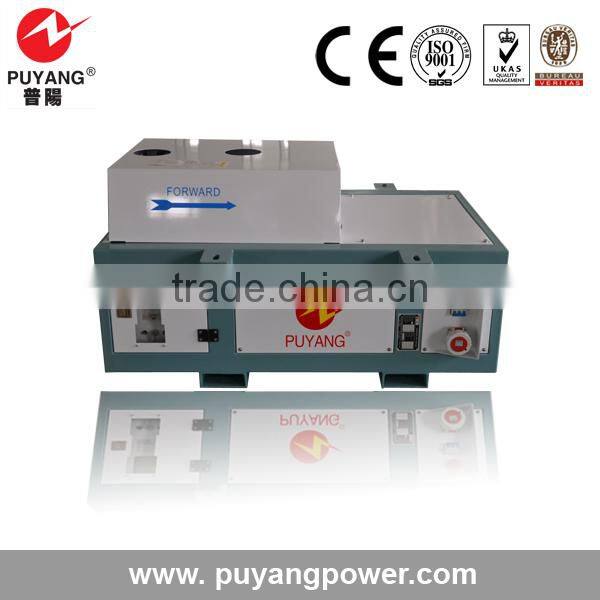

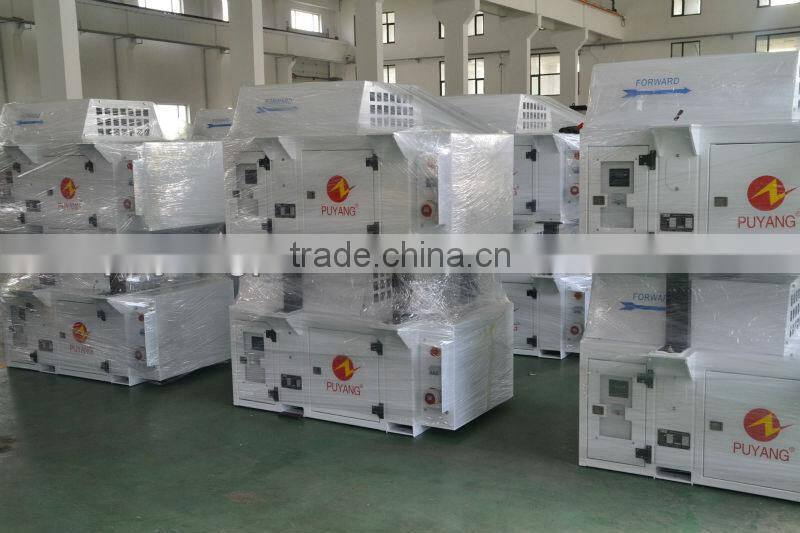

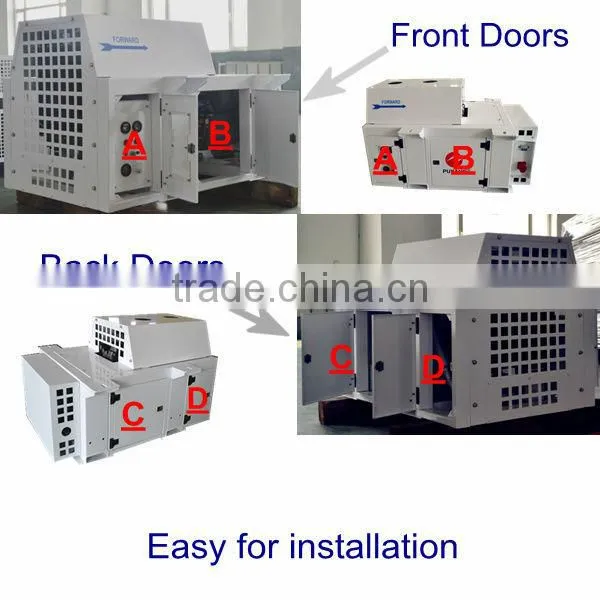

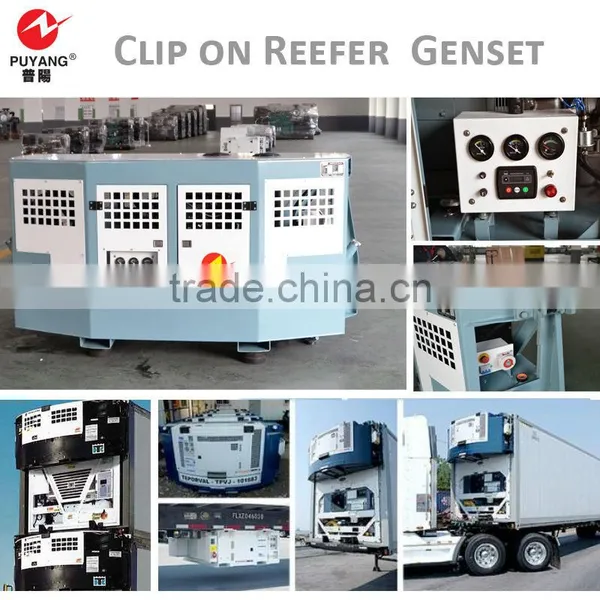

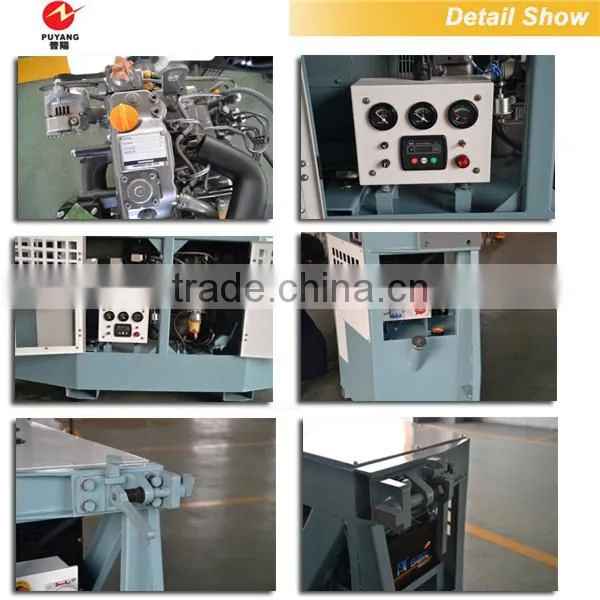

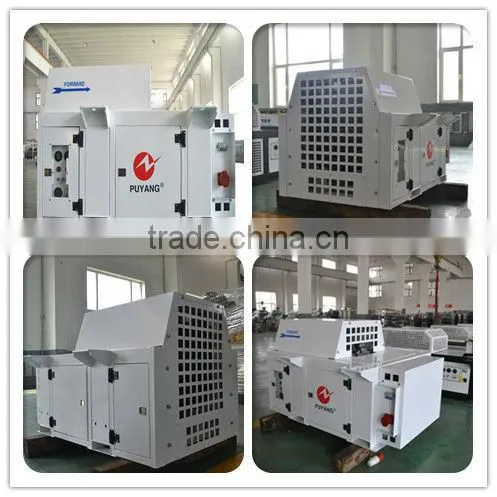

Laidong engine reefer clip-on generator for container
CLIP-ON generator set is designed for mounting to the upper front structure of an ISO reefer container. The design incorporates quick connection to the upper container corner castings. Additional attaching points on the container vertical structural members provide a secure mounting arrangement. It is a completely welded steel structural assembly designed to withstand minimum 3g’ s acceleration forces in all directions.
Genset Model | PF16GFL | PF16GFL | ||
GENSET | Rated power(Kw/kva) | 16/20 | 16/20 | |
Frequency(Hz) | 60 | 60 | ||
Phase | 3 | 3 | ||
Voltage(V) | 460 or 440 | 460 or 440 | ||
Fuel capacity(L) | 200 | 200 | ||
Fuel consumption(L/Hour) | 4.8 | 5.8 | ||
Dimension (mm) | L | 2320 | 2320 | |
W | 660 | 700 | ||
H | 1100 | 1100 | ||
Weight(kg) | 740 | 750 | ||
Noice level for silent type (Db/7m) | 70 | 70 | ||
ENGINE | Model | 4TNV88-GGE YANMAR BRAND | 4L22BD-4 LAIDONG BRAND | |
Cylinders | 4 | 4 | ||
Type | Vertical, 4-cycle water-cooled diesel engine | Vertical,4-cycle water-cooled diesel engine | ||
Starting method | Starting motor 12V,1.4kw | Starting motor 12V,1.4kw | ||
ALTERNATOR | Model | GM-16-4 | GM-16-4 | |
Manufacturer | Marathon | Marathon | ||
Insulation class | H | H | ||
Excitation method | Brushless self-excitation | Brushless self-excitation | ||
Package: plywood case or plastic wrapping
Our service:
We provde guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
