Copper Wires 5kVA Welding Generator With Recoil Start

Name: Copper Wires 5kVA Welding Generator With Recoil Start
Brand: PUYANG
SKU: 141416048
Availability: InStock

US$ 599 - 699 MOQ: 20 Sets

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

PUYANG

Model Number:

PFW6600

Dalian Puyang International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name PUYANG

Model Number PFW6600

Output Type AC Single Phase

Speed 3000/3600RPM

Frequency 50/60Hz

Rated Power 5kva

Rated Voltage AC 220V

Rated Current 50-190A

Specifications

1.Non-stop smooth electric arc
2.Double purposes for welding and generating
3.Low oil shut down protection system
4.1 year

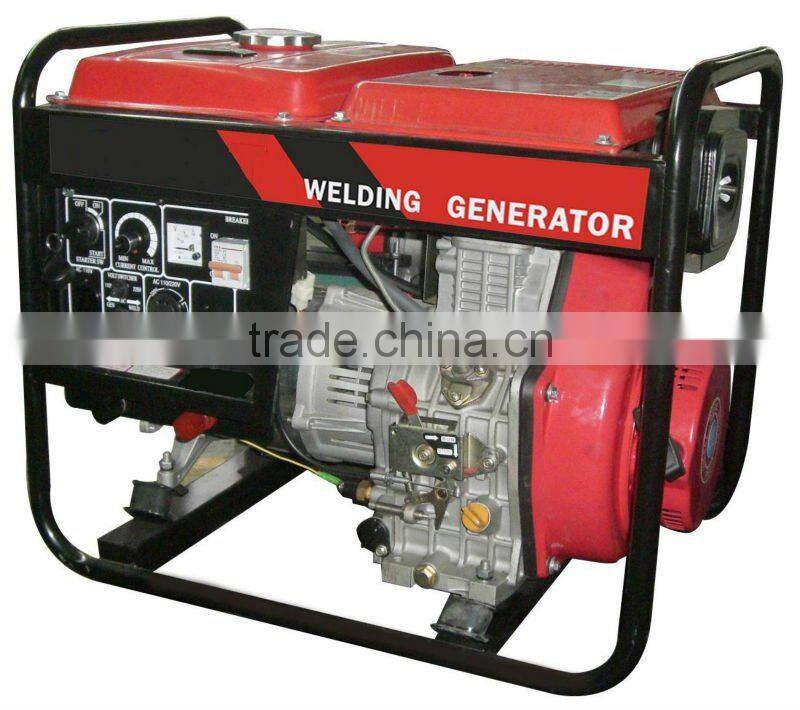

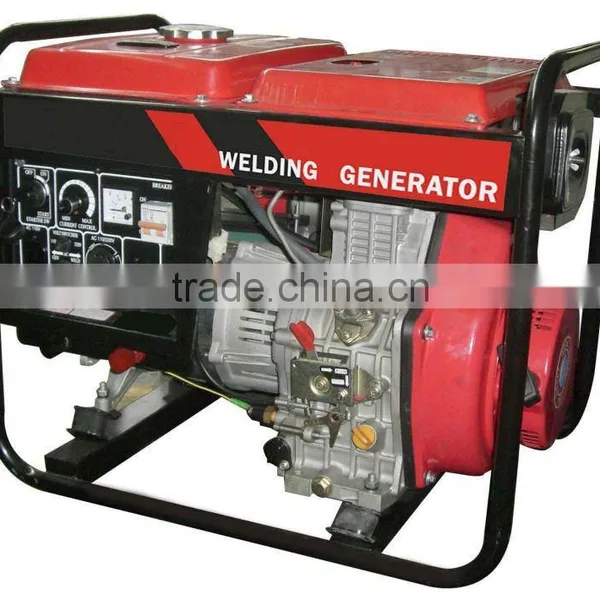

Copper wires 5kVA Welding generator with recoil start

Double purposes for welding and generating,compact and lightweight
Non-stop smooth electric arc is avalable for any welding
AC auxiliary current and DC welding current can be used simultaneously which improves the working efficiency and is convenient for operations.
Low oil shut down protection system
One year warranty with free spare part

Model	PFW6600
Generator:
Frequency(Hz)	50/60
Phase number	single phase
AC voltage	110/220/230/240/380V
Rated /Max. power (Kva)	5.0/5.2
Rated speed	3000/3600rpm
Starting method	Recoil / Electric
Structure type	Open-frame type
Welding:
Welding voltage without load	55-65V
Rated current	160A
Welding voltage (V)	28~32
Current regulation range	50-190A
electrode Φ (mm) / (inch)	2.0~3.2 / 0.079~0.126
Engine	JD186
Engine type	air-cooled, diesel engine
Bore×stroke	86×72 mm
Displacement	418cc
Rated Power (HP)	10
Fuel consumption	≤273g/kW.h
Gross Weight(kg)	110
Dimension(mm)	740475590
