Specifications
Diesel Generator Set With Spare Parts1.Man Engine
2.Low Fuel Consumption
3.280kW Output Power
4.ISO/CE Approved

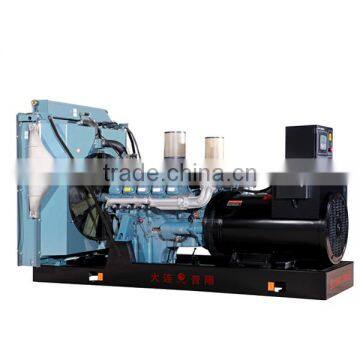

Open Type Man Diesel Generator Set With Spare Parts For India
Diesel Generator Set With Spare Parts Features

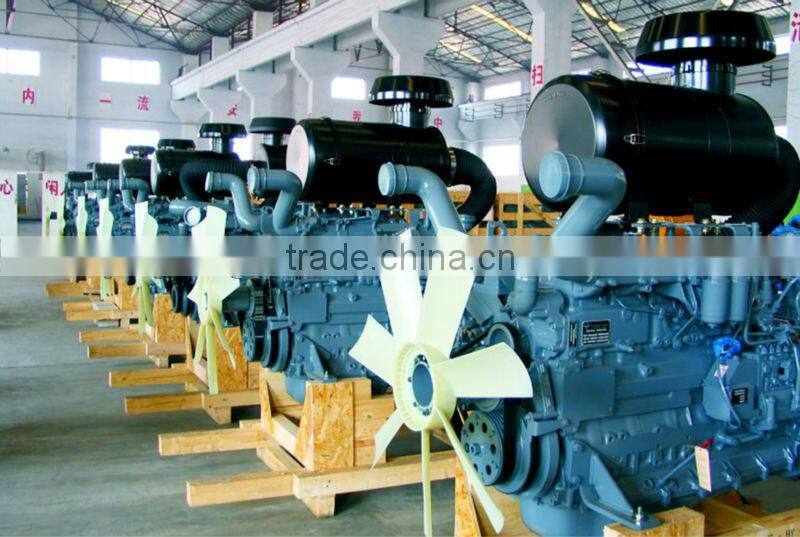

1. Genuine Man engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Original Stamford, Leroy Somer, Marathon, Engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
| Genset Data | |
| Genset Model | PFM350 |
| Prime Power | 350kVA/280kW |
| Rated Voltage | 400/230V |
| Rated Current | N/A |
| Frequency | 50Hz |
| Dimension(mm) | 3200*1200*1868 |
| Weight(kg) | 2308 |
Engine Data | |
| Brand | D2866LE201 |
| Governor Type | Electrical |
| Rotating Speed | 1500rmp |
| Cooling Method | Water Cooling |
| Cylinder Nos. | 12 |
| Bore*Stroke | 128*157mm |
| Lub.Oil Capacity | 38L |
| Consumption | 65L |
| Alternator Data | |
| Brand | Leroy Somer |
| Power Factor | 0.8(lagging) |
| Connecting Type | 3 Phase 4 Wires |
| Excitation | Brushless Self-Excitation |
| Voltage Control | AVR |
| Insulation Grade | H |
| Protection Class | IP21-23 |
Control Panel Data | |
| Brand | Deep Sea |
| Features | LCD Screen Touch Bottons |
| Main Functions | 280kW/350kVA Diesel Generator Set |
| Display output power, voltage,currency,frequency,speed,temperature,oil pressure,running time etc. | |
| Warm the high/low voltage,currrency,frequency,battery voltage | |
| Shut down when emergency circumstances | |
Optional Accessories:
1. ATS (Automatic Transfer Switch)
Which can start the diesel generator set when the main power is off; when the main power comes back, it will shut down
automatically. And ATS has the functions of AMF (Automatic Main Power Failure)
2. MCCB (Molded Case Circuit Breaker)
Which can protect the loading machine and the diesel generator.
3. Battery Charger (Float Charger)
When the diesel generator hasn’t been used for a long time, the batteries will be no power.In this way, you
can’t start the generator. But the battery charger can charge the batteries from main power.
4. Extra Daily Fuel Tank
Which will be requested while the base fuel tank capacity is not enough for daily fuel consumption.
5. Paralleled System
Which can make several generators work together and automatically distribute the load according to set.
6. Remote Control Panel
Which can control the generation by computer.
7. Water Separation (Additional Cooling System)
If the ambient temperature is too high, it will be harmful to the generation. Meanwhile fan and water cooling
is not enough for radiate. The water separate system is much better for cooling, and the life of generator
will be much longer.
8. Spare Parts of MAN engine
All the spare parts of each MAN engine are supplied at a very competitive price.
Package:plastic wrapping or plywood case
Delivery Time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
