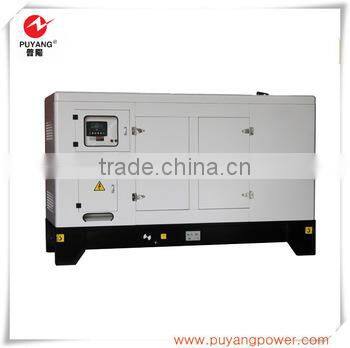

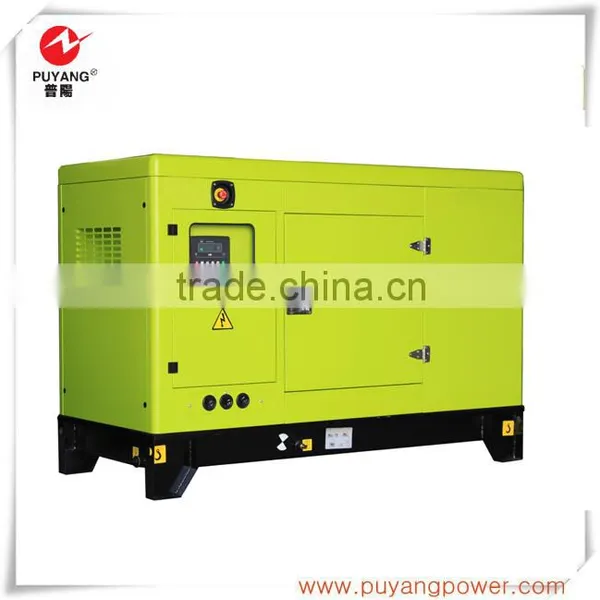

Silent 120kW Prices Of Orient Generators In Pakistan Alibaba China Suppliers
- 100 Set / Sets per Month
- Dalian
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Puyang | Model Number: | PFC150 |
Output Type: | AC Three Phase | Speed: | 1500rpm | Frequency: | 50Hz |
Rated Power: | 120kW/150kVA | Rated Voltage: | 400/230V Adjustable | Rated Current: | N/A |
Product Description
Specifications
Silent Generator 150kva1.Diesel Generator Canopy
2.Cummins Engine
3.Leroy Somer Alternator
4.Deep Sea Control Panel
Silent 120kW Prices Of Orient Generators In Pakistan Alibaba China Suppliers
General Advantages
1. Low cost, high efficiency, compact structure, environment friendly
2. Heavy load durable, four-stroke, water cooled engine
3. Excellent transient response
Specification of the Prices Of Orient Generators In Pakistan
Generator set model | PFC150 |
Type | silent |
Generator set output power range | 120kw/150kva |
Rated voltage | 400/230V Adjustable |
Frequency | 50Hz |
Power factor | 0.8 |
Rated speed | 1500rpm |
output type | AC three phase |
Motor Excitation Type | brushless |
Frequency | <3% |
Frequency at stable state: | <0.5% |
Frequency deviation at instantaneous state | ≤+10% |
Frequency return time | ≤3s |
Voltage deviation at stable state | ≤±1% |
Voltage deviation at instantaneous state | ≤+20% |
Voltage return time | ≤4s |
Voltage modulation | ≤0.3% |
Parameters of the Engine
Model | 6BTAA5.9-G2 |
Cooling Method | water cooling |
Rotating speed | 1500 |
Governor system | electrical or mechanical governor |
Aspiration mode | natural aspirated or turbocharged |
Starting method | 12/24V DC electric starting |
Stroke | 4 stroke |
Parameters of the Alternator
rand | Leroy Somer |
Regulator | AVR automatic voltage regulating |
Excite type | Self-excitation |
Connecting type | 3 phase 4 wires |
Steady frequency change | 0-5% |
No load voltage | ≥95%-105 |
Steady voltage | ≤±1 |
Insulation degree | H/H |
Exclosure degree | IP21/23 |
Q1:How long time is the warranty?
Answer:We can provide 12 months mending service guaranteed.
Q2:What is the delivery time?
Answer:7 days after receiving your deposit.
Q3:What are the payment terms?
Answer:T/T 30% deposit .70% balance against the B/L copy or L/C at sight.
Q4: 5. How about the quality of your machine?
Answer: a.Good reputation for reliable quality and reasonable price
b.Advanced technology and production line by skilled workers

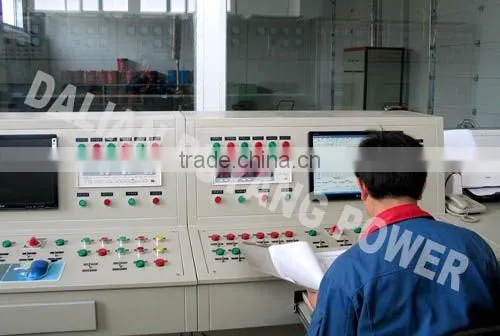

c.We will test and check the machine strictly before shipment.And we have the only one full-function testing center in northern China.
d.CE ISO approved
Warranty: We provide the guarantee for 500 running hours or 6 months ranging from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months ranging from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
1.7 years assessed suppier audited by BV group including ISO9001,ISO14000,ISO18000 and CE certification
2.Located in Northern China Dalian and the other brother factory in sounthern China Xiaman,we can ensure the fast delivery.
3.30-90 days credit to make all our partners to get benefits earlier than us.
