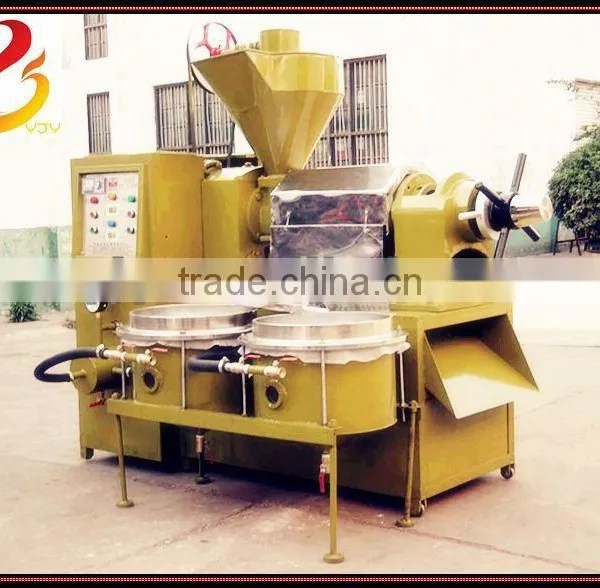

6YZ Stainless screw peanut oil press machine of type oil press

Specifications

1.High oil output rate
2.Press many oil seeds
3.Stable running&Low maintenance
4.Easy operation&save energy
5ISO9001:2008&CE

Brief introduction of oil press

This series screw oil press is a signal screw oil processing machine, it can be used in oil plant to get edible oil from kinds of oil seed, olive oil press of this model is a screw oil press with capacity ranges from 1t/d to 100t/d, it is a popular model in series of oil seed press. Those screw type screw oil seed presses are advanced olive oil processing machinery, characterized by their high oil output rate with good quality, simple design, easy to use and continuous operation.

Structure of oil press

Screw oil press  is composed of feeder, gearbox, pressing cage, screw shaft and edible oil extraction machine stand etc.

Use of oil press

It is suitable for all kinds of plant seeds, such as rapeseeds, peanut, soybean, sesame, cottonseed, palm, rice bran, corn embryo etc.  especially, has better results to press olive, soybean and cottonseeds.

Working principle of oil press

This kind of screw oil press utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.

Parameters of oil press

MODEL	CAPACITY(kg/h)	POWER(kw)	NET WEIGHT(kg)	PACKING(mm)
6YL-68	40	5.5	130	1050*660*760
6YL-80	80-125	5.5	330	1320*440*695
6YL-95	160-200	11	420	1910*610*765
6YL-100	160-200	7.5	400	1860*550*695
6YL-120	200-300	11	700	2060*610*770
6YL-130	375-500	18.5	700	2320*700*780
6YL-160	550-700	18.5	920	2020*700*780
6YL-165	620-830	22-30	1600	2120*800*980

Note: The above technical parameters are just for your reference.
