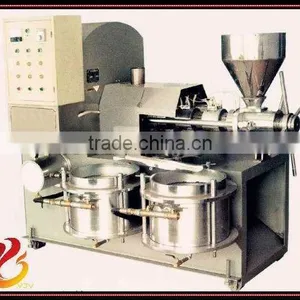

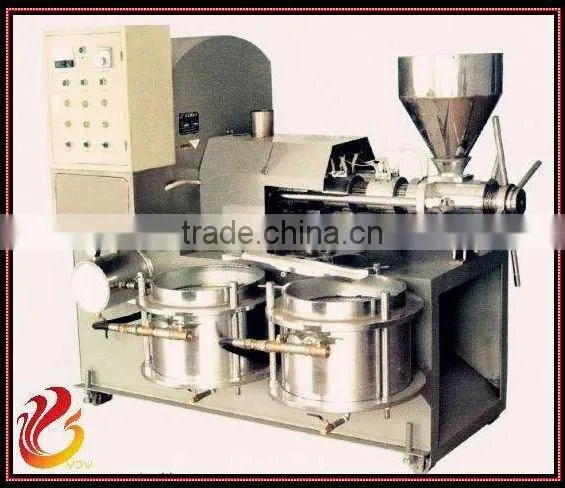

(Fresh and Heated Double-duty) Combine Oil Press
- 100 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | YJY |
Model Number: | DLZ-1685 |
Product Description
Specifications
1.High oil output rate2.Press many oil seeds
3.Can press either fresh or cooked oil seeds
4.ISO9001:2008&CE
Advantages of screw oil press
1. Our oil presses can be used to press many kinds of oil seeds, such as peanut, soybean, sesame, cotton seeds, sunflower seeds, rapeseeds, flax seed, camellia, cotton seed, ect.
2. The oil output rate can be as high as 35% - 50% according to different oil seeds. The oil is of superior quality if treated properly.
3. The oil residual in cake is much lower, only about 5%.
4. It is easy to operate and maintenance, so it can save you labor cost.
5. The energy consumption is much less than most oil presses in China, so it can save you production cost.
6. The machine is made of high quality alloy steel and stainless steel and other superior quality materials, so it is durable to use.
7. It only covers a mall area to place this machine, only 10-20 meters is enough. So it is much more convenient for home use.
Structure of oil press
Screw oil press is composed of feeder, gearbox, pressing cage, screw shaft and edible oil extraction machine stand etc.
Squeezing varieties of oil press
This series of machinery can be widely used to more than 20 kinds of easy and difficult plant oilseeds, such as peanuts, soybeans, rapeseed, cottonseed, sesame, olives, sunflowers, coconut, cocoa, seeds and so on. During pressing, it can be entirely squeezed one time except for some individual varieties.
Oil press technology parameters
model Technical parameter | DLZ-1685 | DLZ-1688 | DLZ-120 | |
Diameter of worm section | 80mm | 100mm | 120mm | |
Rotary speed of worm section | 46rounds/min | 46rounds/min | 45 rounds/min | |
Diameter of inscribed circle of press boring | 82mm | 102mm | 122mm | |
Equipped force | Main frame | Y132-6-5.5KW | Y132M6-7.5KW | Y132L-11KW |
Vacuum pump | 2X-4-0.55KW | 2X-8A-1.1KW | 1.1KW | |
heater | 3KW | 3.5KW | 4KW | |
Capacity | 80-150kg/h | 150-250kg/h | 230-500kg/h | |
Weight | 780kg | 1100kg | 1500kg | |
Overall dimension (L*W*H) | 1800*1300*1750 | 1980*1450*1800 | 2300*1700*1800 |
Oil press performance parameters
Item | sesame | peanut | rapeseed | Sunflower seed | soybean | cottonseed | walnut | flax | Mountain Tea Seed |
oil production rate(%) | 45-55 | 40-50 | 30-45 | 32-42 | 12-18 | 11-25 | 42-52 | 32-38 | 26-38 |
Thickness of cake(mm) | 1.0-1.5 | 0.5-2.0 | 0.8-1.8 | 1.0-1.5 | 0.8-1.5 | 1.0-2.0 | 0.8-1.5 | 1.0-1.8 | 1.0-2.0 |
Oil remain in dry cake(%) | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 |
