Specifications
1.High oil output rate2.Press many oil seeds
3.High equipment quality
4.ISO9001:2008&CE
5.Long durablity

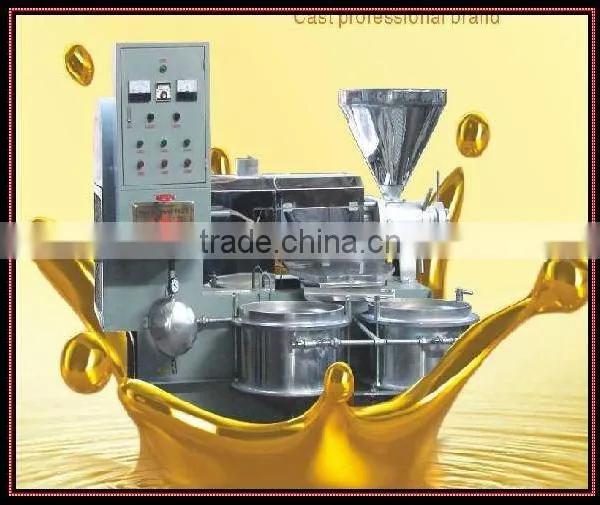

Introduction:
The screw oil press is the introduction of technologies and South Korea and China Cereals, Oils & Food Research Institute of Agricultural Mechanization Research Institute developed a new generation of energy-efficient oil extraction equipment, in line with the Ministry of Agriculture Agricultural screw press technical conditions and standards requirements, its processing oil production of genuine, pure fidelity, is to create a "modern oil mill," the best choice.
Features for screw oil press:
Energy Conservation ---- An equal decrease in the production of electric power 40%, saving an average of 6 kilowatt-hour basis, daily production could be 30 Yuan to save electricity.
Save Labor---- 1~2 operators , Save labor about 60%
Wide usage---- multi-purpose machine,used in peanut,sesame,soy,grease,benne etc. 3 squeeze, a squeeze in net
Pure oily ---- Vacuum filtration residue to protect the purity of the oil quality in line with health and quarantine standards.
Technical parameters
model Technical parameter | 6YZ-80(1685) | 6YZ-100(1688) | 6YZ-150(D1698) | |
Diameter of worm section | 80mm | 100mm | 150mm | |
Rotary speed of worm section | 50-60rounds/min | 40rounds/min | 45 rounds/min | |
Diameter of inscribed circle of press boring | 82mm | 102mm | 152mm | |
Equipped force | Main frame | Y132-6-5.5KW | Y132M6-7.5KW | Y160L-4 15KW |
Vacuum pump | Y80-4-0.55KW | Y801-4-1.1KW | Y905-4 1.1KW | |
heater | 3KW | 3.5KW | 6KW | |
Capacity | 80-150kg/h | 150-250kg/h | 230-500kg/h | |
Weight | 780kg | 1100kg | 1800kg | |
Overall dimension (L*W*H) | 1800*1300*1750 | 1980*1450*1800 | 2300*1700*1800 | |
Performance of oil expression
Oil material | Oil press rate (%) | Thickness of the material slag | Residual oil ratio (%) |
sesame | 42-55 | 1.0-1.5 | ≤7 |
peanut | 40-50 | 0.8-2 | ≤8 |
rapeseed | 28-43 | 1.0-1.5 | ≤8 |
Sunflower seeds | 30-40 | 1.2-1.5 | ≤8 |
Soy bean | 10-16 | 0.8-1.5 | ≤7 |
