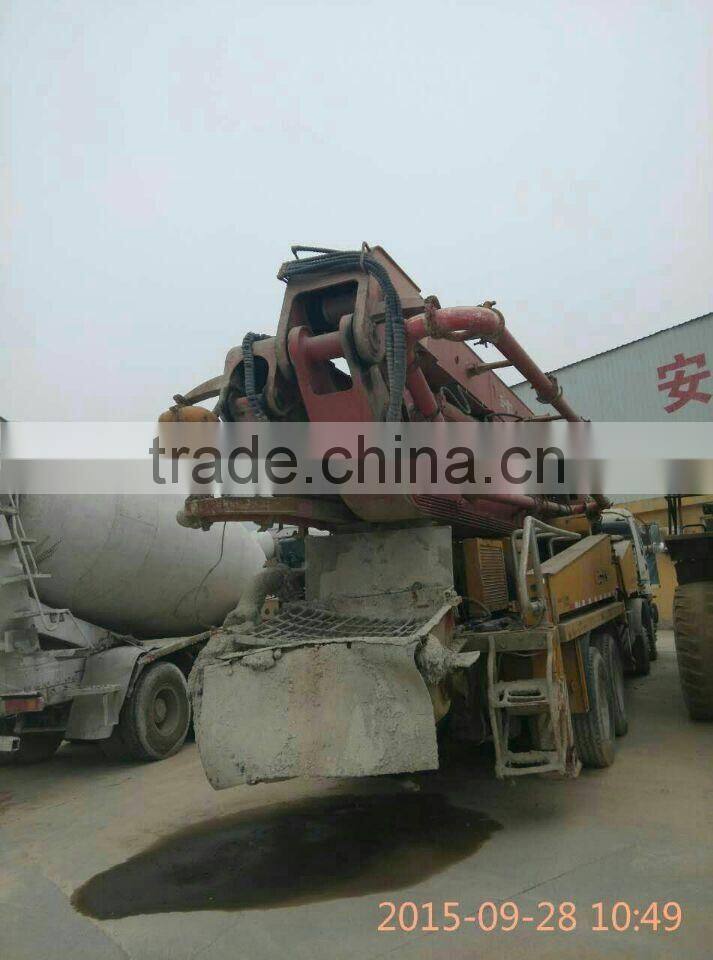

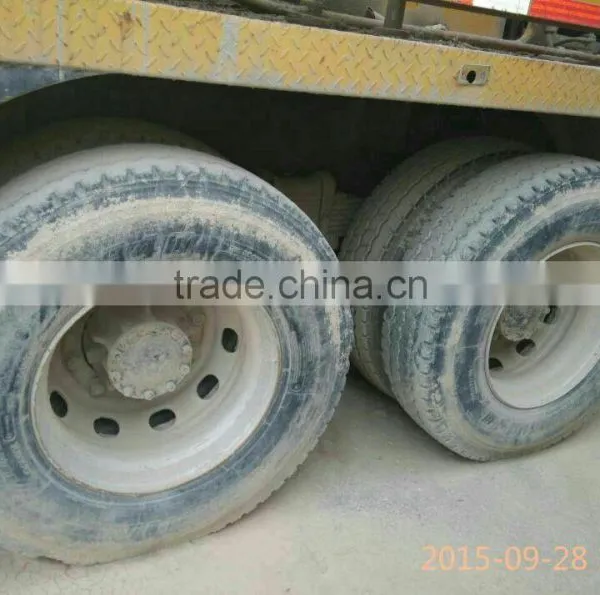

46m ISUZU SANY cheap price used concrete pump truck original for sale
Length | 11520mm |
Width | 2500mm |
Height | 3990mm |
Dead weight | 32800kg |
II. SPECIFICATIONS
i: OVERALL
46M Truck-mounted Concrete Pump | ||
Overall specifications | Model | SY5313THB 46 |
Length | 11520mm | |
Width | 2500mm | |
Height | 3990mm | |

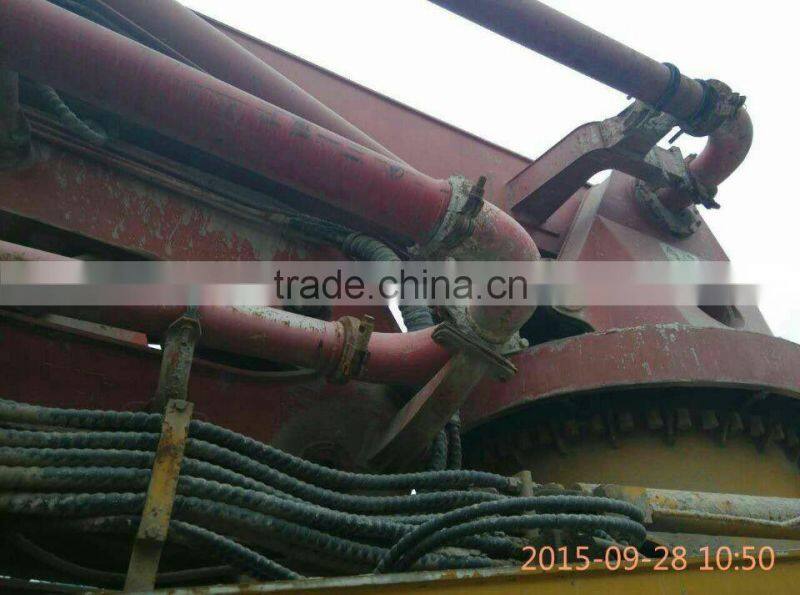

ii Boom&outrigger specifications
Boom&outrigger specifications | Dead weight | 32800kg | |
Vertical reach | 46.0m | ||
Horizontal reach | 41m | ||
Reach depth | 28.8m | ||
Unfolding reach | 13.4m | ||
1st section | Length | 9255mm | |
Articulation | 90° | ||
2nd section | Length | 7060mm | |
Articulation | 180° | ||
3rd section | Length | 6890mm | |
Articulation | 180° | ||
4th section
| Length | 9220mm | |
| Articulation | 240° | |
5th section | Length | 9580mm | |
| Articulation | 240° | |
Rotation |
| 360° | |
Outrigger spread L-R-Front |
| 8820mm | |
Outrigger spread L-R-Rear |
| 85400mm | |
iii : Pump specifications
Pump specifications | Output | Low-pressure | 170m3/h(131yd3/h) |
High-pressure | 120m3/h(78yd3/h) | ||
Pressure | Low-pressure | 8.3Mpa(1160psi) | |
High-pressure | 12Mpa(2320psi) | ||
Max.strokes per Minute | Low-pressure | 26 | |
High-pressure | 18 | ||
Delivery cylinder diameter | 260mm | ||
Stroke length | 2000mm | ||
Hydraulic system | Open loop | ||
Hydraulic system oil pressure | 32Mpa(4640psi) | ||
Water tank capacity | 600L(158gal) | ||
Pipeline size | 125mm | ||
End hose length | 3m | ||
End hose diameter | 125mm | ||

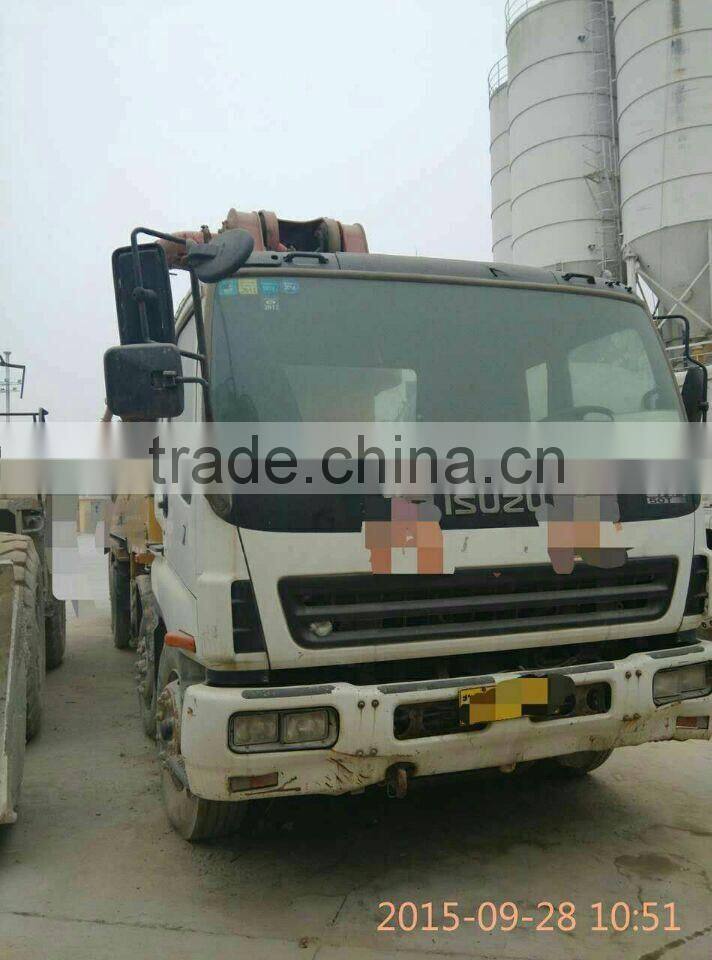

iv: Chassis specifications
Chassis specifications | Chassis model | ISUZU CYZ51Q |
Engine type | 6WF1A ISUZU | |
Engine power | 265KW/1800rpm | |
(360HP/1800rpm) | ||
Emission standard | EURIII | |
Capacity of fuel tank | 380L(100gal) | |
Displacement | 14.256L(3.8gal) | |
Max speed | 80km/h(50mile/h) | |
Brake distance | <=10m/30km/h | |
| (<=32' 10''/19mile/h) |
