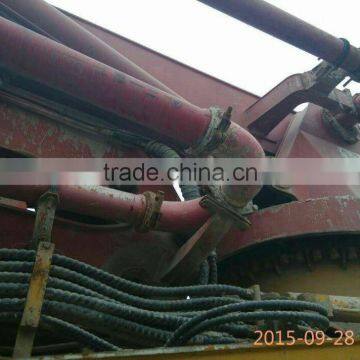

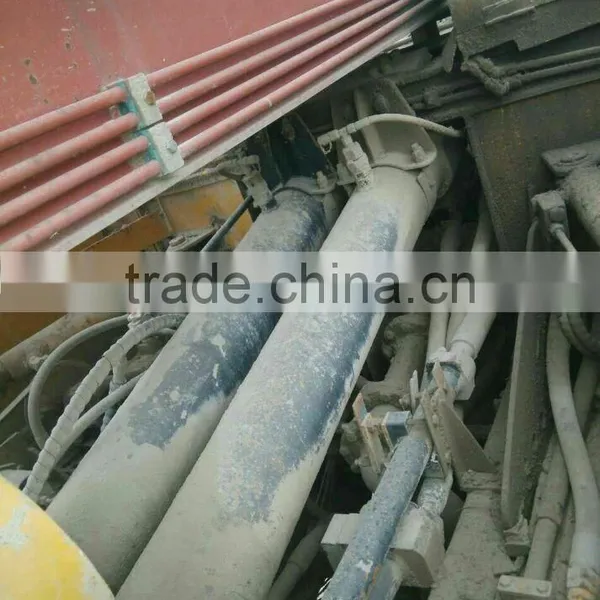

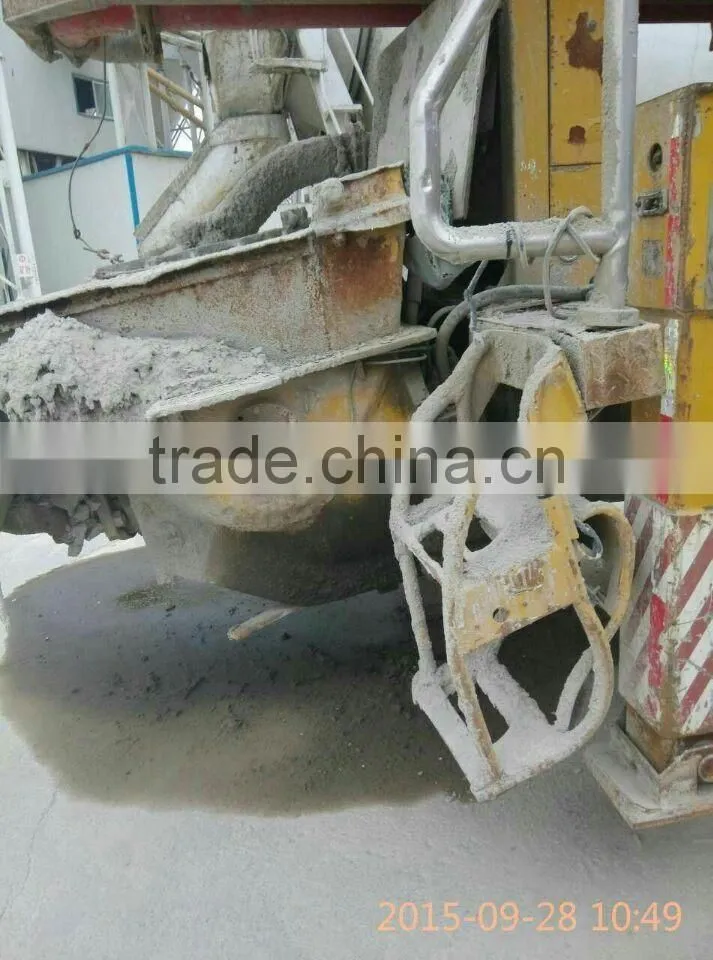

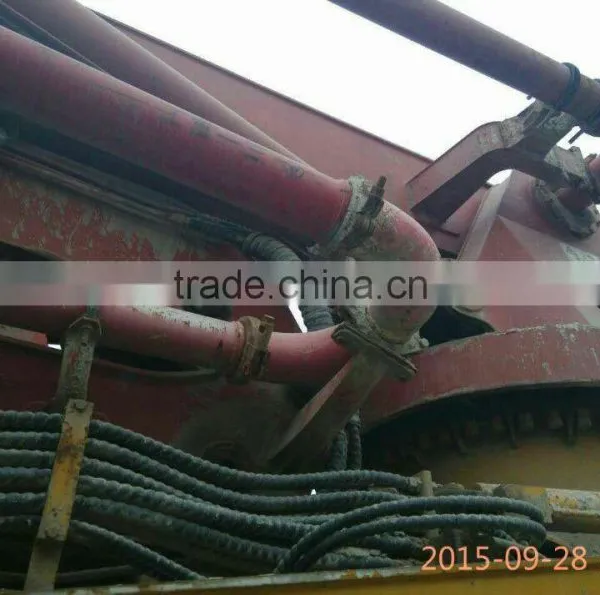

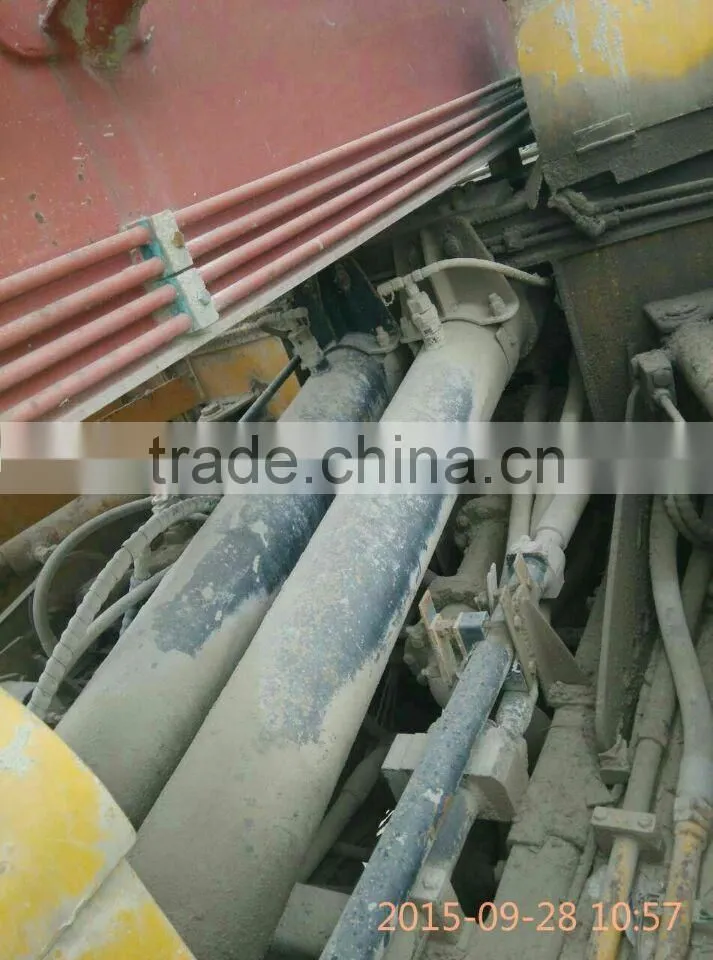

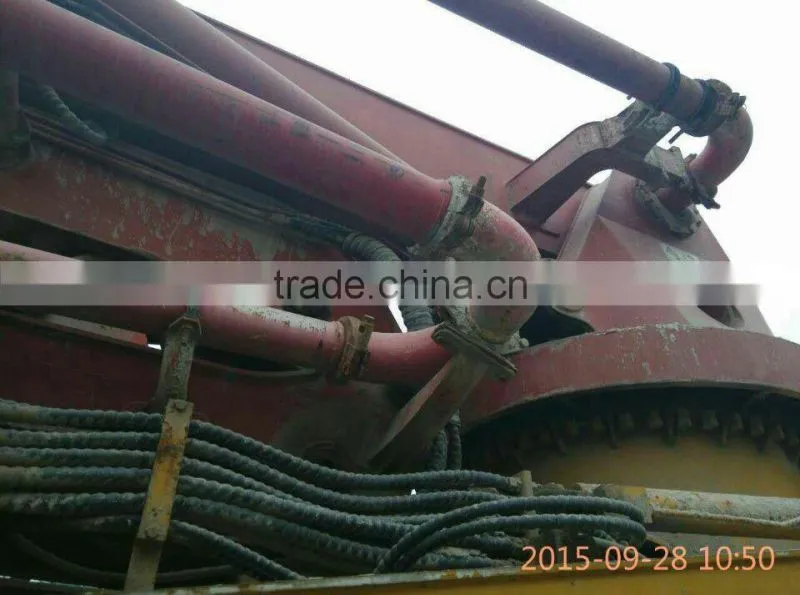

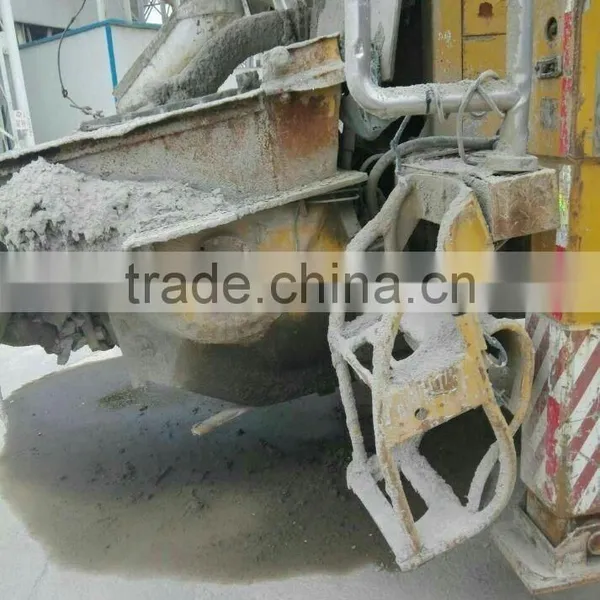

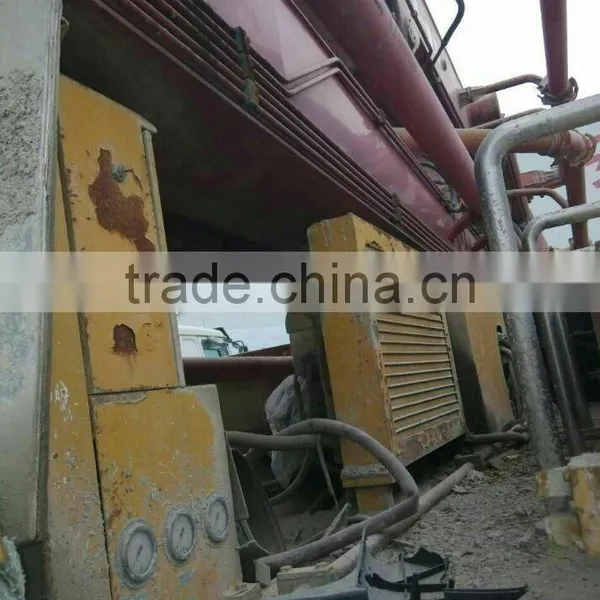

Used SANY ISUZU Concrete Pump 46m Used Concrete Boom Pump Truck

Name: Used SANY ISUZU Concrete Pump 46m Used Concrete Boom Pump Truck
Brand: SANY
SKU: 141413952
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

Used

Year:

2006

Power Type:

Diesel

Zhengzhou Yijiayi Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Year 2006

Power Type Diesel

Brand Name SANY

Model Number SANY

Power(W) 265 kw

Weight 37805kg

Dimension(L*W*H) 12665x2500x3990 m

Certification CE BV

Warranty BL Time

After-sales Service Provided No overseas service provided

46m ISUZU SANY cheap price used concrete pump truck original for sale

II. SPECIFICATIONS

i: OVERALL

46M Truck-mounted Concrete Pump
Overall specifications	Model	SY5313THB 46
	Length	11520mm
	Width	2500mm
	Height	3990mm

ii Boom&outrigger specifications

Boom&outrigger specifications	Dead weight		32800kg
	Vertical reach		46.0m
	Horizontal reach		41m
	Reach depth		28.8m
	Unfolding reach		13.4m
	1st section	Length	9255mm
	1st section	Articulation	90°
	2nd section	Length	7060mm
	2nd section	Articulation	180°
	3rd section	Length	6890mm
	3rd section	Articulation	180°
	4th section	Length	9220mm
		Articulation	240°
	5th section	Length	9580mm
		Articulation	240°
	Rotation		360°
	Outrigger spread L-R-Front		8820mm
	Outrigger spread L-R-Rear		85400mm

iii : Pump specifications

Pump specifications	Output	Low-pressure	170m3/h(131yd3/h)
		High-pressure	120m3/h(78yd3/h)
	Pressure	Low-pressure	8.3Mpa(1160psi)
		High-pressure	12Mpa(2320psi)
	Max.strokes per Minute	Low-pressure	26
		High-pressure	18
	Delivery cylinder diameter	260mm
	Stroke length	2000mm
	Hydraulic system	Open loop
	Hydraulic system oil pressure	32Mpa(4640psi)
	Water tank capacity	600L(158gal)
	Pipeline size	125mm
	End hose length	3m
	End hose diameter	125mm

iv: Chassis specifications
