Specifications
1.Full automatic control2.High efficiency
3.Item : 25m3/h-360m3/h
4.Variable location friendly design
5.ISO9001:2008 and CE

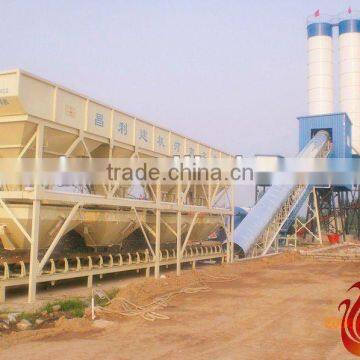

Introductions of concrete batching plants
Concrete mixing plants series HZS are second-order automatic or semi-automatic concrete complete sets of equipments. One concrete mixing plant is made up of mixing system, batching system, electric control system, storage silo, powder conveyer screw, etc. They can be used for large and medium-sized building sites, prefabricated factories, concrete manufacturers, etc. They can be divided into simple (centralized control) and standard according to different electric control system.
Features of concrete batching plants
The mixing console is double-horizontal-shaft forced type, good mixing quality and efficient.
Combined structure. It is easy to be moved. Complete engine set installation
The mortar aggregate, powder, liquid aggregate are measured by electronic balance, so the batching precision is high.
The electrical control system adopted imported electronic components. They have reliable performance. It is convenient to operate.
Specifications concrete batching plants
Model | HZS40 | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | |
Production in theory | 40 | 50 | 75 | 100 | 150 | 200 | |
Mixing engine | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | |
Measuring scope and precision | Aggregate(kg) | 2000±2% | 2500±2% | 3500±2% | 4500±2% | 6500±2% | 9000±2% |
Cement(kg) | 600±1% | 800±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
Mingled materials(kg) | 600±1% | 800±1% | 500±1% | 600±1% | 900±1% | 1200±1% | |
Water(kg) | 200±1% | 300±1% | 400±1% | 500±1% | 800±1% | 1000±1% | |
Additives(kg) | 20±1% | 30±1% | 30±1% | 50±1% | 80±1% | 100±1% | |
Distributing plant | PL1200 | PL1600 | PL2400 | PL3200 | PL4800 | PL6400 | |
Powder tank system | Powder tank volume and quantity,and configuration of powder tank accessories varying with customersdemands. | ||||||
General power(kw) | 65 | 80 | 105 | 125 | 175 | 220 | |
Discharging height(m) | 2.8/3.8 | 2.8/3.8 | 2.8/3.8 | 2.8/3.8 | 2.8/3.8 | 2.8/3.8 | |
Note: The above technical parameters are just for your reference.
