Specifications

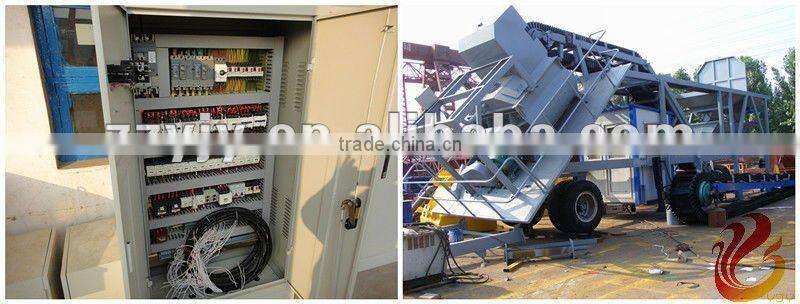

1.ISO9001:2008&CE2.Advanced Electric Control
3.Accurate Weighing System
4.Easy to move
5.Perfect Maintence System

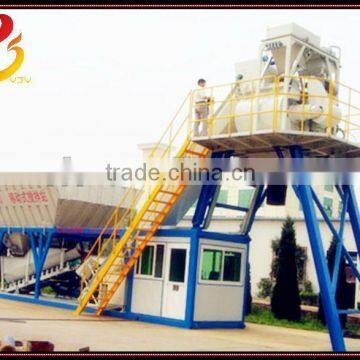

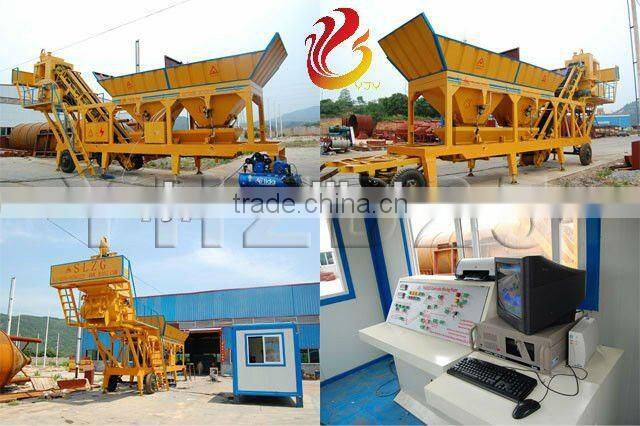

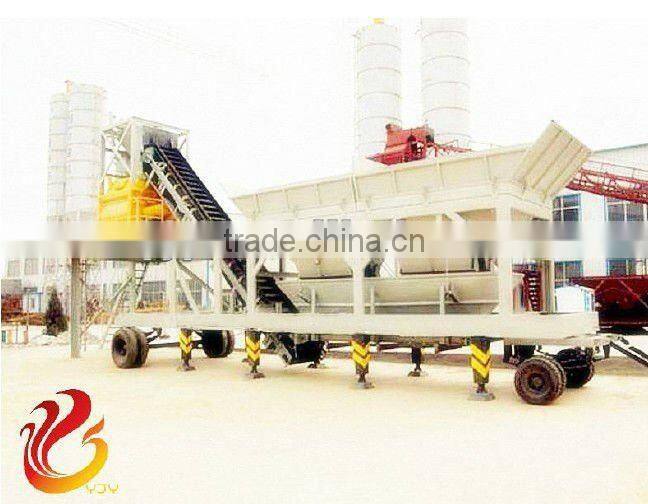

Feature of YHZS75 Mobile Concrete Batching Plant

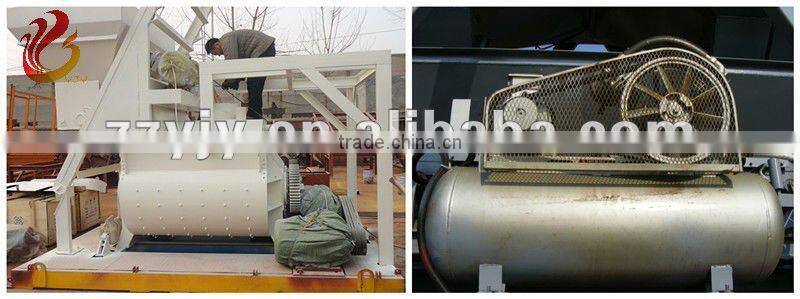

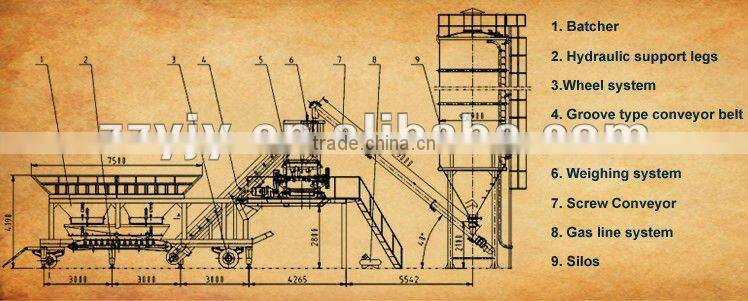

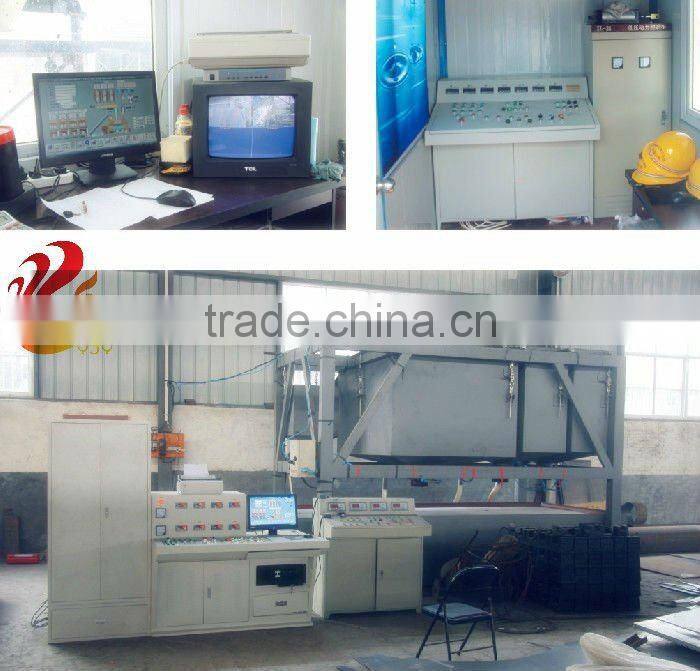

YHZS75 mobile concrete batching plant has the following features: compact structure, combine various functions of aggregate dosing,weighing,mixing into a trailer unit; easy operation of human-machine interface, reliable working function, suitable for various bad environment; the whole design meets the requirement of environmental protection, excellent mobility; use once(twice) horizontal shaft mixer, strong continuous working ability, uniform and fast mixing ,high yield and applicable to construction projects of higher concrete demand.
Use of YHZS75 Mobile Concrete Batching Plant
YHZS75 mobile concrete batching plant is mainly used for mixing road paving concrete, roadbed concrete, road rolling concrete and prefabricated concrete, such as highway,city road ,airfield construction. It also can mix ready-mixed concrete for construction.
Parameter of YHZS75 Mobile Concrete Batching Plant
Model | YHZS25 | YHZS40 | YHZS50 | YHZS75 |
Production rate m3/h | 25 | 40 | 50 | 75 |
Matching stirring mill | JS500 | JS750 | JS1000 | JS1500 |
Storage bin capacity m3 | 2×4 | 2×4 | 2×5 | 2×5 |
Aggregate measuring accuracy % | ±2 | ±2 | ±2 | ±2 |
Cement measuring accuracy % | ±1 | ±1 | ±1 | ±1 |
Water measuring accuracy % | ±1 | ±1 | ±1 | ±1 |
Fly ash measuring accuracy % | ±1 | ±1 | ±1 | ±1 |
Additive measuring accuracy % | ±1 | ±1 | ±1 | ±1 |
Trail Speed | 15km/h | 15km/h | 15km/h | 15km/h |
Wheelbase (outside) | 2,800mm | 2,800mm | 2,800mm | 2,800mm |
Note: The above technical parameters are just for your reference.
