Specifications
1.ISO9001:2008&CE2.Advanced electric control system
3.Special design sealing modes
4.Single mixing axle

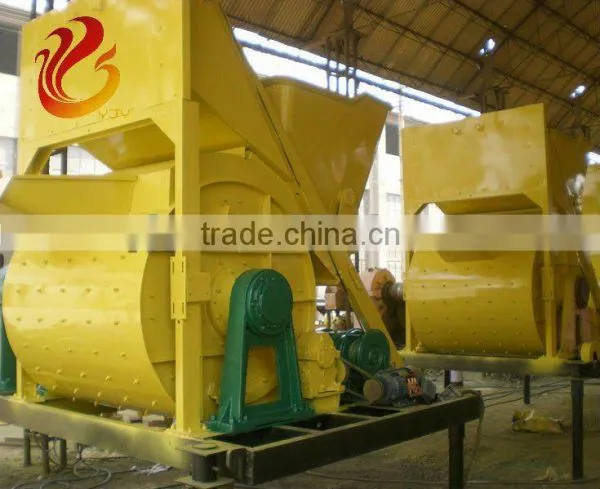

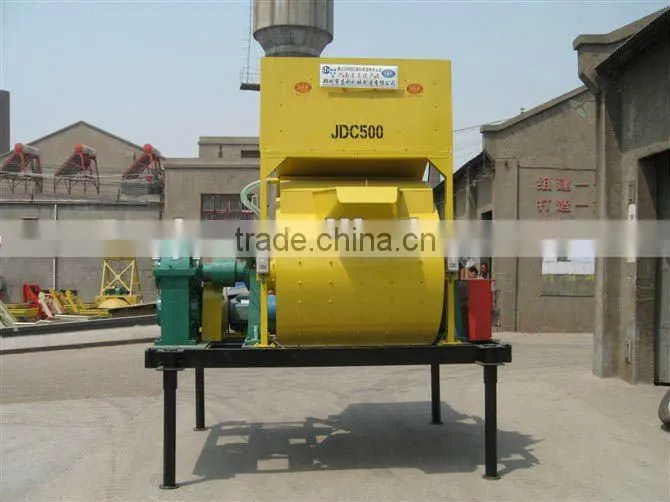

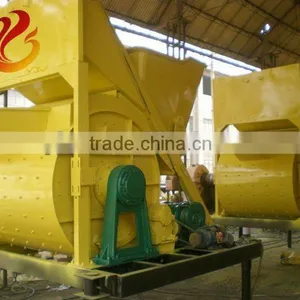

JDC mixer for concrete
JDC is single shaft compulsory concrete mixer, which can be used for mixing of liquidity concrete, plasticity concrete, lightweight aggregate concrete and various mortars. It functions well specially when it is combined with 1 ton diesel dumper. This type is widely used in small l& middle sized construction site, which is convenient to move.
- Reasonable design, compact structure, easy to handle, reliable quality.
- Superior mixing effect, high productivity, low noise, long use life of blades and liner plate, convenient for maintain.
Specifications
Model | JDC350 | JDC500 |
Discharge Capacity | 350L | 500L |
Feeding Capacity | 560L | 800L |
Productivity | 17.5m3/h | 25-30m3/h |
Max particle size of aggregate | 80/60mm | 80/60mm |
Speed of mixer shaft | 27.6r/min | 27.6r/min |
Power of whole machine | 15kw | 18.5kw |
Time of mixing | 30s | 30s |
Power of hoist brake motor | 4.5kw | 5.5kw |
Power of water pump | 0.75kw | 0.75kw |
Dimension | 3100×2450×3200mm | 3800×2550×3400mm |
Total weight | 2530kg | 3700kg |
Note: The above technical parameters are just for your reference.
