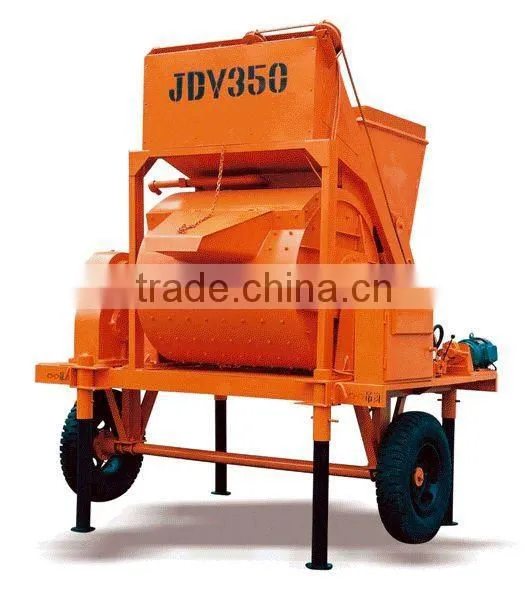

Self loading JDC concrete mixer

Specifications

1.ISO9001:2008&CE
2.Advanced electric control system
3.Best price with best service
4.Single mixing axle

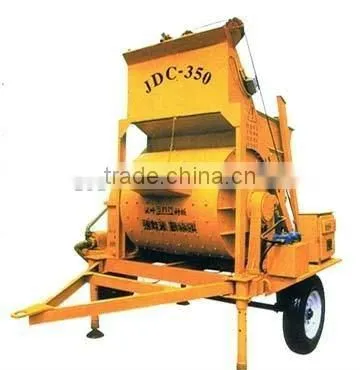

JDC mixer for concrete

JDC is single shaft compulsory concrete mixer, which can be used for mixing of liquidity concrete, plasticity concrete, lightweight aggregate concrete and various mortars. It functions well specially when it is combined with 1 ton diesel dumper. This type is widely used in small l& middle sized construction site, which is convenient to move.



1. Reasonable design, compact structure, easy to handle, reliable quality.
2. Superior mixing effect, high productivity, low noise, long use life of blades and liner plate, convenient for maintain.



 Specifications

Model	JDC350	JDC500
Discharge Capacity	350L	500L
Feeding Capacity	560L	800L
Productivity	17.5m3/h	25-30m3/h
Max particle size of aggregate	80/60mm	80/60mm
Speed of mixer shaft	27.6r/min	27.6r/min
Power of whole machine	15kw	18.5kw
Time of mixing	30s	30s
Power of hoist brake motor	4.5kw	5.5kw
Power of water pump	0.75kw	0.75kw
Dimension	3100×2450×3200mm	3800×2550×3400mm
Total weight	2530kg	3700kg

  Note: The above technical parameters are just for your reference.
