High Silicon Iron Anode/Si-Fe Solid Rods Anodes

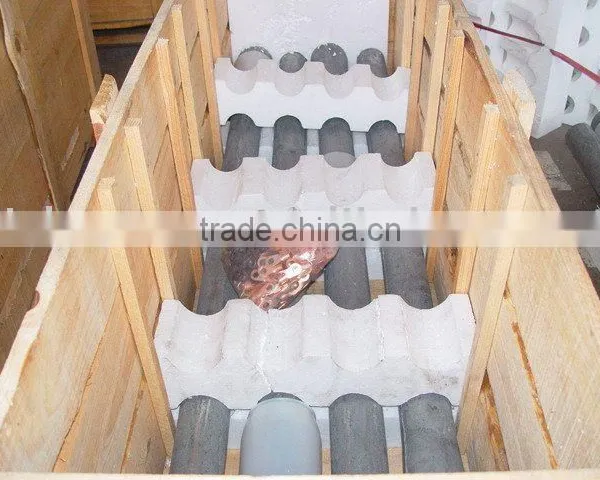

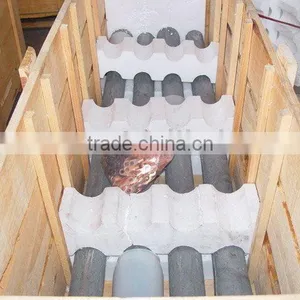

High Silicon Iron Anode/Si-Fe Solid Rods Anodes photo-1
US$ 10 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Jiahe
Model Number:
HSI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Seaport
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Jiahe
Model Number HSI
Application cathodic protection, Impressed Current Cathodic Protection
Material Iron
Dimensions HSI

Specifications

High silicon iron anodes,the benefits of high silicon cast iron anodes are their low price and they can last a long time

High Silicon Iron Anode is used for impressed current cathodic protection as auxiliary anodes.



Si-Fe anodes are widely used in impressed current cathodic peotection od offshore structures, underground pipelines, buried cable and so on. It is a kind of idea anode, as it has the character of low resistance, low consumption and low energy consumption. Our Si-Fe anodes are made according to ASTM A518-86 (grade 3) atandard, supplying in difference shapes:Rod Anode and Tube Anode.



High silicon cast iron anodes......solid rods

Dimension mm

Weight kg

Dimension mm

Weight kg

Dia25X300

1.5

75X900

34

38X900

7.5

75X1200

40

38X1200

10

75X1500

48

38X1500

13

100X900



50X900

13.5

100X1200



50X1200

16.5

100X1500



50X1500

20.5

115X1500



65X900





65X1200





65X1500





High Silicon Cast Iron anodes......tubes

Outside Diameter

Wall thickness

Length

Weight

58mm

10mm

2133mm



75mm

10mm

1500mm

23kg

95mm

10mm

2133mm

kg

100mm

10mm

1500mm

39kg

100mm

10mm

2000mm

kg

121mm

10mm

2133mm

kg

150mm



2500mm
