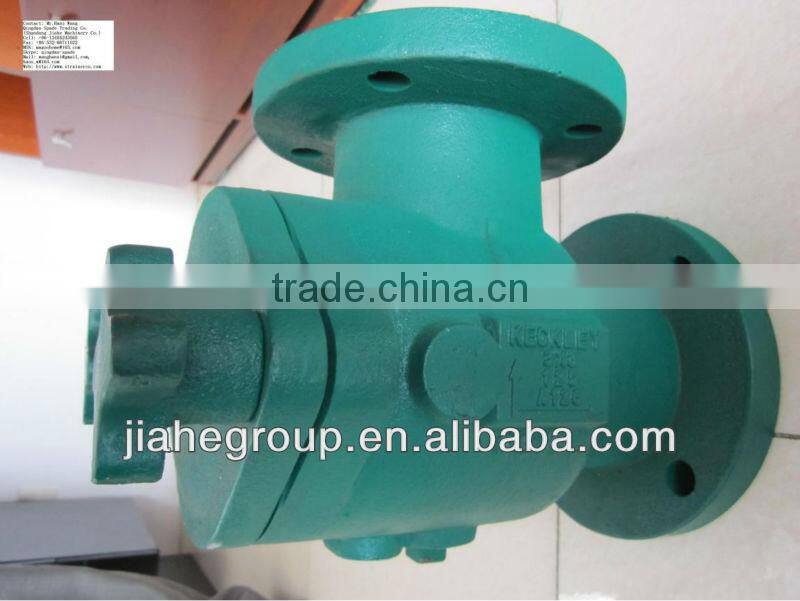

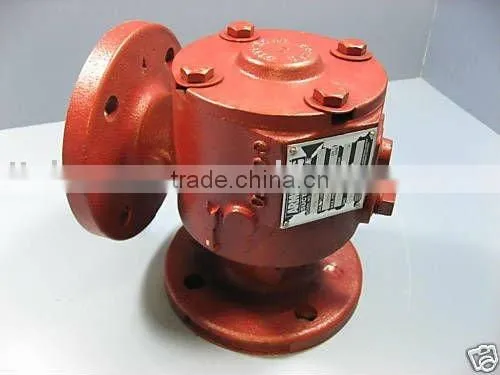

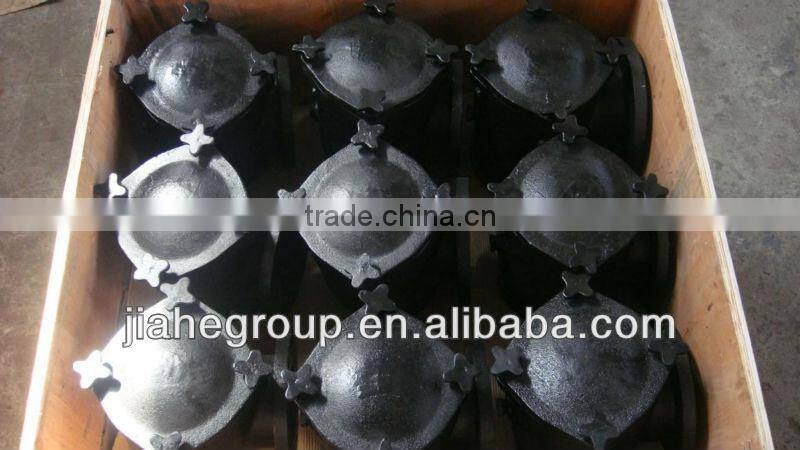

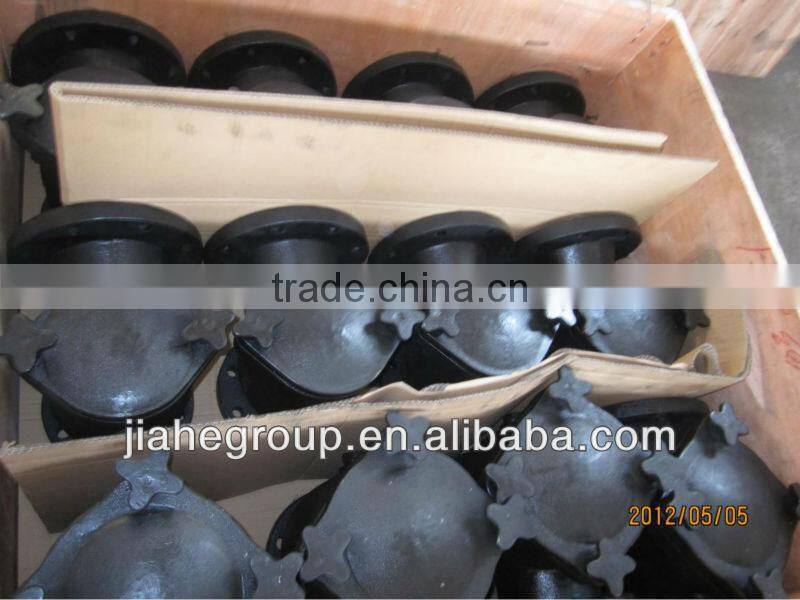

Pump Suction Guide

APPLICATIONS

The Style PSD mounts to the suction side of a pump in either ahorizontal or vertical position. It is designed to remove any foreign matterthat may be hazardous to the pump or other system components, whileproviding the proper flow conditions to the pump. Where space is limited,the Style PSD can be used as an elbow (in some cases a reducingelbow) with a built in strainer for easy maintenance and systemperformance.

CONSTRUCTION

The Style PSD Suction Diffusers are constructed from ruggedcast iron castings that are machined to exacting specifications. Thesebodies have drilled flanges that are in accordance with ASME B16.1.

FEATURES

• Reduces installation costs by replacing the strainer, elbow, andentry pipe on the suction side of the pump.

• Integral straightening vanes ensure uniform flow to the suctioninlet of the pump.

• Minimal pressure drop (Oversized body & screen).

• Perforated stainless steel screen with a 20 mesh stainless steelremovable start-up sleeve to help promote a cleaner moretrouble free system.

• Bolted cover plate with O-ring seal – standard.(Knobs available upon request).

• Cast supporting pads on the diffuser body offer easy mountingof standard I.D. support foot.

• Tapping for inlet and outlet differential connections – Optional.

• Drain connection with plug – standard.
