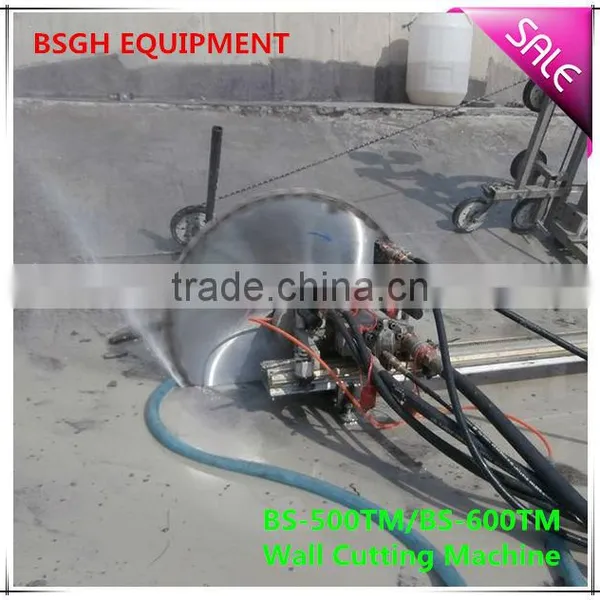

BS-600TM concrete beam cutter machine , stone rock cutting machine .

Specifications

BS-600TM concrete beam cutter :
1:portable and portable
2:max. cutting depth:73cm
3:remote control

concrete beam cutter

BS-500TM/600TM

Concrete wall road cutting machine

world famous & high quality

about our machine:

BS-500TM wall saw machine is widely used in mineral mining(cave mining) , civil engineering construction and demolition.  It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.



1) Powerful, it can split the stone or concrete easily.

2) High Efficiency, it can split the stone in 5-10 seconds.;

3) Long-life, the wedges stands wear and tear;

4) Easy to operate and maintain



technical details:

model	HWS-500TM	HWE-600TM
rated input	30HP(22KW)	34HP(25KW)
voltage	380V/400V,3-phase,50HZ	380V/400V,3-phase,50HZ
current	43A	48A
weight hydraulic power unit incl.oil	170kg	175kg
dimension of power unit	650*550*1000mm	650*550*1000mm
max.operating pressure	200bar	240bar
max starter blade	800mm	800mm
blade diameter range	800-1400mm	800-1600mm
max. cutting depth	620mm	730mm
weight of saw head	34kg	32kg
control type	hydraulic auto	hydraulic auto
blade rotational speed	900rpm	400/860/1200rpm



pictures for reference:

power unit:   blade:   saw head:       accessaries:  item unit item unit power unit 1 2M guide rail 1 oil hose(10m/unit) 7 end stop 4 power box with water proof plug 1 800mm wall saw blade 1 wall saw head 1 850mm blade guard 1 rail frame 4 toolbox 1 1M guide rail 1



project case:



one year warranty for our all products



payment terms:



1) 100% T/T in advance for amout less than



USD10000.00





2) 30% payment paid by T/T in advance and 70%



payment paid by T/T befor delivery for amout more



than USD10000.00



note:



All the listed price is only for references , for latest

price please contact us directly.
