BS-002 automatic wire stripping machine
1.Product introduce:
BS-002 cable conductor recycling machine electrical wire making machine has 7 inlets, it is apply to single core wires,multicore cables. This machine has the following specifications:
* Low power requirement
* Small dimensions
* Easy to move, place and install
* Easy and rapid maintenance
2.Technical Parameter:
| Model | BS-002 |
| Range | 2-40mm |
| weight | 69KGS |
| Mea | 540*410*500 |
| Power | 1.5KW |
| output | 200-1000KG/day |
3. How to use:
|
Instructions: 1.When machine connect with power, press the switch to turn off machine. 2.Second step is adjust the blades distance with adjusters to match cables diameters. 3.Finally Put cables into suitable feeding holes to processing. https://youtu.be/-wvKqHuSvkI https://youtu.be/hKd7ZFhQars https://youtu.be/oW8BRiRyt7I |

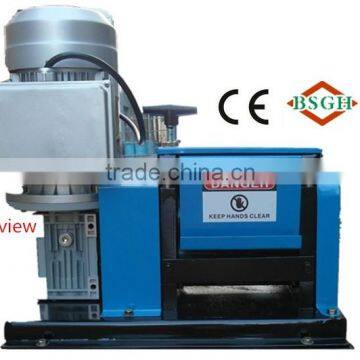

BS-002 photos:
Operating method:
Input the wires according the the feeding hole(the wires/cables should be corresponding with feeding hole). please check the machine rotating direction,u can operate when the direction rightly, or else change the connector direction.
1,Wheel adjuster 2,Blades adjuster
A:Diameter 2-5mm cables/wires’ feeding hole
B:Diameter 5-10mm cables/wires’ feeding hole
C:Diameter 10-15mm cables/wires’ feeding hole
D:Diameter 15-20mm cables/wires’ feeding hole
E:Diameter 20-25mm cables/wires’ feeding hole
F:Diameter 25-30mm cables/wires’ feeding hole
G:Diameter 30-40mm cables/wires’ feeding hole
Make sure the cables/wires’diameter are similar with the feeding
holes ,large cables/wires in large feeding holes,small cables/wires
in small feeding holes,flat Cables/wires in flat feeding holes.
1)Outter Package: plywood case standard export carton.
2)Ship by express,air,via sea according to order quantity.
|
XI'AN Grand Harvest Equipment Co., Ltd. is speislized in producing various of recycling equipments, including cable recycling machines, such as cable stripping machines and electric wire cable granulator machines, and other recycling machinery, like radiator recycling, washer dynamo recycling or other compressors. Our company aims at provide the most superior service for clients, serve the higest quality products to customers. we have many years' experience in recycling machine field, and we always insist on the realize of environmental to develop our business. we have been more than four years experience abou foreign trade in Alibaba international website. At the same time, we have accumulated many superior quality customers from all over the world and we will always hold on in this way to serve customers and reback society. |
