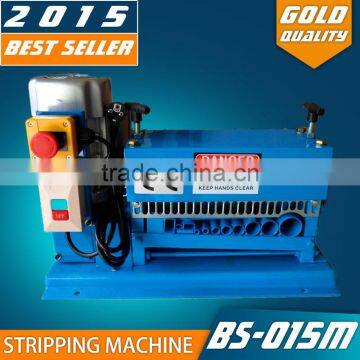

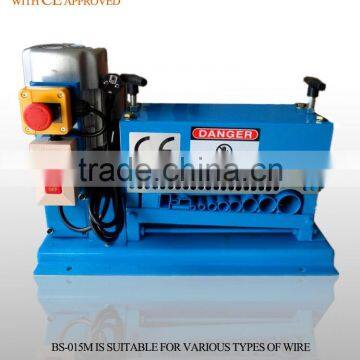

BS-015M metal cable peeling machine stripper machine
1.Product introduce:
Suitable for a variety of wire. Wire stripping range:1.5~38mm with outer plastic, metal, aluminum, armour cable.
FUNCTION: frame dual blades principal, can process different diameter cable, easy to operate and durable.
2.Technical Parameter:
| Products name: | Wire granulator machine |
| Model | BS-015M |
| Processing range | 1.5-38mm |
| Separation rate | 99% |
| Meas.: | 620X290X370mm |
| Weight: | 38.5kg |
| Warranty | 12 month |
3.Our advantage:
4. How to use:
|
Instructions: 1.When machine connect with power, press the switch to turn off machine. 2.Second step is adjust the blades distance with adjusters to match cables diameters. 3.Finally Put cables into suitable feeding holes to processing. |
♦Operated instructions:
A:Flat cables/wires feeding hole
B:Diameter 1.5-6.0mm cables/wires’ feeding hole
C:Diameter 6.0-9.0mm cables/wires’ feeding hole
D:Diameter 9.0-13.0mm cables/wires’ feeding hole
E:Diameter 13.0-16.0mm cables/wires’ feeding hole
F:Diameter 16.0-19.0mm cables/wires’ feeding hole
G:Diameter 19.0-24.0mm cables/wires’ feeding hole
H:Diameter 24.0-28.0mm cables/wires’ feeding hole
I:Diameter 28.0-38.0mm cables/wires’ feeding hole
♦Notices:
Make sure the cables/wires’diameter are similar with the feeding holes ,large cables/wires in large feeding holes,small cables/wires in small feeding holes,flat cables/wires in flat feeding holes.
|
XI'AN Grand Harvest Equipment Co., Ltd. is speislized in producing various of recycling equipments, including cable recycling machines, such as cable stripping machines and electric wire cable granulator machines, and other recycling machinery, like radiator recycling, washer dynamo recycling or other compressors. Our company aims at provide the most superior service for clients, serve the higest quality products to customers. we have many years' experience in recycling machine field, and we always insist on the realize of environmental to develop our business. we have been more than four years experience abou foreign trade in Alibaba international website. At the same time, we have accumulated many superior quality customers from all over the world and we will always hold on in this way to serve customers and reback society. |
