2014 Hot Sell Automatic Wheat Flour Machine Price

Specifications

20T-2000T pre day wheat flour milling machines

The flour milling plant fits for the production of tailored flour and all-purpose flour. The finished flour is  usually used to produce bread, biscuit, spaghetti, instant noodle, etc

We can supply turkey project of 20-2000T/D flour milling processing line, with excently quality, competieve price and best after-sales service.

 Processing line

1. Raw wheat storage(silo or warehouse)

2. Cleaning system(sifter, destoner, magnetic separation, scourer)

Clean up the middle and small impuritier from wheat, dust, stone, magnetic

materials.Including beating, screening, destoning, magnetic separatation and

dampening.

This stage is to prepare wheat for being milled and to protect the machinery as well.

3. Milling system(roller mill, plansifter, purifier, impact detacher)

   (1) Mill: mill the wheat to break the integrity by the roller moving;

 (2) Sifter: separate flour from bran, also separate large, small size to enssure flour quality.

4. Flour compressing and blending system(if necessary)

5. Flour packing and stacking

The packing part can be manual or auto operation, which can be designed according to customer's requirement and machine capacity.

Cleaning part

Milling part

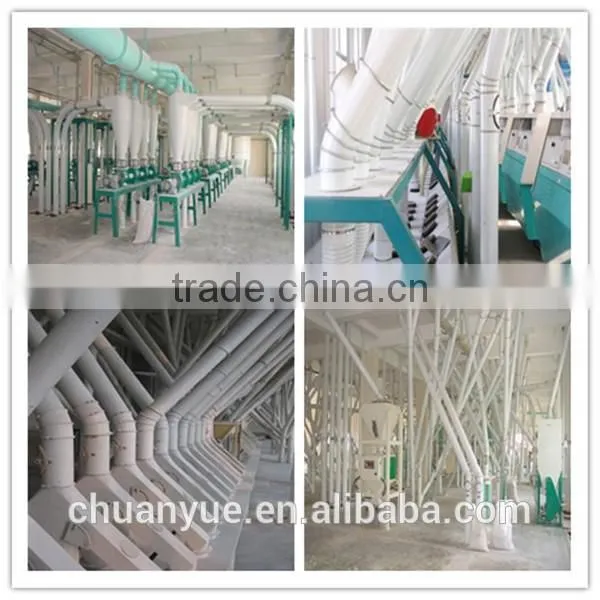

 Pipes

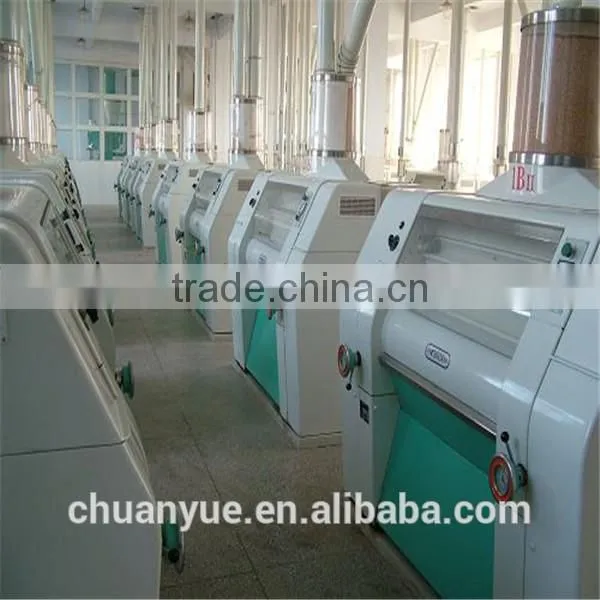

milling machine

Milling machines: through different speed roller broke and grind the material

Vibrating Separator

Vibrating Separator: separate course impurities contained in cereals during the pre-cleaning phase, such as straw particle, string, paper, pieces of wood, maize leaves and cobs etc.

Wheat scourer

Wheat scourer: clean the surface of the wheat, ensure that the play ash content of wheat finished points can reach to the standard.

Double bin plan sift

Double bin plan sift :sift and grading the material

High pressure fan

High pressure fan: offer wind force, wind pressure

♥  1. What should you do before buy a flour mill?
Before buy the flour mill, pls check the regulation of your local place to determine what permit and certificates you need. And what is the capacity you plan to buy?  And when send email for us, tell the detailed informations of your required flour mill parameters, such as the capacity (t/h), the local voltage etc and your buget. So we can give you the best products.

♥ 2. How to choose a flour mill?
Two of the features that affect prices are the material of the flour mill, the noise level and their adjustability. Generally, our turn-key project of flour mill is made of stainless steel, operate with low noise level, have lower heat production, generate less dust in the air.

♥ 3. Do you provide flour mill plant?
 Yes, we will give you our suggestion, but final decision is depend on you. For a flour mill with capacity less than 50T/D, the work shop is simple. Just design it by the dimension of product line. And above 50T/D flour mill plant, we will ask your requirement and advise accordingly.

♥  4. Quality Guarantee Terms of Flour Mill
Quality guarantee term is for one year. Any broken which are caused by machine-self and quality will be responsible for our manufacturer. Others which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

♥ We also ofeer the following grain production

20t/d - 2000t/d Series of corn product line (flour)

20t/d - 2000t/d  Series of Dual corn product line (Grits, flour)

20t/d - 2000t/d  Series of Multi corn product line (flour,grits,germ)

20t/d - 2000t/d Series of Dual corn product line (flour,germ)

20t/d - 2000t/d corn germ oil production line

20t/d - 2000t/d Wheat flour milling production line

20t/d - 2000t/d Whole wheat flour (with wheat bran) production line

5t/d   - 500t/d  buckwheat processing line

10t/d - 1000t/d  corn gluten flour production line

Henan Chuanyue Machinery Co.,Ltd is one of china most professional and honest grain processing equipment company.Our senior engineer has 17 years work experience and 70%domestic grain processing line is designed by our technicians and we are sure of offering you fittest technology with the most competitive prices.

I am lucky from Chuanyue machinery. If you need more technical information and exactly price, please contact with us freely.

Our professional technique team will give you the best service.

Give me a chance and we will give you a surprise!

Best regards

lucky yan
