China top brand automatic wheat mills for fine grade wheat flour

Specifications

1.PLC control system
2.Testing the machine before shipping
3.Our professional enigneer can design 20T/D to 2000T/D

30T to 2000T pre day wheat flour milling machines



♥ Brief introduction





♥ The Parameters of 30T/D wheat flour milling line



Production capacity	30T/24h
Total power	87.2kw
Plant dimension	16*7*7.5m
Power consumption per ton	less than 50kw
Finished flour rate	68-80%
Middle flour rate	3-5%
Bran rate	20-25%

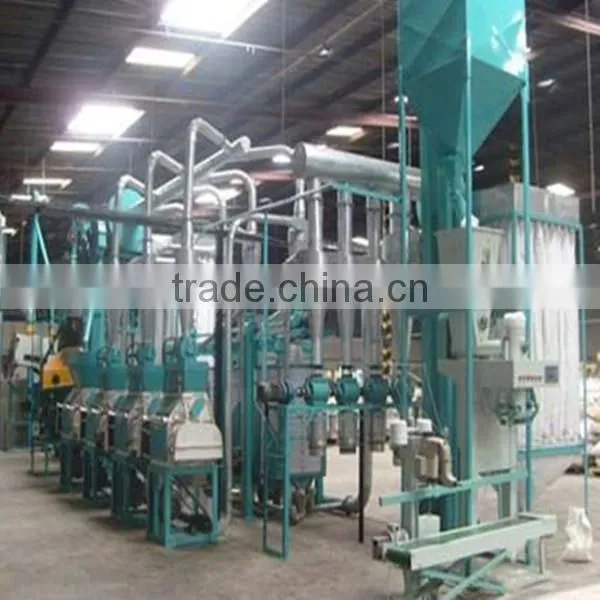

 ♥  Processing line







1. Raw wheat storage(silo or warehouse)

2. Cleaning system(sifter, destoner, magnetic separation, scourer)



Clean up the middle and small impuritier from wheat, dust, stone, magnetic materials.Including beating, screening, destoning, magnetic separatation and dampening.



This stage is to prepare wheat for being milled and to protect the machinery as well.



3. Milling system(roller mill, plansifter, purifier, impact detacher)

   (1) Mill: mill the wheat to break the integrity by the roller moving;



 (2) Sifter: separate flour from bran, also separate large, small size to enssure flour quality.



4. Flour compressing and blending system(if necessary)

5. Flour packing and stacking

The packing part can be manual or auto operation, which can be designed according to customer's requirement and machine capacity.



♥  Part real equipments display







Main machine

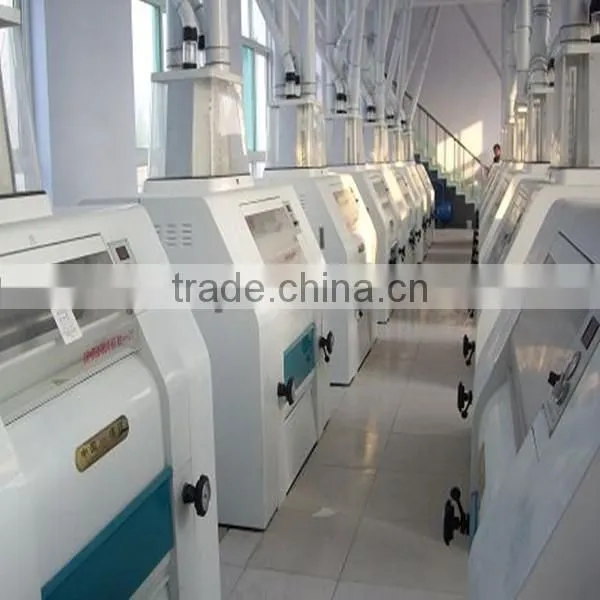

Milling machines: through different speed roller broke and grind the material



Vibrating Separator



Vibrating Separator: separate course impurities contained in cereals during the pre-cleaning phase, such as straw particle, string, paper, pieces of wood, maize leaves and cobs etc.



Washing machine

Washing machine: remove detritus and dust from grain. Also can adjust wheat moisture



Wheat scourer

Wheat scourer: clean the surface of the wheat, ensure that the play ash content of wheat finished points can reach to the standard.



Double bin plan sift

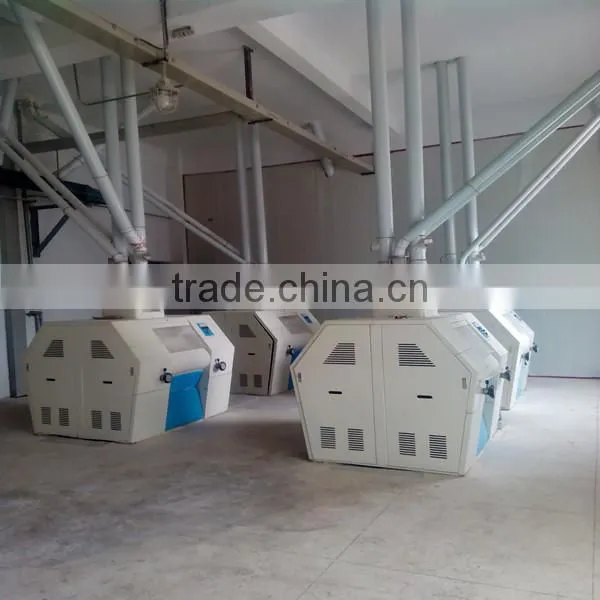

Double bin plan sift :sift and grading the material



High pressure fan



High pressure fan: offer wind force, wind pressure





♥  1. What should you do before buy a flour mill?
Before buy the flour mill, pls check the regulation of your local place to determine what permit and certificates you need. And what is the capacity you plan to buy?  And when send email for us, tell the detailed informations of your required flour mill parameters, such as the capacity (t/h), the local voltage etc and your buget. So we can give you the best products.



♥ 2. How to choose a flour mill?
Two of the features that affect prices are the material of the flour mill, the noise level and their adjustability. Generally, our turn-key project of flour mill is made of stainless steel, operate with low noise level, have lower heat production, generate less dust in the air.


♥ 3. Do you provide flour mill plant?
 Yes, we will give you our suggestion, but final decision is depend on you. For a flour mill with capacity less than 50T/D, the work shop is simple. Just design it by the dimension of product line. And above 50T/D flour mill plant, we will ask your requirement and advise accordingly.


♥  4. Quality Guarantee Terms of Flour Mill
Quality guarantee term is for one year. Any broken which are caused by machine-self and quality will be responsible for our manufacturer. Others which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.



♥ We also ofeer the following grain production

20t/d - 2000t/d Series of corn product line (flour)

20t/d - 2000t/d  Series of Dual corn product line (Grits, flour)

20t/d - 2000t/d  Series of Multi corn product line (flour,grits,germ)

20t/d - 2000t/d Series of Dual corn product line (flour,germ)

20t/d - 2000t/d corn germ oil production line

20t/d - 2000t/d Wheat flour milling production line

20t/d - 2000t/d Whole wheat flour (with wheat bran) production line

5t/d   - 500t/d  buckwheat processing line

10t/d - 1000t/d  corn gluten flour production line



Henan Chuanyue Machinery Co.,Ltd is one of china most professional and honest grain processing equipment company.Our senior engineer has 17 years work experience and 70%domestic grain processing line is designed by our technicians and we are sure of offering you fittest technology with the most competitive prices.



We provide a turnkey project of our machienry, including special design, installation, commissioning and training workers.



I am lucky from Chuanyue machinery. If you need more technical information and exactly price, please contact with us freely.



Our professional technique team will give you the best service.

Give me a chance and we will give you a surprise!
