CE and ISO approval home use maize processing machinery
Chuanyue Machinery Co.,Ltd is a professional manufacturer of all types of flour milling machine for wheat/maize/corn and rice, integrating development and production together.
Our products are exported to Belgium, Egypt, Algeria, Zambia, Kenya, Ethiopia, Uganda, Tanzania, Vietnam, and other countries.
We provide a turnkey project of our machienry, including special design, installation, commissioning,training workers and life-long after-sales service. All of our equipment
contain one year free spare parts,and Quality guarantee period of one year.
We provide standard and timely shipping wooden package, full set of equipments photos before
and after packing goods.also, full set of shipping documets sent by post .
We provide a comprehensive before-sales, sales and after-sales service for our clients. You can contact with our sales manager and techniciens anytime you need.
Brief introduction of 20TPD maize flour milling machine
This production line is employed for the hulling, gritting and milling of maize. After the
hulling treatment of the product, the net kernels were sent to the gritting and milling
chamber. Then through the process of crushing and grinding, high quality grits and flour
were produced.

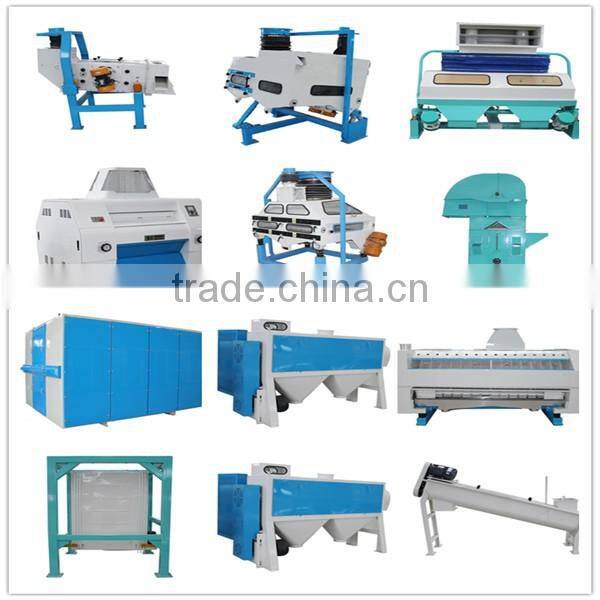

Main machine of 20TPD maize flour milling machine
Buckwheat elevator, high efficient vibrating sifter, gravity destoner, magnetic selector,
maize hulling machine, maize polishing machine, fine maize grits machine, milling machine,
square plantisifter, low and high pressure fan....
Characteristics of 20TPD maize flour milling machine
1. Simple structure and low investment, different configuration according
to clients'requirements
2. Our professional enginner has 17 years working experience
3.The core machines are developed by ourself, have national patent
4. Long lifetimedue to imported spare parts from Sweden, USA and Japan.
Parameters of output
Products: maize grits,flour,huskers;
Yields: maize flour 60%-80% ;
maize grits 50%-65%
maize huskers 25%-30%,
total output of maize grits and flour 80%-90%
Corn flour finess: 40-120 mesh (adjustable).
Technical Parameters of 20TPD maize milling machine
Capacity: 20t/d
Totaled power: 47.5kw
Machines' totaled weight: About 15t
Installation steel structure dimensions: 7*3*4.5m
Installation structure:
The line has simple structure, high adjustability for the field area and the workshop,
no special requirements. Effectively cut down the fixed investment; Simple installation,
fast constructprogress, short construction period, allow our clients to meet the benefits
in the shortest possible time.
Applying: This maize flour milling processing plant is suitable for small food companies,
starch sugar companies, and breweries companies.
The process of maize flour grits and flour milling
1.Grain storage ( silos, or warehouse)
2.Cleaning part ( sifter, destoner, separator, magnet, scourer, etc)
1). Raw corn primary cleaning: 1 sift, 1 measurement; equipped with one set of dust catching air net to ensure having a good work environment. (According to customer’s requirement to choose it or abandon it.)
2). Raw corn cleaning: one sifting, two destoning, magnetic separating; equipped with two or three sets of dust collecting wind net, ensuring to finish production craft and dust catching.
vibrating screen destone machine

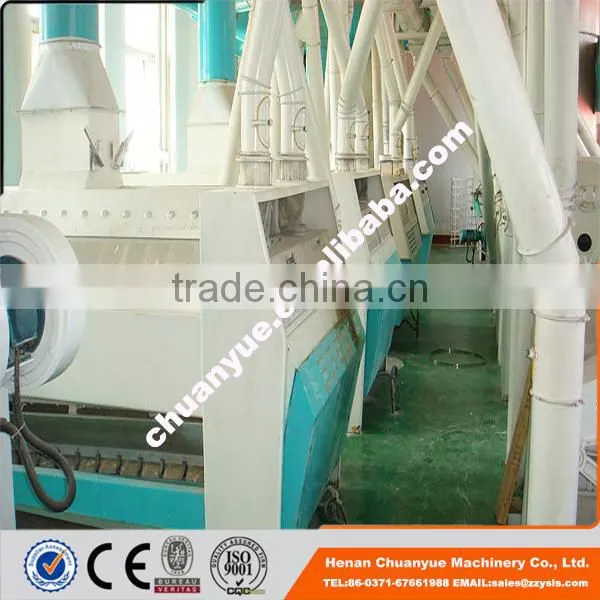

3.Hulling, polishing and milling part (roller mill, plan sifter, purifier, impact detacher, etc.)
Include different number of mills and sifters to break the integrity corn and separate
the flour and bran
1) Hulling: clean out dust one the surface of corn and skin of crushed corn.
2) Polishing: clean out micro skin on the surface of embryo and germ in the corn;
3) Milling: Mill material into qualified fineness flour, sifting by plansifter
4) Sifting: To grade according to the size of material particles, sifting qualified flour.
polishing machine electric/pneutic mill

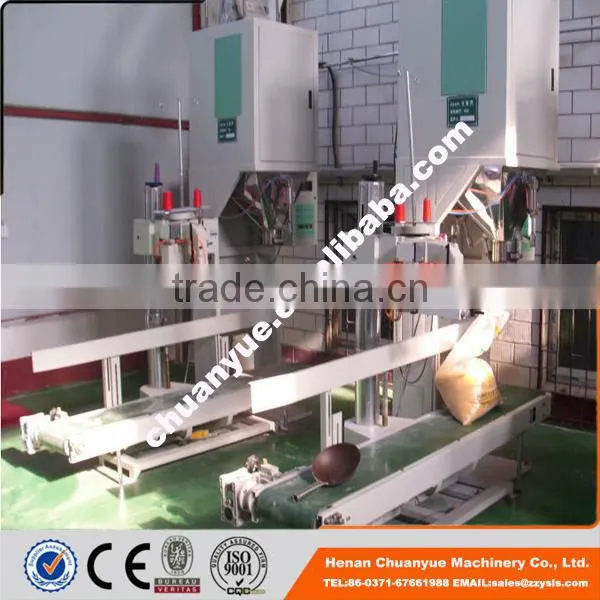

4.Automatic packing part
The packing part can be manual one also can be auto one, this can be designed according to
requirement and machine capacity.
5.Precast pipe, network
Used in grain processing plants and for air conveying and dedusting in feed plants
6.Final products display

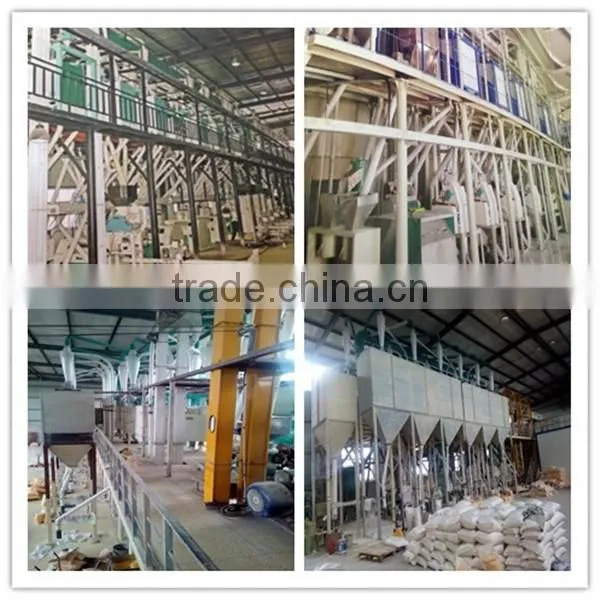

Successful project display
We also offer the follwing production line
20t/d-2000t/d series of corn product line (flour)
series of multi corn product line (grits, flour, germ)
series of dual corn product line (germ, flour)
Corn gluten meal production line
Wheat flour milling production line
Whole wheat flour milling production line
Buckwheat processing line
....
If you need more technical information and exactly price, please contact with us freely.Our professional technique team will give you the best service.
Mob/Whatsapp: 86 138 3830 6720
My Skype:Ashley Guo
