Specifications
maize flour milling machines1. Full casted-steel base
2. With weighing sensor & stepless speeding regulation feeder
3. PLC

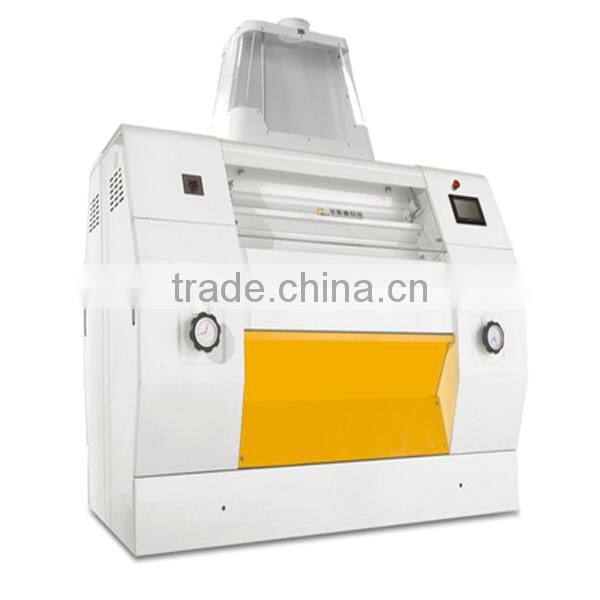

Maize flour milling machine
Introduction:
MAIZE FLOUR MILLING MACHINE is used in maize or corn grinding or milling. This series of maize flour milling machine consists of corn process equipments (e.g.: corn huller, corn polisher, germ extractor, new super fine corn grits machine etc.) and foodstuff process general equipment (e.g.: hoist, density corn destoner, plansifter, miller, flour cleaner). The quality of finished products: corn flour and fine feed up to 80-120 mesh.
Function & feature:
1. Compact structure with durable function, proper protection and nice appearance.
2. Convenient operation and maintenance.
3. Simple structure, and easy to replace the screen cloth because the round sieve is adopted.
5. Energy-saving with very low noise, stable and reliable functions.

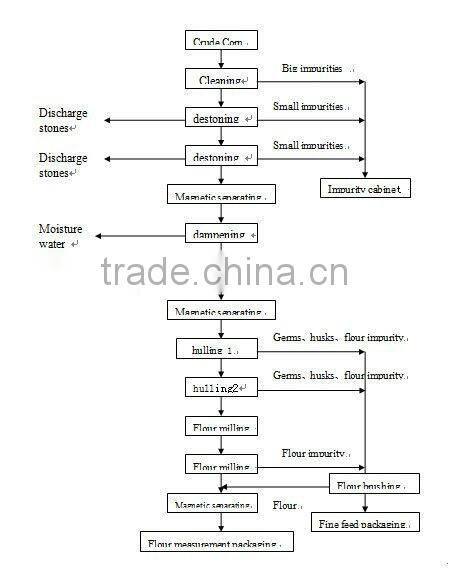

Working procedure:
The series of MAIZE FLOUR MILLING MACHINE are the main facilities of the maize flour mill, employed for wheat, corn and coarse grain process. It depends on one pair of opposite differential rotation to peel materials, extracting the endosperm and milling it into flour.
Technical parameter:
TYPE | POWER (KW) | POWER COST(KW/H) | OUTPUT (T/24H) | SIZE REQUIREMENT (L×W×H m) |
20t | 72 | 58-60 | 20 | 16×5×6 (steel frame construction) 20×5×5(line construction) |
30t | 108 | 58-60 | 30 | 24×5×6 (steel frame construction) 30×5×5(line construction) |
50t | 172 | 56-58 | 50 | 35×5×7 (steel frame construction) |
100t | 346 | 56-58 | 100 | 40×7×8 (steel frame construction) |
After-sale service
1. Provide Precise design Proposal for MAIZE FLOUR MILLING MACHINE: Including Detailed Quotation List, CAD Flow Chat, Technological Index, Installation Diagram, and provide installed production line video and photos for customers reference.
2. Delivery Goods: Provide standard shipping wooden package, full set of equipments photos before and after packing goods. Also, full set of shipping documents sent by post.
3. Installation: Engineers is available to install machine oversea.
4. Quality Guarantee Term: 12 Months.
5. After-sales service: Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
IMAGES:
