Complete Line Maize Processing Mahcinery Price

Complete line maize processing mahcinery price

Specification

* easy operation and daily manitenance

* 1 set MOQ

* 30days delivery after recieve payment

* long lifetime with imported spare parts form Sweden, USA&Japan

Brief introduction

This production line is employed for the hulling, gritting and milling of maize. After the

 hulling treatment of the product, the net kernels were sent to the gritting and milling

chamber. Then through the process of crushing and grinding, high quality grits and flour

were produced.

Main machine

Buckwheat elevator, high efficient vibrating sifter, gravity destoner, manetic selector,

corn hulling machine, corn polishing machine, fine corn grits machine, milling machine,

square plantisifter, low and high pressure fan....

Characteristics

1. Simple structure and low investment, different configuration according

    to clients'requirements

2. Our advanced enginner has 17 years working experience

3.The core machines are developed by ourself, have national patent

4. long lifetimedue to imported spare parts from Sweden, USA and Japan.

Parameters of output

Products:             grade maize grits,flour,huskers;

Yields:                 grade maize flour 25%-30% ;

                            grade corn grits 42%-50%

                            huskers 22%-30%,

Corn flour finess: 40-120 mesh (adjustable).

Technical Parameters

Installation structure:

The line has simple structure, high adjustability for the field area and the workshop,

 no specialrequirements. Effectively cut down the fixed investment; Simple installation,

 fast constructprogress, short construction period, allow our clients to meet the benefits

 in the shortest possible time.

Applying: This maize flour milling processing plant is suitable for food companies,

 starch sugar companies, breweries companies and feed plant.

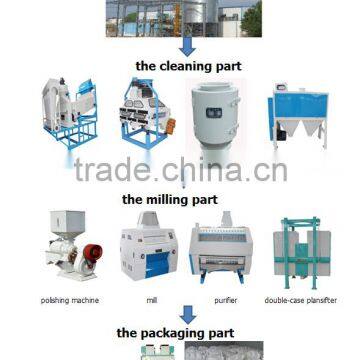

The process of maize milling production line

1.Grain storage ( silo or warehouse)

2.Cleaning part ( sifter, destoner, separator, magnet, scourer, etc)

1). Raw corn primary cleaning:  one sift, one metering ; equipped with one set of dust  catching  air net  to ensure having a good work environment.  (According to  customer’s  requirement  to choose it or not.)

2). Raw corn cleaning: one sifting, two destoning, one magnetic separating; equipped with two  or three sets of dust collecting wind net, ensuring to finish production craft and dust catching.

3.  Hulling, polishing, grits and flour making section, one hulling, two polishing, one grinding for grits, classification of skin absorption and many times milling and sifting.

1) Hulling: clean out dust one the surface of corn and skin of crushed corn.

2) Polishing: remove the micro skin on the surface of embryo and germ of the corn;

3) Milling: grind the integrity into pieces and mill the corn into qualified fineness flour

4) Sifting:   classify the products according to different sizes and select the qualified powder

tering and packing part

The packing part can be manual one also can be auto one, this can be designed according to

requirement and machine capacity.

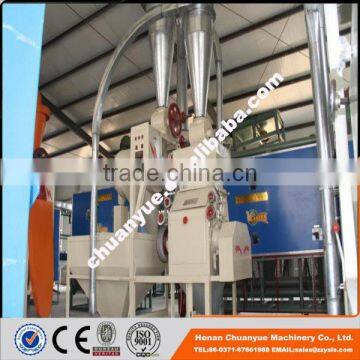

main equipment display

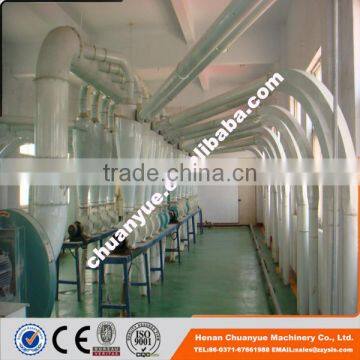

5.Precast pipe, network

Used in grain processing plants and for air conveying and dedusting in feed plants

6.Final products display

We also offer the follwing production line

20t/d-2000t/d series of  corn product line (flour)

series of multi corn product line (grits, flour, germ)

series of dual corn product line (germ, flour)

Corn gluten meal production line

Wheat flour milling production line

Whole wheat flour milling production line

Buckwheat processing line

....

If you need more technical information and exactly price, please contact with us freely.Our professional technique team will give you the best service.
