20TPD Maize Milling Machinery Price / Maize Meal Production Plant

20TPD maize milling machinery price / maize meal production plant

Brief introduction of 20TPD maize milling machine

This production line is employed for the hulling, gritting and milling of maize. After the

 hulling treatment of the product, the net kernels were sent to the gritting and milling

chamber. Then through the process of crushing and grinding, high quality grits and flour

were produced.

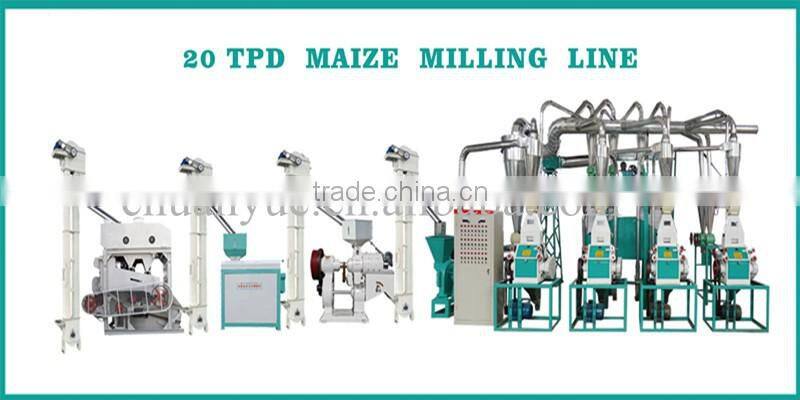

Main machine of 20TPD maize milling machine

Buckwheat elevator, high efficient vibrating sifter, gravity destoner, magnetic selector,

maize hulling machine, maize polishing machine, fine maize grits machine, milling machine,

square plantisifter, low and high pressure fan....

Characteristics of 20TPD maize milling machine

1. Simple structure and low investment, different configuration according

    to clients'requirements

2. Our professional enginner has 17 years working experience

3.The core machines are developed by ourself, have national patent

4. Long lifetimedue to imported spare parts from Sweden, USA and Japan.

Parameters of output

Products:            maize grits,flour,huskers;

Yields:                maize flour 60%-80%(full flour) ;

                           maize grits 50%-65%

                           maize huskers 25%-30%,

        total output of maize grits and flour 80%-90%

Corn flour finess: 40-120 mesh (adjustable).

Technical Parameters of 20TPD corn milling machine

Capacity: 20t/d

Totaled power:  47.5kw

Machines' totaled weight: About 15t

Installation steel structure dimensions:  7*3*4.5m

Installation structure:

The line has simple structure, high adjustability for the field area and the workshop,

 no special requirements. Effectively cut down the fixed investment; Simple installation,

 fast constructprogress, short construction period, allow our clients to meet the benefits

 in the shortest possible time.

Applying: This maize flour milling processing plant is suitable for small food companies,

 starch sugar companies, and breweries companies.

The process of maize flour grits and flour milling

1.Grain storage ( silos, or warehouse)

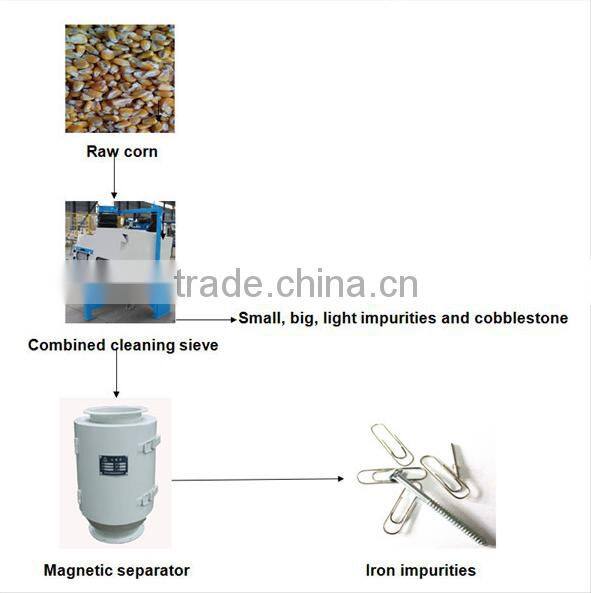

2.Cleaning part ( sifter, destoner, separator, magnet, scourer, etc)

1). Raw corn primary cleaning: 1 sift, 1 measurement; equipped  with one set of dust  catching  air net  to ensure having a good work environment.  (According to  customer’s  requirement  to choose it or abandon it.)

2). Raw corn cleaning: one sifting, two destoning, magnetic separating; equipped with two  or three sets of dust collecting wind net, ensuring to finish production craft and dust catching.

3.Milling part  (roller mill, plan sifter, purifier, impact detacher, etc.)

Include different number of mills and sifters to break the integrity corn and separate

the flourand bran

1) Hulling: clean out dust one the surface of corn and skin of crushed corn.

2) Polishing: clean out micro skin on the surface of embryo and germ in the corn;

3) Milling: Mill material into qualified fineness flour, sifting by plansifter

4) Sifting: To grade according to the size of material particles, sifting qualified flour.

4.Automatic packing part

The packing part can be manual one also can be auto one, this can be designed according to

requirement and machine capacity.

5.Precast pipe, network

Used in grain processing plants and for air conveying and dedusting in feed plants

6.Final products display

We also offer the follwing production line

20t/d-2000t/d series of  corn product line (flour)

series of multi corn product line (grits, flour, germ)

series of dual corn product line (germ, flour)

Corn gluten meal production line

Wheat flour milling production line

Whole wheat flour milling production line

Buckwheat processing line

....

If you need more technical information and exactly price, please contact with us freely.Our professional technique team will give you the best service.
