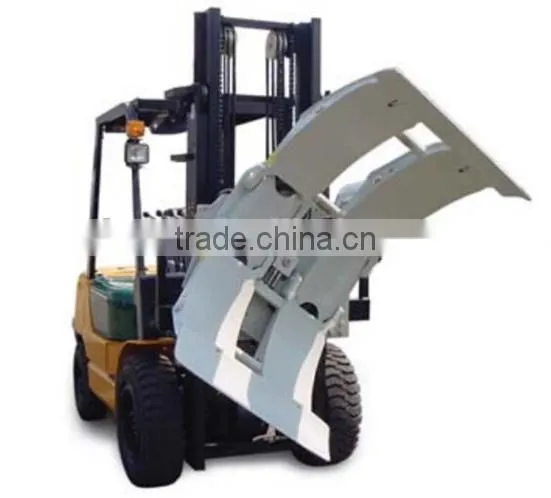

G Series Paper Roll Clamp Bin Clamp Wood Clamp

Application:

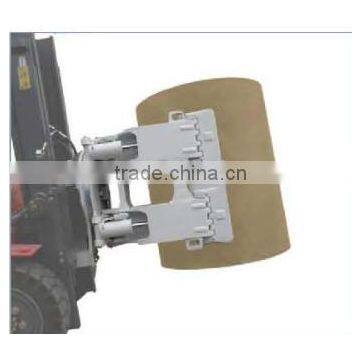

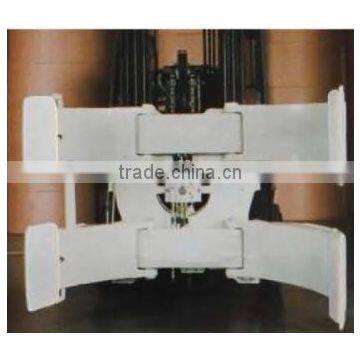

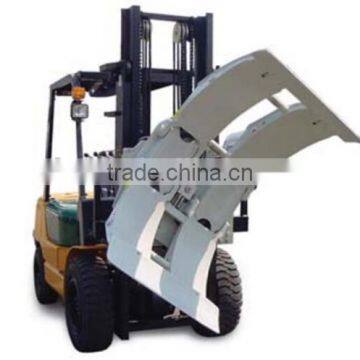

G-Series Paper Roll Clamp is designed with optimized clamp arm and thinner pad to avoid damage while knifling in between rolls in containers, trailers and rail cars. Excellent visibility through the arms and frame allow for max productivity and minimum roll damage.

Features:

--Novel structure and excellent driver visibility

--Split or solid long arm

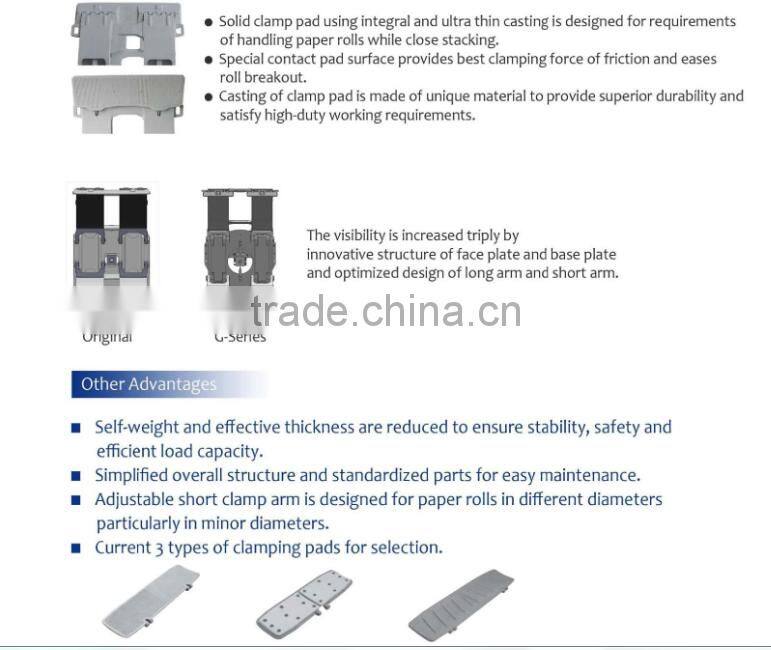

--Ultra thin clamp pad

--Fixed or adjustable short arm

--Fast arm speed

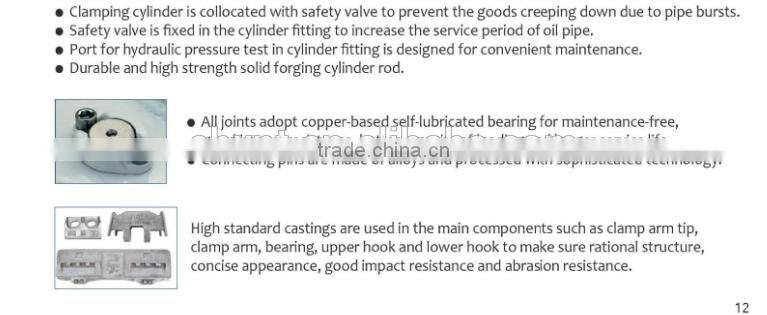

--Durable heavy-duty revolving gear with ball bearing

Advantages:

Remark:

--Optional mouting class and arm shape

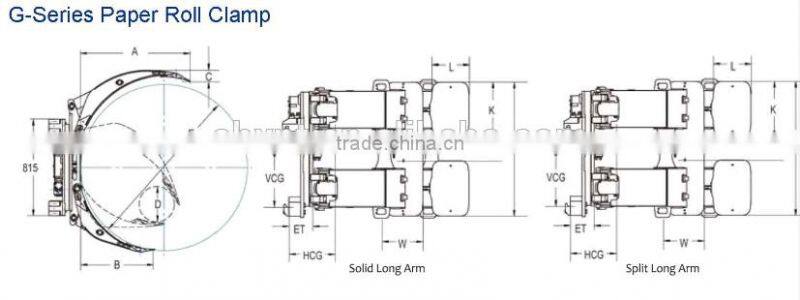

--Short arm: W240XH850(XZ25G), W240xH1000(xz350G)

--Long arm: W240xH350 (XZ25G),W240XH400(XZ350G)

--Additional two sets of oil circuits required on fronklift

--Please contact us if you have any special request

We provide a customized warehouse truck according to your description on the actual requested capacity, pallet size, lifting height,in your working condition
