Help CenterTri-lateral Head Unit for Fork Trucks
Related Products
-
Piper Stablizer for Forklift Trucks AttachmentsUS$ 500 - 500MOQ: 1 Unit -
Load Stabilizer of Forklift Trucks for Machinery or Chemistry Food IndustryUS$ 500 - 500MOQ: 1 Unit
-
Single & Double Pallet Handler for Fork TruckUS$ 500 - 500MOQ: 1 Unit
-
Invert Push Clamp for Fork Truck for Bags, Cartons, Fertilizer, Grains Cements ,suguer ,canned GoodsUS$ 500 - 500MOQ: 1 Unit
-
G Series Rotator for Food Proceesing, Agriculture EtcUS$ 500 - 500MOQ: 1 Unit
Application:
It's a unique attachement that can put the forks on either front, left or right side while loading. It's used between the forks and for carriage, swing 180 degree and side shifting via 2 units of hydraulic circuit. It can reach the goods from the side without turing the truck.
--Tri-Lateral head unit
--Compact structure
--Perfect performance
--Quality Gurantee
Features:
-Achieved 180degree side shifting by two sets of oil circuit drive system
--Chain drive system ensure the stable side shifting
--Lower arm slide bearing used wear resistant nylon material to ensure smoothly move
--Upper arm slide bearing used idler wheel slide way to ensure high conefficient of sability.

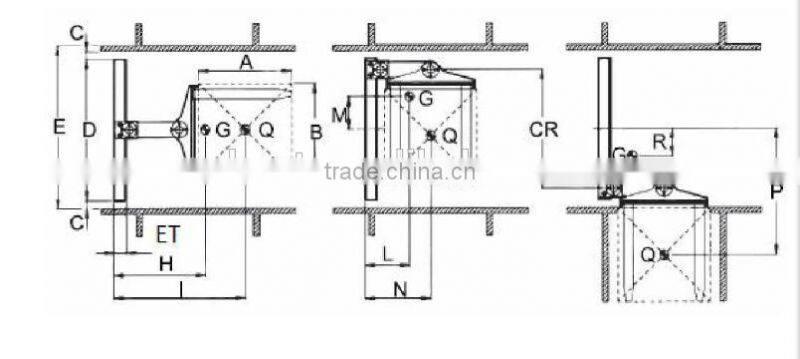

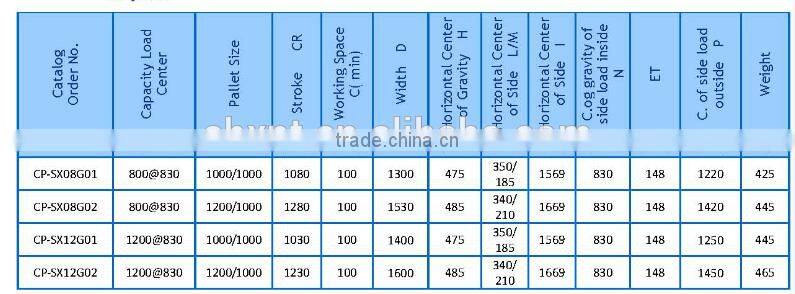

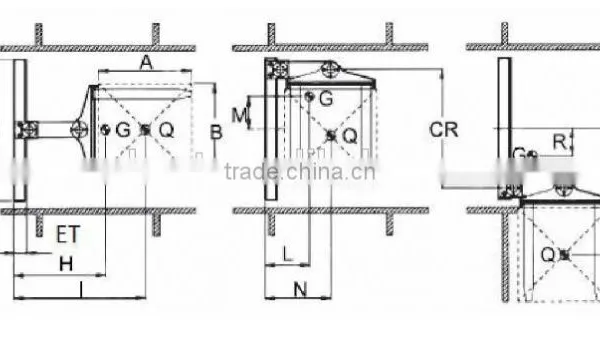

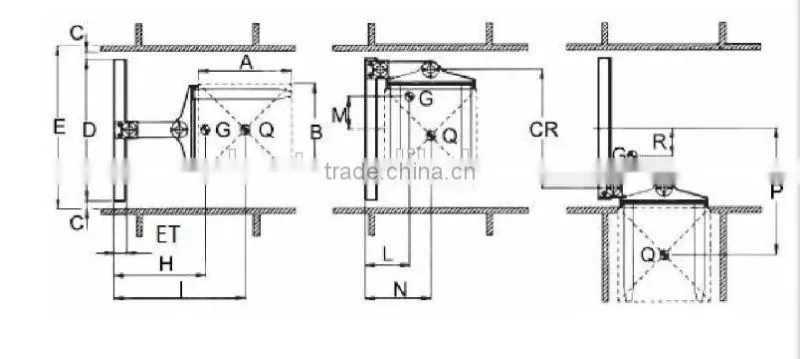

Product specifications:
--Obtain the actual capacity of the forklift and attachements from the forklift manufacture
--Additional two sets of oil circuit required on forklift
--Above types are the standard typs, please contact us for any special request.
On the base of FORKLIFT manufacturing base in China, our forklift attachments factory has been on the line for years and have the ablity to do the individal development according to the different working conditions.
We provide one-step solution of customized unique products, be your Personal trailor.
Now most of our forklift attached have been supplied to most domestic forklift manufactures, to the oversea coutries as per their own requiremens.
Paper Roll Clamp, Bin Tipper, Invert Push Clamp, Weighted forks, Convelift self loader, etc are our star products at present.
Welcome to enquire us and we can submit our solutions in 24 hours.
