XPS Foam Board/Cardboard Sheet Laminating Production Line
- 1000 Set / Sets per Month
- qingdao port
- T/T
You May Like
Product Details
| Condition | New | Application | Other, board | |
| Plastic Processed | XPS | Screw Design | Double-screw | |
| Automatic Grade | Fully Automatic | Place of Origin | Shandong, China | |
| Brand Name | Fushi | Model Number | FS-XPS135/150 | |
| Voltage | 380V 50HZ 3Phase(Customized) | Power(W) | 260kw | |
| Dimension(L*W*H) | 48m(L)*10m(W)*5m(H) | Weight | 23t | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
XPS Foam Board/Cardboard Sheet Laminating Production Line
1,Main Technical Data:
Model | FUSHI-135/150 |
Extruder lay type | Direct connection style |
Raw material | General Polystyrene, Auxiliary material: French chalk and color master batch. |
General Polystyrene | Freon/mixture by F142b, R152a, R134a or F22 |
Output of extrusion | 270~350 m³/24h |
Board width | 600/900/1200mm |
Board thickness | 20-120mm×600mm 20-80mm×900mm 20-60mm×1200mm |
Board density | 28~45g/m3 |
All installed power | 260kw |
Load regulation | 50% |
Factory power supply voltage | 260Kw,3-phrase,380V |
Factory compressed air supply | Pressure: 80PSI, Flow: <3m3/min |
Factory circulating water | Pressure: 60PSI, Water temperature: 20-30ºC, Flow: <3L/m |
Factory installation temperature | 0-40 ºC |
Overall dimension | 48m(L)×10m(W)×5m(H) |
Complete line weight | 23 tons |
2,Characters&Application:

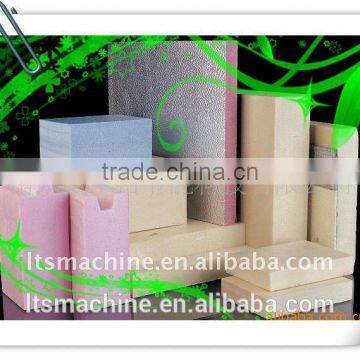

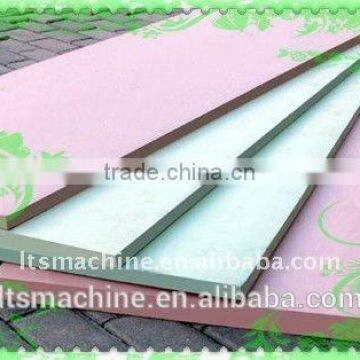

XPS foam board,also named as polystyrene extrusion plastic board(referred to as XPS) has a perfect closed-cell structure.Its density,waterr absorption,coefficient of heat conducting and the coefficient of steam pervasion are all lower than those of other heat insulation materials and they are characterized by strong intensity,light material,airtight,anticorrosion,aging resistance,low cost.It has been widely used for heat preservation,and insulation in the constgruction industry,frost resistance of the highway,railway ,airport,square and household fitment,It is the generally ackonwledged as the best heat preservation amterial at present.
3,More informations,pls contact with me freely.
MS.Amy Song
Skye:Kamasong518
C.P No.:+86-15253598039
Whatsapp&Wechat:+86-17753518223
