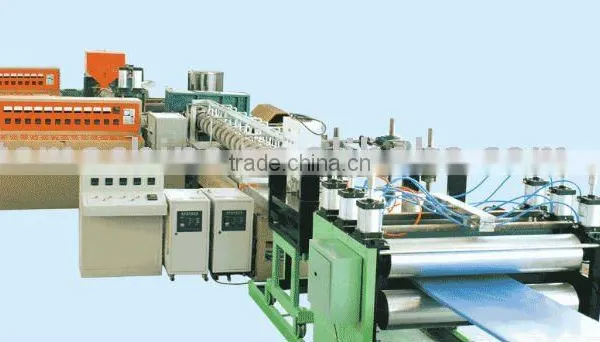

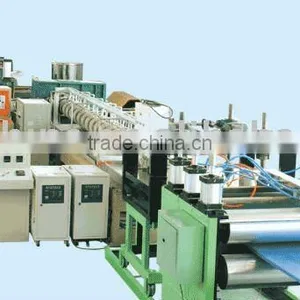

Xps Foam Board Extrusion Line Machine

Specifications

xps foam board extruson line

Products: Foam insulation board

Material: PS

Blowing agent: Freon, F12/F22

Thickness: 20 - 100mm

Width range: 600, 900, 1200mm

Density: 30 - 35 kg/M³

Edge profile: Ship lap, Tongue and Groove

Surface profile: RC grooving; Overlapping and SS flush joint

Type: Tandem

Screw Diameter: 120/150 mm, 135/150mm

Screw L/D: 34: 1 and 32: 1

Throughput: 220-350 Kg/h.

Cooling: by water

Total power: 310KW

Dimension: 40X8.2X5.5 m (L.W.H)

Weight: 20 MT

Delivery time: 75days

Product Description: XPS foamed board, also named as polystyrene extrusion plastic board (XPS for short) has a perfect closed-cell structure. Its density, water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower than those of other heat insulation materials and they are characterized by strong intensity, light material, airtight, anticorrosion, aging resistance, low cost. It has been widely used for heat preservation, and insulation in the construction industry, frost resistance of the highway, railway, airport, square and household fitment. It is the generally acknowledged as the best heat preservation material at present.
