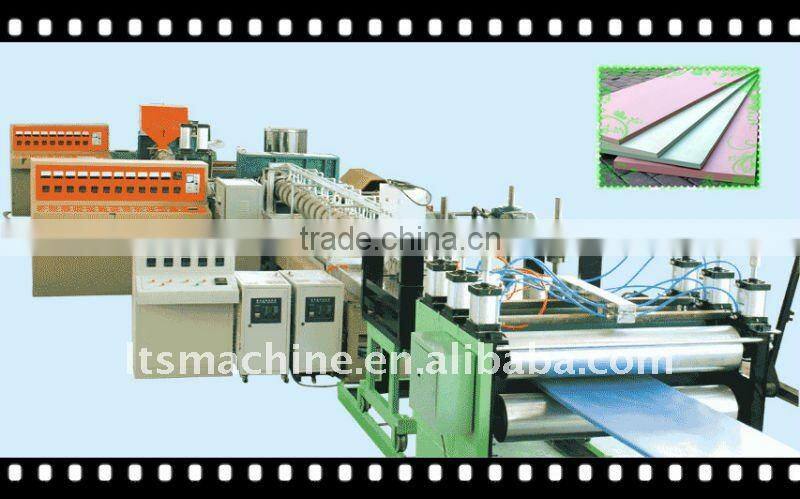

FUSHI Packing XPS/EPS Foam Board Extrusion Line

FUSHI Packing XPS/EPS Foam Board Extrusion Line thumbnail-1
FUSHI Packing XPS/EPS Foam Board Extrusion Line thumbnail-2
FUSHI Packing XPS/EPS Foam Board Extrusion Line photo-1
FUSHI Packing XPS/EPS Foam Board Extrusion Line photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, board
Plastic Processed:
XPS
Contact Supplier Request Quote Chat Now
Longkou Fushi Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, board
Plastic Processed XPS
Screw Design Double-screw
Automatic Grade Fully Automatic
Place of Origin Shandong, China
Brand Name Fushi
Model Number FS-XPS
Voltage 380V 50HZ 3Phase(Customized)
Power(W) 75-90kw
Dimension(L*W*H) 45000*8200*5500mm
Weight 20t
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

FUSHI Packing XPS/EPS Foam Board Extrusion Line



Detailed description of XPS line

1.automatic spiral feeder

Feeder and Hopper:1set

Motor:1set/2.2kw

2. 135 screw extruder

Screw and Cylinder:1set/made by 38CrMoAIA, after nitriding treatment

Motor:1set/75kw

3. non-stop hydraulic screen changer

Hydraulic Station:1set/2.2kw

Screen Changer Machine:1set

4. the high-pressure measurement system:

Metering Pump:1set/63L/min,40Mpa

One-wat Valve:1set

5. 150 screw extruder

Screw and Cylinder:1set/made by 38CrMoAIA, after nitriding treatment

Motor:1set/45kw

6. T-die:  2 sets

Oil Heater:1set/Special for the machine

Size of Production:Thickness:20-100mm,width:600mm

7. leveler

Upper and Lower Plate Leveling Machine:1set/Suitable for the 1200*1000mm

Screw Lift and Rack:Made by box iron

8. tractor: pull roll rubber wheels.

Pull Roll:1set/Adopt rubber roll

Traction Motor:1set/1.5KW (inverter to adjust the speed)

Pinch Roller:1set/Adopt cylinder stud φ125*100

9. six cooling bracket: Roller was electroplating polishing.

10.the second tractor

Use of Roller:2sets/Adopt steel φ120*1000

Motor:1set/1.5KW(by inverter to adjust the speed)

Parts

Amount

Feature

the use of roller

2

Adopt steel φ120*1000

the motor

1

1.5KW(by inverter to adjust the speed)

11.longitudinal cutting machine:Using blade cutting

12.transverse cutting conveyors

Cutting Method:blade cutting

Movement Method of Blade:1set/chain move

PLC:1set/Fully automatic

13.the main electrical control box

Main Motor:2sets/frequency converter control speed

Temperature controller:2sets/Adopt domestic smart instrumentation
