Floor Dampproof Mat Machine

Specifications

PE Foam Sheet Extrusion Line
1.New packing material
2.Single screw design
3.Material can be recycled
4.Good quality

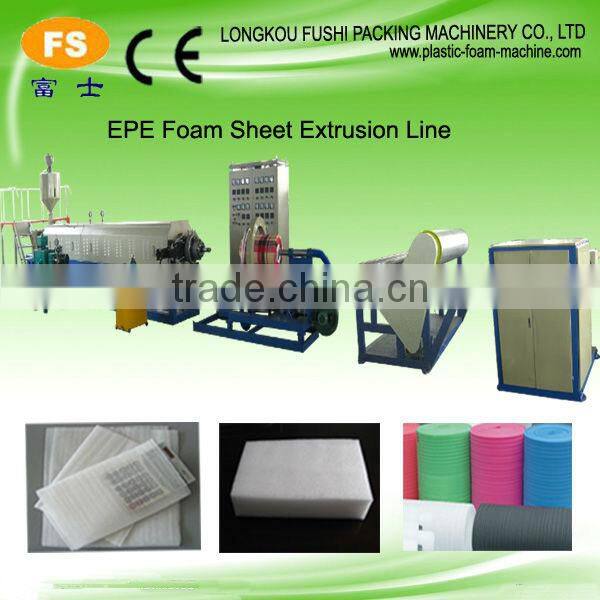

PE Foam Sheet Extrusion Line(FS-FPM120)



THE MAIN TECHNICAL SPECIFICATIONS:

TYPE		FS-FPM90	FS-FPM105	FS-FPM120	FS-FPM135	FS-FPM150	FS-FPM180
EXTRUDER		90/55	105/55	120/55	135/55	150/55	180/55
SCREW SPEED	r/min	5-45	5-45	5-45	5-45	5-45	5-45
FOAMING RATE		20-40	20-40	20-40	20-40	20-40	20-40
WIDTH OF  PRODUCT	mm	1100-1500	1100-1500	1100-1600	1100-1600	1100-1600	1100-1600
THICKNESS OF  PRODUCT	mm	3.0-0.5	5.0-0.5	6.0-0.8	8.0-2.0	12.0-2.0	16.0-3.0
INSTALLED CAPACITY	KW	90	100	120	140	150	170
DIMENSION (L*W*H)	M	22*2.3*2.2	23*2.3*2.2	25*2.3*2.2	27*2.5*2.3	30*2.5*2.3	32*2.5*2.3
TOTAL WEIGHT  (APPR.)	T	8.5	9	10	12	15

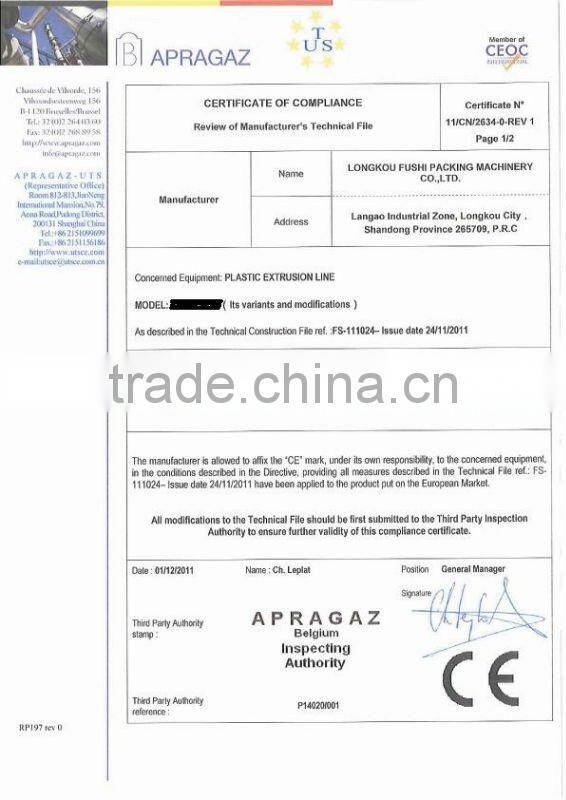

CE Certification







Application

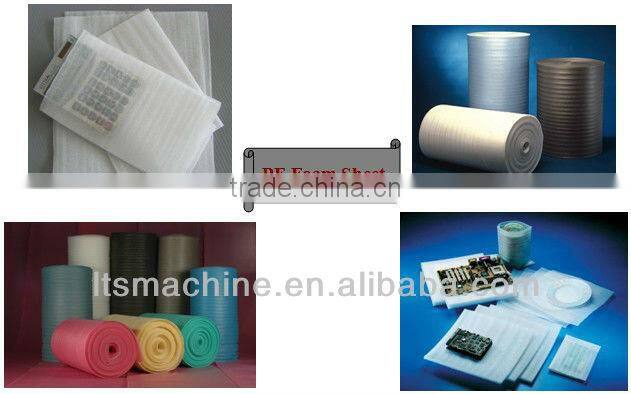

Polyethylene foam sheet, which is also named as pearl cotton. It is a kind of new-type packing material with the features of damp proof, shock proof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, daily necessities, glass, pottery, electrical household appliances, furniture, hardware product, toy, etc.









Details show













Packing

After the machine is finished, we will pack it in wooden box, and there have steel frame in it, detailed as following:







Shipping

1. From Qingdao Port

2. The delivery time is according to the machine that you order



 Payment

1. T/T

2. L/C

3. ESCROW



Services
