Supply Many Types Tunsten Carbide Wire Drawing Dies

Supply Many Types Tunsten Carbide Wire Drawing Dies thumbnail-1
Supply Many Types Tunsten Carbide Wire Drawing Dies photo-1
US$ 50 - 80 MOQ: 5 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Jinxin
Model Number:
JX
Contact Supplier Request Quote Chat Now
Zhuzhou Jinxin Cemented Carbide Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
changsha guangzhou shenzhen shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name Jinxin
Model Number JX
Shaping Mode Die Casting
Product Material Other, tungsten carbide
Product Other, wire drawing dies

Specifications

1.100% virgin material,
2.high quality at a low price
3.Jinxin Brand
4.OEM service supported

  supply many types tunsten carbide wire drawing dies

supply many types tunsten carbide wire drawing dies

Properties & applications of  supply many types tunsten carbide wire drawing dies

Grade g/cm3 TRS
MPa		 Hardness
HRA		 Performance & application recommended
YG4C 15.10 1800 90.0 Mainly used as small buttons for percussion bits to cut soft and medium hard formations.
YG6 14.95 1900 90.5 For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8 14.80 2200 89.5 For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YK05 14.95 2500 90.5 Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG8C 14.80 2400 88.5
YK15 14.60 2450 87.6 Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations.
YK20 14.40 2500 86.8 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YK25 14.40 2550 87.2 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations.
YG11C 14.40 2700 86.5 Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C 14.2 2850 86.0 Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations.
YG15C 14.0 3000 85.5 For oil cone drill bits, for medium soft and medium-hard rocks.

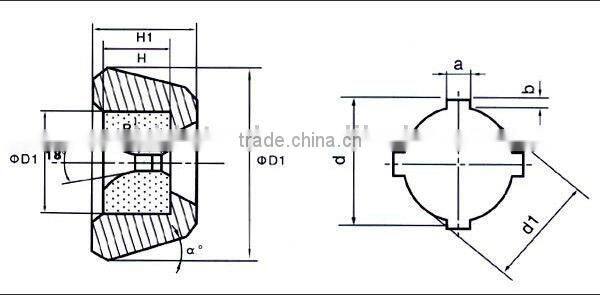

Suitable for drawing screwed steel wires of diameter 4, 5, 6, 7, 8, etc. Or different types of steel wire and tubes. Surface finish of inner hole is over Details for drawing and specifications see below.

Nominal diameter number of screws.

supply many types tunsten carbide wire drawing dies

Dia. 13 12 11 10 9 8 7 6 5 4.8 4 3
d1 12.4 11.5 10.5 9.6 8.6 7.7 6.7 5.8 4.8 4.6 3.85 2.8
d 13.5 12.6 11.6 10.6 9.6 8.5 7.5 6.5 5.4 5.2 4.25 3.2
a 2.6-3.3 2.4-3.0 2.2-2.8 2.0-2.5 1.8-2.3 1.8-2.2 1.8-2.2 1.3-2.0 1.2-1.8 1.2-1.8 1.0-1.5 1.0-1.5
b 0.50 0.50 0.50 0.50 0.50 0.40 0.40 0.35 0.25 0.25 0.20 0.20
???? 6 6 6 6 6 6 4 4 4 4 3 or 4 3
?? 75-90 75-85 85-80 60-75 60-70 45-56 45-56 38-45 34-40 34-40 32-36 30-35
All dimensions in (mm)

Remarks: size of steel case can be decided by customers.




supply many types tunsten carbide wire drawing dies

supply many types tunsten carbide wire drawing dies

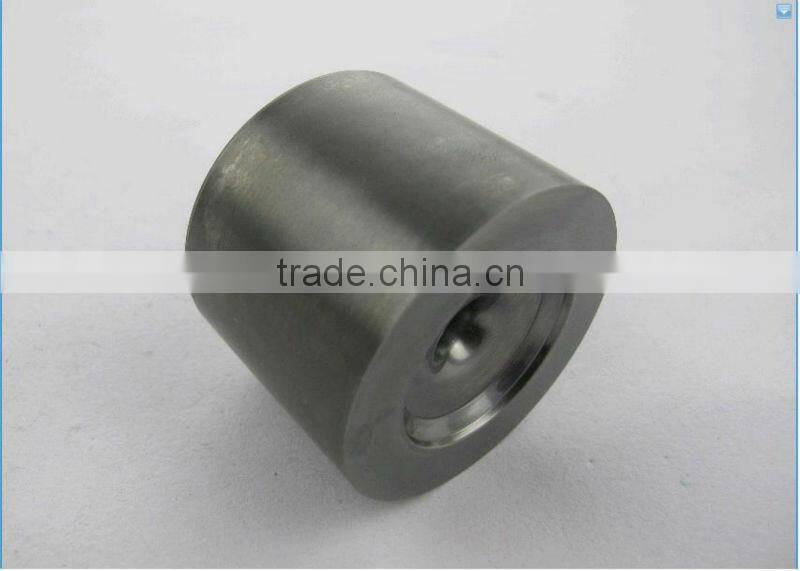

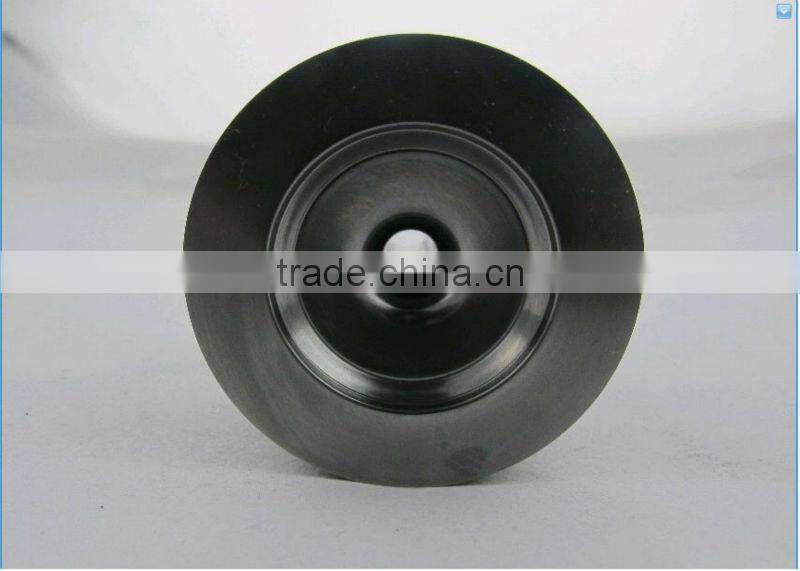

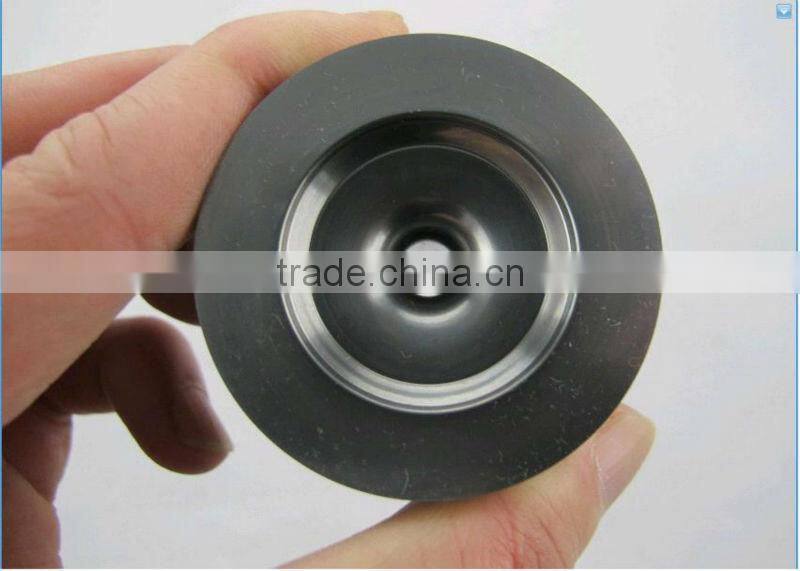

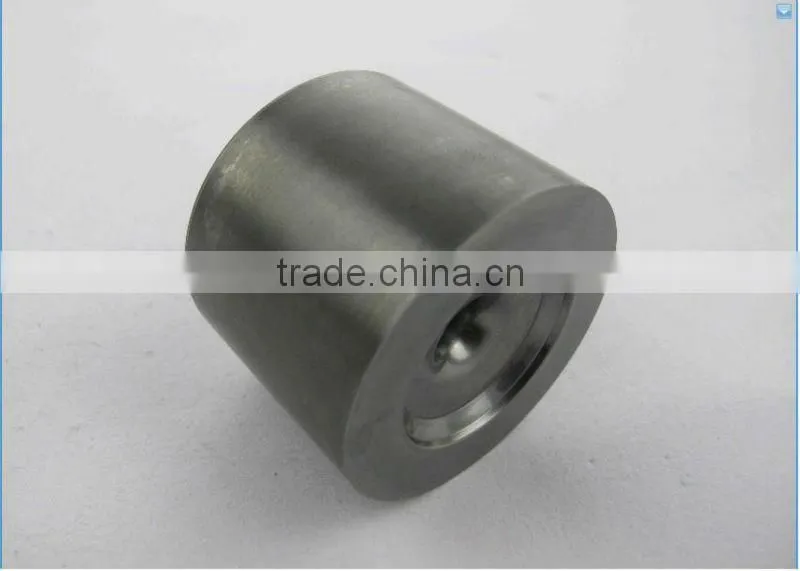

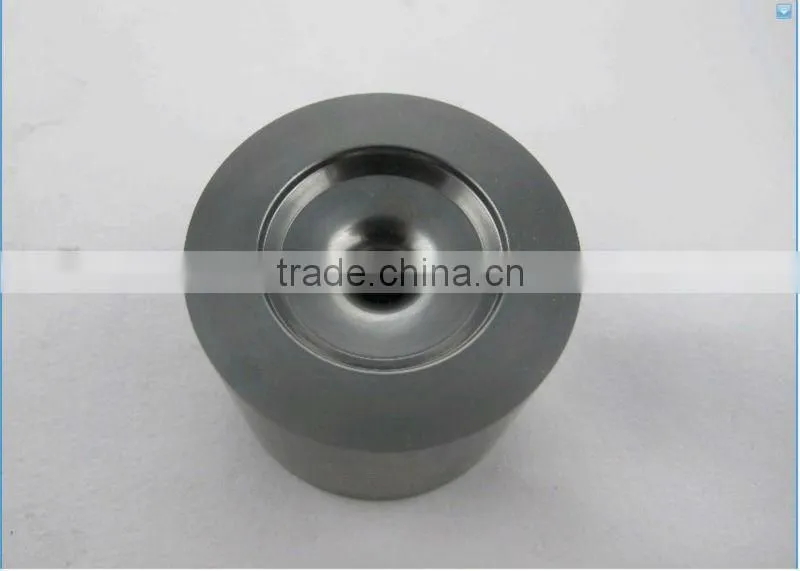

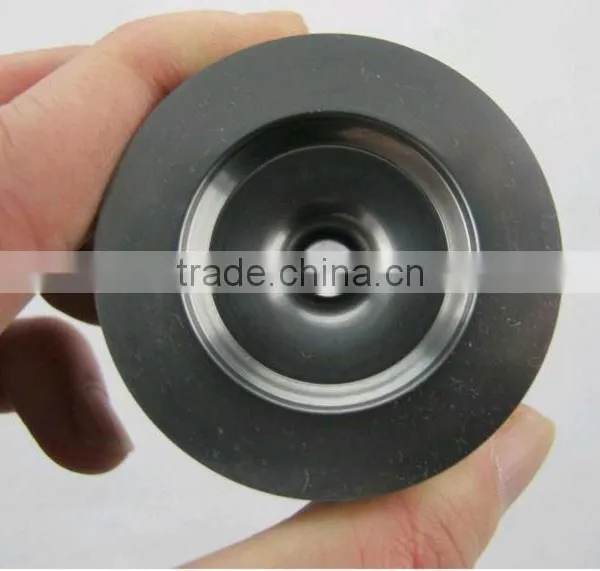

 The display of  supply many types tunsten carbide wire drawing dies supply many types tunsten carbide wire drawing diessupply many types tunsten carbide wire drawing diessupply many types tunsten carbide wire drawing diessupply many types tunsten carbide wire drawing diessupply many types tunsten carbide wire drawing dies

supply many types tunsten carbide wire drawing dies

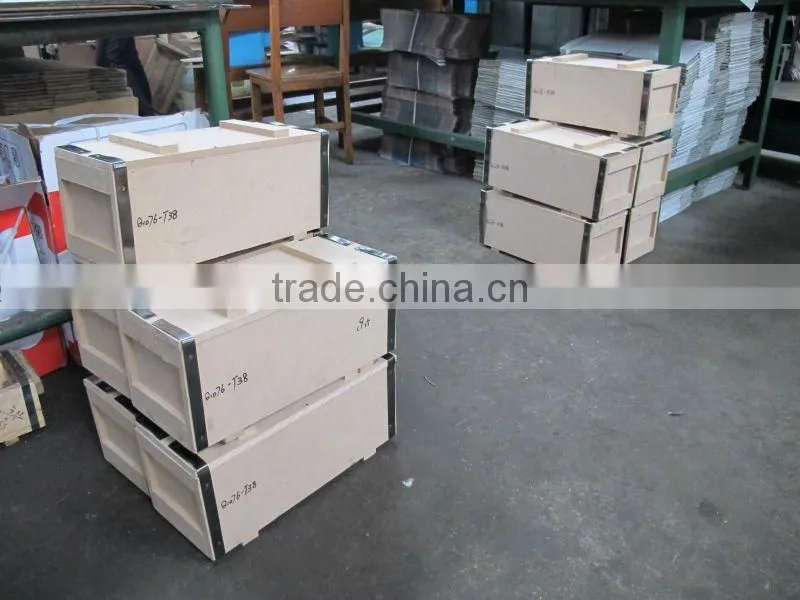

The packing of  supply many types tunsten carbide wire drawing dies supply many types tunsten carbide wire drawing dies

supply many types tunsten carbide wire drawing dies

supply many types tunsten carbide wire drawing dies

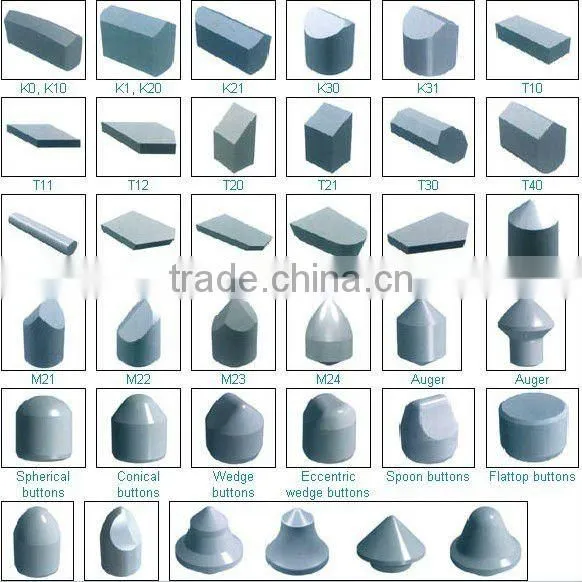

Zhuzhou Jinxin Cemented Carbide Co., Ltd specializes in manufacturing a series of Tungsten Carbide products.

Carbide Inserts for Mining Tools
Carbide Round Rods (dia from 1.0 to 25.4 mm)

Cabide for rock drilling tools and coal-mining tools

Carbide Tubes

Carbide strips and plates

Carbide tips for Debarking Bits
