Carbide Inserts/cnc Carbide Inserts of Types for Cnc Turning Tools 100%from Zhuzhou
US$ 2 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Jinxin
Model Number:
WNMG
Payment & Shipping
Payment Methods:
Port of Shipment:
any
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HSS Twist Drill Bit Sets,High Quality Carbide Tipped HSS Twist Drill BitUS$ 0.8 - 1.5MOQ: 30 Pieces -
Triangle Carbide Insert,less Quantity AvailableUS$ 2 - 6MOQ: 10 Pieces
-
CNMG Indexable Cemented Insert for Cutting Kinds of MaterialUS$ 3 - 8MOQ: 10 Pieces
-
Offer Various Cermented Turning Inserts for Cutting Tools With High Wearability and HardnessUS$ 3 - 9MOQ: 10 Pieces
-
Cnc Machine Inserts/cnc Insert Types/cnc Turning Inserts for Steel GroovingUS$ 0.2 - 1.2MOQ: 30 Pieces
Place of Origin
Hunan, China
Brand Name
Jinxin
Model Number
WNMG
Material
Other, Tungsten Carbide, Tungsten Carbide
Usage
Other, for steel, ISO Turning Tool
Hardness
for steel
Coating
YBC251, CVD / PVD
Jinxin carbide inserts /cnc carbide inserts of types for cnc turning tools 100%from zhuzhou

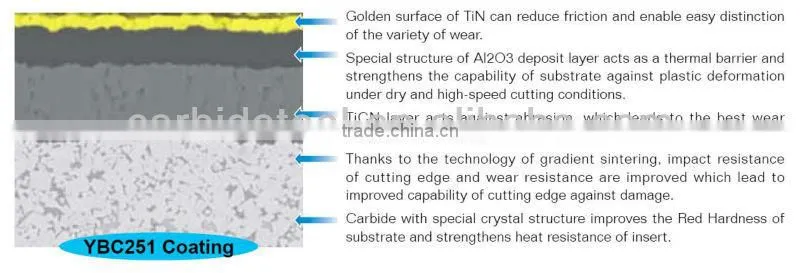

The detailed information about YBC251 coating cemented carbide CVD
| YBC151 | The combination of substrate with excellent wear resistance and coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for finishing steel. |
| YBC251 |
The substrate with good toughness and high security of cutting edge, in optimal combination with coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel semifinishing. |
| YBC351 | The best combination of substrate with high wear resistance and coating composed of MT-Ti (CN), thick Al2O3 layer and TiN makes it suitable for finishing and semi-finishing of cast iron materials. |
| YBD151 | The substrate with high strength and resistance against plastic deformation,in combination with coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel roughing. |
| YBM151 | Subst rate wi th special st ructure, i n combination with coating composed of TiCN, thin Al2O3 layer and TiN, with excellent resistance against diffusive wear and plastic deformation makes it suitable for finishing, semi-finishing and roughing of stainless steel. |
| YBM251 | Combination of substrate with good toughness and strength and coating composed of TiCN, thin Al2O3 layer and TiN makes it suitable for semi-finishing and roughing of stainless steel. |
| YBM253 | New CVD grade for high-efficiency machining of stainless steel,Widely applied in high-efficiency machining with high cutting depth and high feed rate,With advanced ultra-fine grain nano coating technology, the grade uses gradient alloy substrate with high toughness. It demonstrates excellent capacity at cutting with high cutting depth, high feed rate and high speed. |

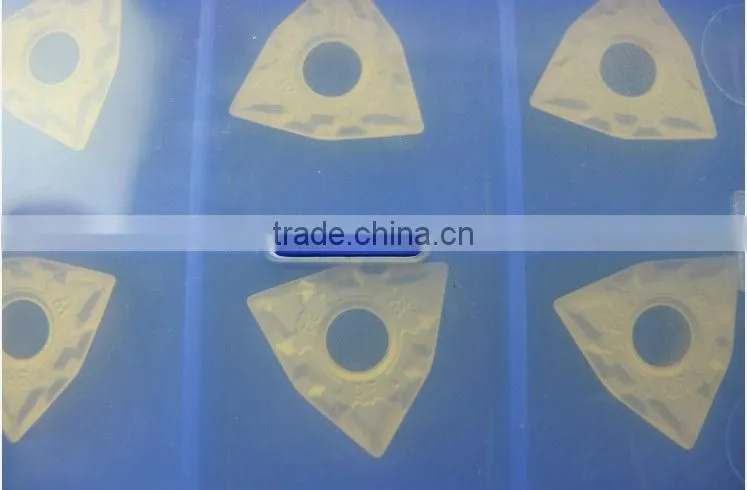

The display of Jinxin inserts carbide/cnc carbide inserts
100% Raw material and authentic; Direct sale from factory.

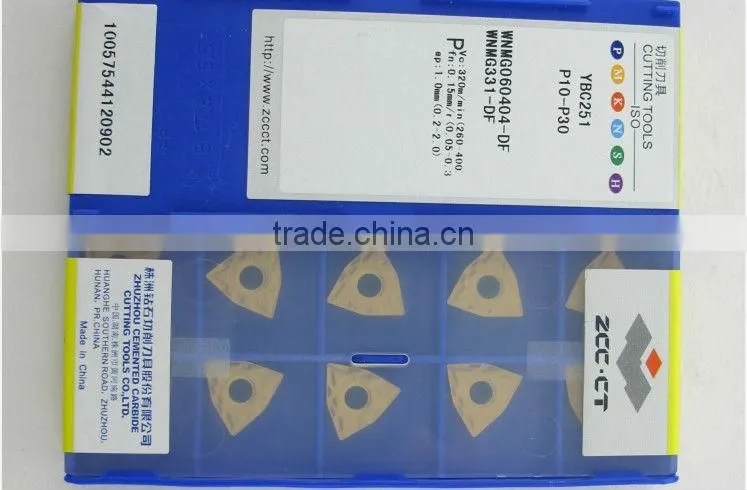

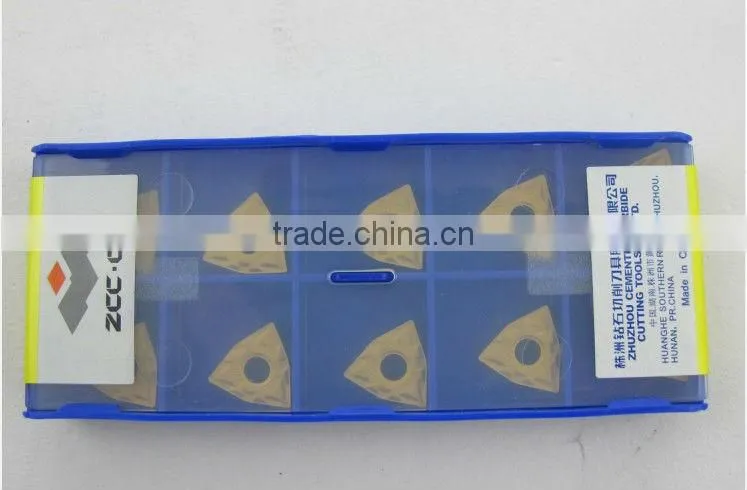

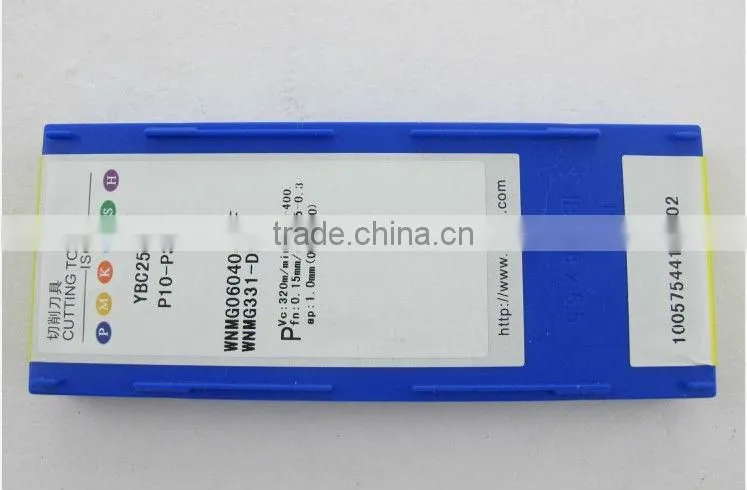

The inner packing of Jinxin inserts carbide/cnc carbide inserts

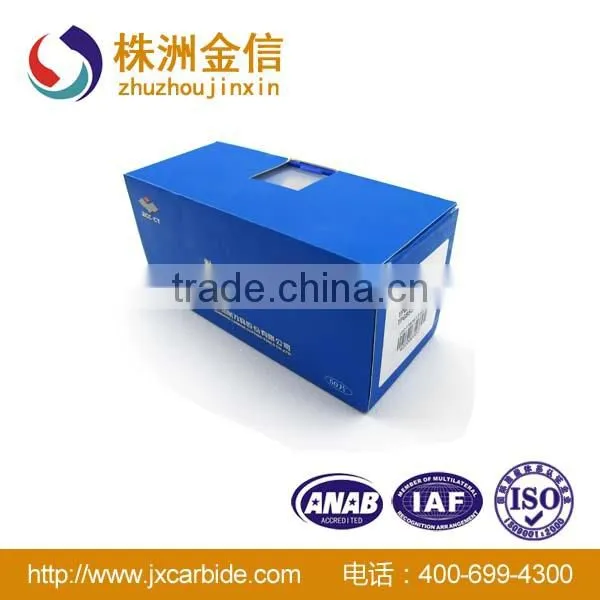

The outer packing of Jinxin inserts carbide/cnc carbide inserts
Jinxin inserts carbide/cnc carbide inserts of types for cnc turning tools 100%from zhuzhou:
Jinxin inserts carbide/cnc carbide inserts of types for cnc turning tools 100%from zhuzhou:
Zhuzhou Jinxin Cemented Carbide Co., Ltd is a professional manufacturer of carbide turning/milling inserts, stone cutting inserts, sand making machine tungsten carbide strips, wear parts and carbide mining tools. We can also do items as per customers' drawing and requirements.
More items will be found in our shop, looking forward to your visiting & chatting on line.
Enjoy your purchasing time
Sophia Sue
Skype:chinacarbidelili
Phone: 86-731-28821498
Fax: 86-731-22332243-8006
