tungsten turning inserts

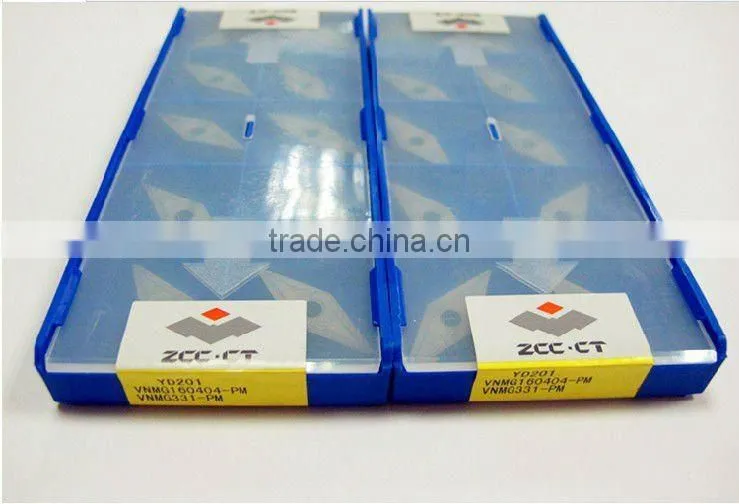

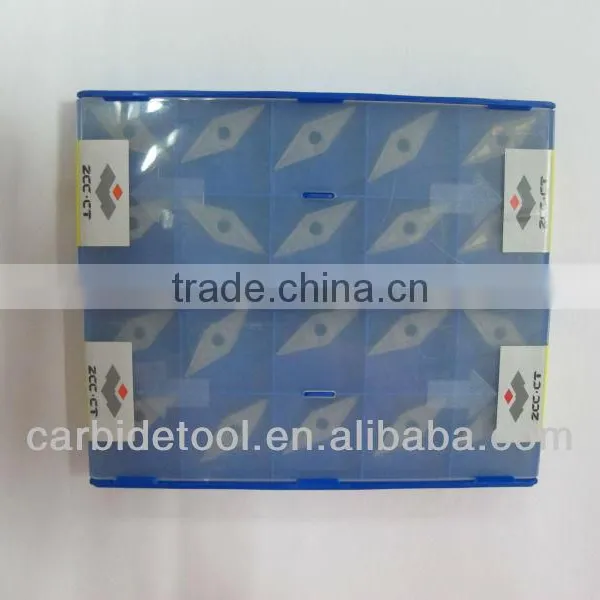

YD201 VNMG160404-PM,cnc carbide cutting tools,carbide indexable turning milling inserts:
Products feature:
1. CNC inserts use special grade ultrafine particles tungsten carbide powder as raw material, CNC turning insert matrix has excellent strength and hardness indication.
2. Our CNC blade has special coating process which obtained the national patent technology, and the NC insert surface is pretty smooth, while keeps CNC lathe blade toughness and hardness.
3. The unique blade grooving design makes the CNC turning insert edge more sharp, so the cutting efficiency was improved 30% or more.

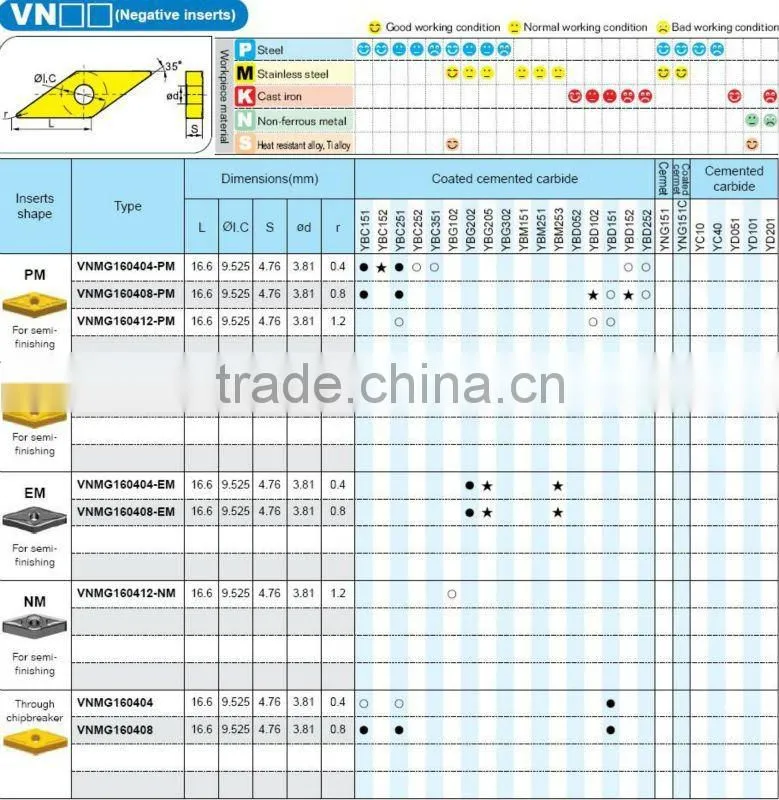

Grades:
YBC151 |
High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
YBC152 |
Thick TiCN and Al2O3 coating |
YBC251 |
tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC252 |
Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC351 |
Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBG102 |
nc-TiAN coating and fine-grained matrix. |
YBG202 |
nc-TiAN coating and fine-grained matrix. |
YBG205 |
Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
YBG302 |
nc-TiAN coating and flexible cemented carbide matrix. |
YBM151 |
Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
YBM251 |
Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
YBM253 |
With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
YBD052 |
CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
YBD102 |
CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
YBD152 |
CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
YBD252 |
CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
YNG151 |
Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
YNG151C |
Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
YD101 |
Fine particle hardness phase WC and bond phase Co. |
YD201 |
Middle particle hardness phase WC and bond phase Co. |
Our package:
Our warehouse:
