pp Strap Band Thickness 0.45-0.8mm Production Line

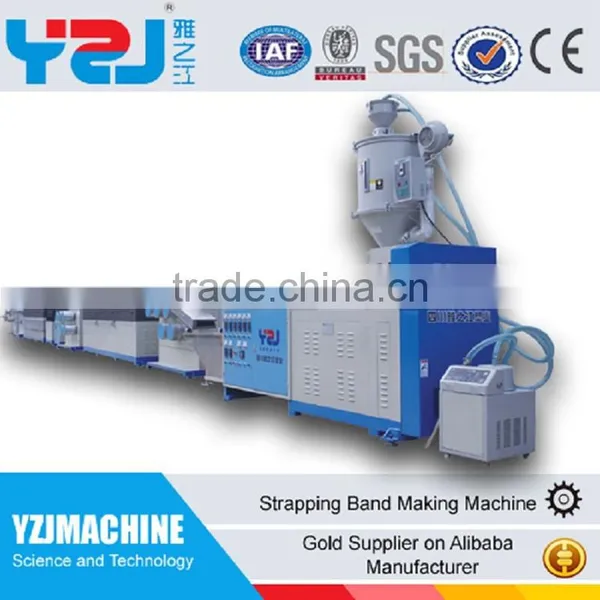

pp Strap Band Thickness 0.45-0.8mm Production Line photo-1

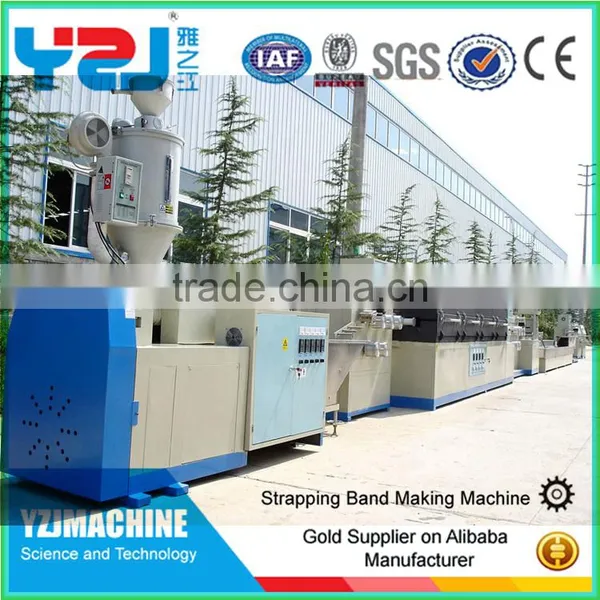

pp Strap Band Thickness 0.45-0.8mm Production Line photo-2
pp Strap Band Thickness 0.45-0.8mm Production Line photo-3
pp Strap Band Thickness 0.45-0.8mm Production Line photo-4
pp Strap Band Thickness 0.45-0.8mm Production Line photo-5
pp Strap Band Thickness 0.45-0.8mm Production Line photo-6
US$ 2,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, pp strap band thickness 0.45-0.8mm production line
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, pp strap band thickness 0.45-0.8mm production line
Plastic Processed PP
Screw Design Single-screw
Automatic Grade automatic
Place of Origin Sichuan, China
Brand Name YZJ, YZJ
Model Number YZJPPSDQ1-V
Voltage 380V 50HZ 3Phase(Customized)
Power(W) 120KW
Dimension(L*W*H) 32M*2.5M*3.5M
Weight 12t
Certification CE/BV/ISO
After-sales Service Provided Engineers available to service machinery overseas

pp strap band thickness 0.45-0.8mm production line

1. Highly efficient pp strap band production line

pp strap band thickness 0.45-0.8mm production line



2.   Highly efficient pp strap band production line  Advantages:

  1. Used pp strap can be as one of the material to save cost.
  2. Can produce manual,semi-automatic and automatic straps,and also transparent straps.
  3. Automatically production  reduced the labor cost.
  4. Advanced technology in the same industry.
  5. High production capacity with linear velocity 180m/min.
  6. Free traning for customers.

3.Company Introduction

Sichuan Yazhijiang plastic industry Co., Ltd.(hereinafter refers to YZJ) , located in Ziyang " capital of China's energy-saving", covering an area of 80,000 square meter ,was established in 1995.Company size and technology is in the leading position. Over 18 years’ research and development, YZJ is becoming a professional supplier devoted to the designing & production of plastic machine and plastic product.Our main products includes: Plastic recycling line, Highly efficient pp strap band production line .Especially,we applied technology patent for our light-weight PP straps making machines.Our products not only have good sales domestically but also with good reputation in overseas market.

pp strap band thickness 0.45-0.8mm production line

4.   Highly efficient pp strap band production line  introduction





Highly efficient pp strap band production line  is applied to directly make into manual bundling strip used by hand, in machine or lettering package core; featuring super wide, slim or narrow, transparent, dying and lettering into bundling strip. It currently has the highest Performance Price Ratio (PPR)





i. Extrusion machine. It also equips with mutation-mode screw; machine head is right-angle with electric heat.



ii. Cooling tank. Extended tank shall assure the cooling capacity for different product and make strip attain the optimal extension in the course of molecules orientation.



iii. Traction machine. It applied to use bi-directional extension device, traction relied on the traction roller with female screwed and gantry pressed double-roller. Two non-step speed-regulating devices are respectively used to adjust for roller rotation speed to form different linear speeds in two forward or backward extension rollers.



iv. Extension slot. It commonly adopts wet extension, featuring water shower after electric heat and infrared heat.



v. winding machine. Equips with single-plate winding machine, mainly applied to make into manual bundling strip.





5.     Highly efficient pp strap band production line







pp strap band thickness 0.45-0.8mm production line

pp strap band thickness 0.45-0.8mm production line



pp strap band thickness 0.45-0.8mm production line

 6.    Highly efficient pp strap band production line Packaging

pp strap band thickness 0.45-0.8mm production line



7.   Highly efficient pp strap band production line  Certificates





pp strap band thickness 0.45-0.8mm production line



8.     Highly efficient pp strap band production line Aftersales service



We provide the technical support for whole life time to customers based on our 18 years’ experience.



Looking foward international agents/distributors to joining us!



IF you want know more information about  Highly efficient pp strap band production line, please contact us directly, we will get back to you ASAP!
