Waste Pet Bottle Recycling Machine Granules Making Machine

US$ 15,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

pet bottle recycling machine

Automatic Grade:

Automatic

Sichuan Yazhijiang Plastic Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application pet bottle recycling machine

Automatic Grade Automatic

Production Capacity 500-3000Kg/H

Place of Origin Sichuan, China

Brand Name YZJ

Model Number YZJ-500/1000/2000/3000

Voltage 380V 50HZ(customerized)

Power(W) 80-100KW

Dimension(L*W*H) 35000*4000*3000

Weight 5-10 T

Certification ISO&SGS&CE&BV

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

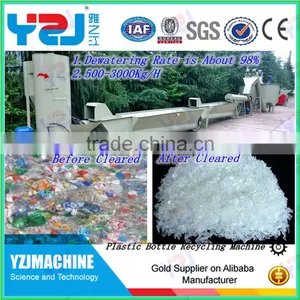

1.Production Capacity: 500-3000Kg/h;2. Ratio of removing water:≥ 98% ;3.We can design the machines exactly according to Customers' requirments.

Product Detail

Electric elements	SIEMENS TECO Schneider Omron Delixi
Machine material	Q235 or stainless steel 304

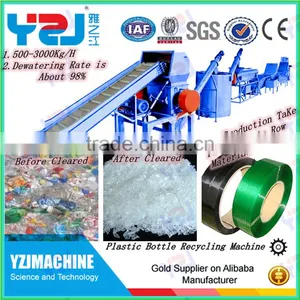

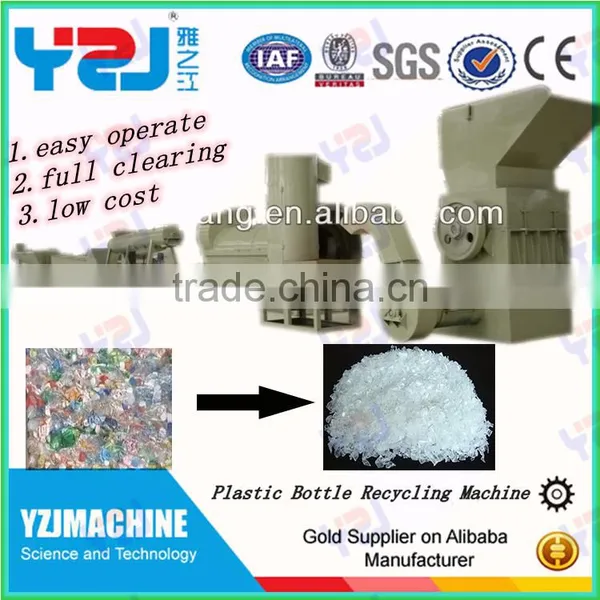

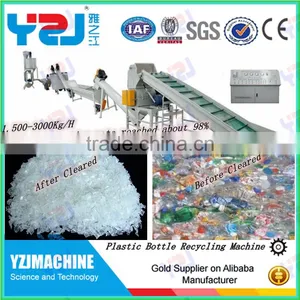

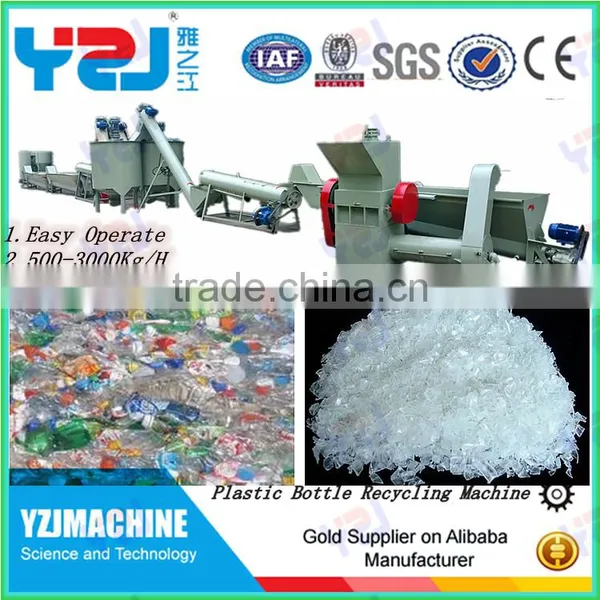

Other name	PET bottle recycling machine
Other name two	PET bottle recycling plant
Other name three	PET bottle washing line
product keywords	advanced technology double-shaft pet bottle recycling and washing machine

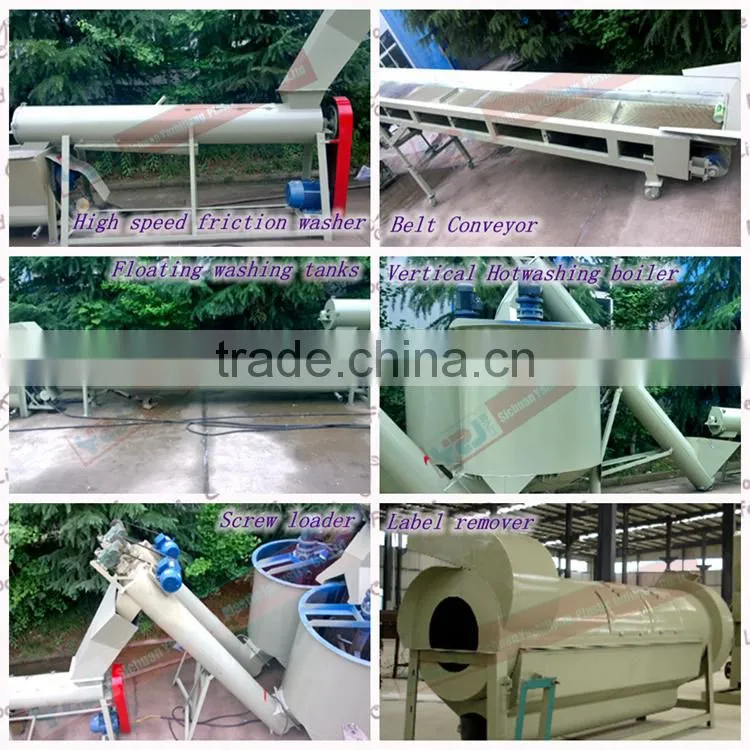

No	Units	Describtion
Model	YZJPET-500/1000/2000/3000	Capacity: 500/1000/2000/3000kg/h
1	Bale opener	Size of processing package:<1400mmx1600x1000mm
2	Belt Conveyor	PVC Belt,adjustable height,removable wheels
3	Label remover	Air blower type,removing ratio:>95%;
4	Sorting platform	With metal detector ,6000mm
5	Belt Conveyor	PVC Belt,adjustable height,removable wheels

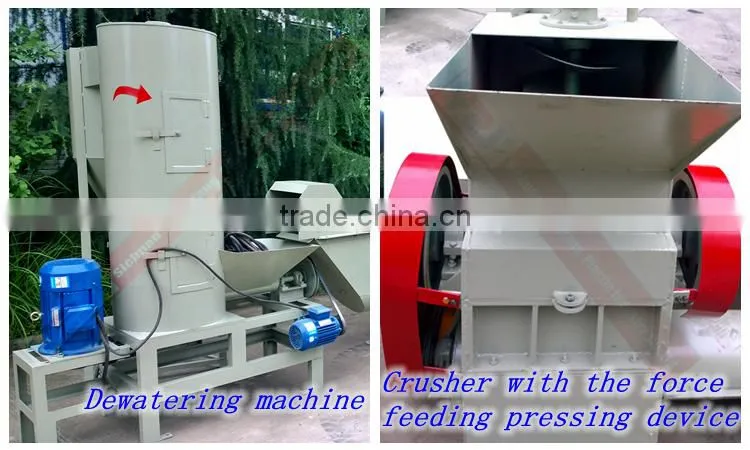

6	Crusher	with the force feeding pressing device
7	Screw feeder	3kw
8	Vertical Hotwashing boiler	1600m(dia)x2100m(height)
9	Screw feeder	3kw
10	High speed friction washer	4000mm
11	Floating washing tank	4000mmx1200mmx1500mm
12	Spraying washing tank	final washing
13	Dewatering machine	Ratio of removing water:≥ 98%
14	Air Pipe dryer	Heating by resistance
15	Storage silo	3500mm(height)x1200mm(diameter)
16	Control box	SIEMENS/TECO Inverter,Schneider/Omron/ Delixi contactor etc;
