Advanced Technology Water Bottle Recycling Machine Quality Assurance
- SHNAGHAI CHINA
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1000kg/h PLC Control System Waste Recycling Manufacturer
-
1000kg/h PP PE ABS Recycling Machines Price Manufacturer
-
1000kg/h PP Plastic Bag Recycling Unit Quality Assurance
-
Free Installation Energy Saving Plastic Bottle Recycling Machine With CE and ISO9001
-
Embossing Roller for Yzj Strapping Tape Making Machine
-
200kg/h Pet Strapping Band Production Line
Product Details
| Condition | New | Application | plastic recycling machine, Waste plastic granulator | |
| Automatic Grade | Automatic | Production Capacity | 300-2000kg/h | |
| Place of Origin | Sichuan, China | Brand Name | YZJ | |
| Model Number | YZJ160 | Voltage | Customer Standard | |
| Power(W) | 120KW | Dimension(L*W*H) | 12000/3600/2800 MM | |
| Weight | 8-15tons | Certification | ISO9001 | |
| Warranty | 1 Year, One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Detail
| Electric elements | SIEMENS TECO Schneider Omron Delixi |
| Machine material | Q235 or stainless steel 304 |
| Other name | PET bottle recycling machine |
| Other name two | PET bottle recycling plant |
| Other name three | PET bottle washing line |
| product keywords | pet resin of plastic bottle recycling machine |
Features:

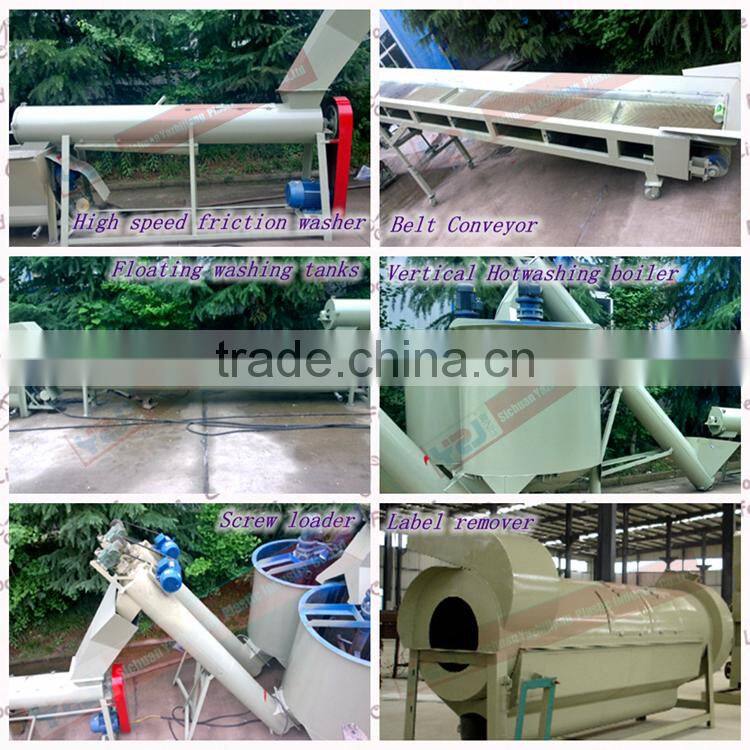

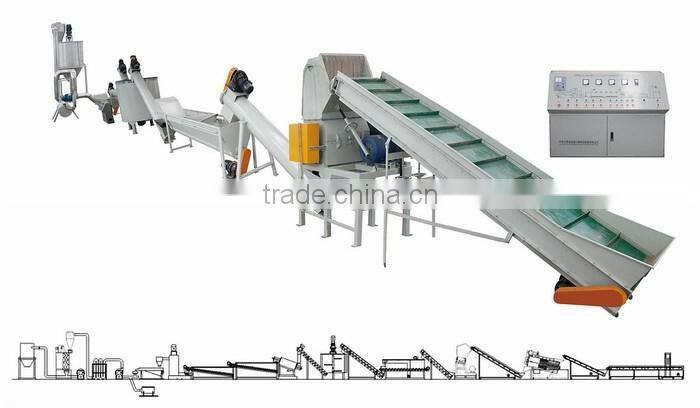

| No | Units | Describtion |
| Model | YZJPET-500/1000/2000/3000 | Capacity: 500/1000/2000/3000kg/h |
| 1 | Bale opener | Size of processing package:<1400mmx1600x1000mm |
| 2 | Belt Conveyor | PVC Belt,adjustable height,removable wheels |
| 3 | Label remover | Air blower type,removing ratio:>95%; |
| 4 | Sorting platform | With metal detector ,6000mm |
| 5 | Belt Conveyor | PVC Belt,adjustable height,removable wheels |

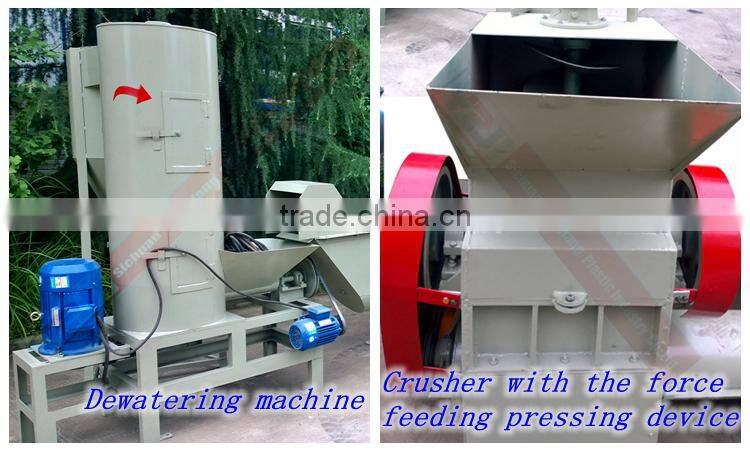

| 6 | Crusher | with the force feeding pressing device |
| 7 | Screw feeder | 3kw |
| 8 | Vertical Hotwashing boiler | 1600m(dia)x2100m(height) |
| 9 | Screw feeder | 3kw |
| 10 | High speed friction washer | 4000mm |
| 11 | Floating washing tank | 4000mmx1200mmx1500mm |
| 12 | Spraying washing tank | final washing |
| 13 | Dewatering machine | Ratio of removing water:≥ 98% |
| 14 | Air Pipe dryer | Heating by resistance |
| 15 | Storage silo | 3500mm(height)x1200mm(diameter) |
| 16 | Control box | SIEMENS/TECO Inverter,Schneider/Omron/ Delixi contactor etc; |
Sichuan Yazhijiang plastic industry Co., Ltd.(hereinafter refers to YZJ) , located in Ziyang " capital of China's energy-saving", covering an area of 80,000 square meter ,was established in 1995.
Company size and technology is in the leading position.
Over 20 years’ research and development, YZJ is becoming a professional supplier devoted to the designing & production of plastic machine and plastic product.
Our main products includes: Plastic recycling line,PP straps making machines.Especially,we applied technology patent for our light-weight PP straps making machines.Our products not only have good sales domestically but also with good reputation in overseas market.
Outstanding staff‘s Free travel provided by YZJ company
Provided Free technical guidance and installation for our customers from Vietnam
Exhibition abroad
After-sales service
1.We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer and 24 hours technical suport by email, calling and door to door service;
2.We run machines in our factory before delivery. Clients check machines running in our factory, and when machines arrive in Client’s factory, we will send our engineer to run machines in client’s factory too.
3. we provide service manual and maintenance instruction of main electric appliance,usage manual of equipment. 4.We also supply installation drawing of water, electricity, gas of equipment.
Our Engineers went to Vietnam to installation and commissioning for our customers.
Packaging and Shipping
We use Wooden case package, wooden pallet, PE plastic film package etc, which is safe and not easy to destroy. . shipping is by train, by railway, by air. Lading port is Shanghai port and so on. Pictures of cargo loading will be sent to every client to check and
keep recording.
Main products of our company
1.plastic strapping band making machine
2.waste plasitc bags recycling and granulator machine
3.YZJ plastic recygling machine
4.YZJwaste plastic granulator
5.plastic flakes crushing and washing line.
6.YZJ pp strap making machine
