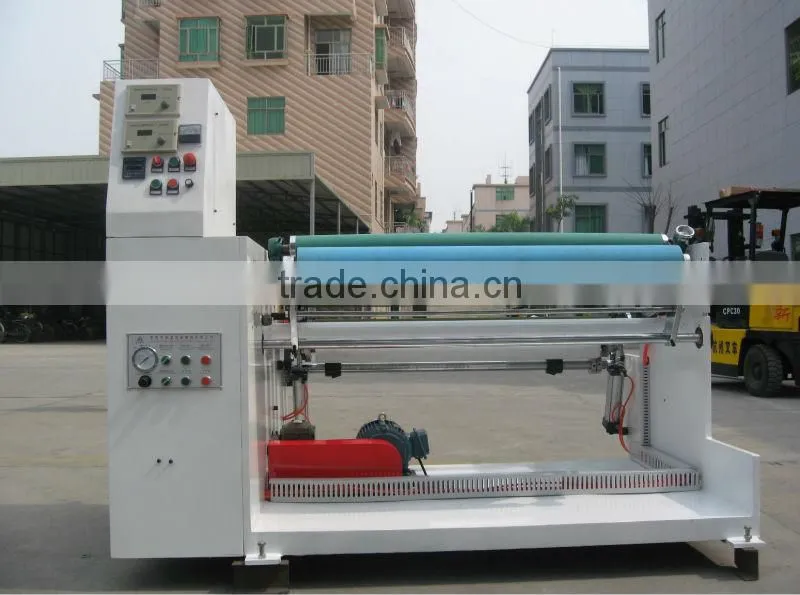

Help CenterYZJ801 Tape Winder
Related Products
-
YZJ Large Slitter Rewinder MachineUS$ 9,800 - 25,600MOQ: 1 Set -
BOPP Plastic Tape Sticking Plaster Small Winding MachineUS$ 9,800 - 21,000MOQ: 1 Set
-
YZJ202 BOPP Adhesive Tape Slitting MachineUS$ 8,000 - 18,600MOQ: 1 Set
-
YZJ Adhesive Tape Slitter MachineUS$ 8,000 - 18,600MOQ: 1 Set
-
YZJ210 BOPP Adhesive Tape Slitting MachineUS$ 8,200 - 21,000MOQ: 1 Set
Our company (YZJ) with 20 years manufacture and 7 years export experience, has mature technology and high quality products.
Application:
Suitable for rewinding operating of BOPP tapes, double-sided adhesive tapes, masking tapes and Kraft paper tapes.
Basic configuration:
1 Driving Motor…..………………….……… 5HP AC inverter 1 set
2 Unreeling shaft…..………………….…… 3" threaded chuck 1 set
3 Unreeling brake…..…………….………… Pneumatic 1 group
4 Driving speeder…..…………….………… 5HP inverter 1 set
5 Length meter…..………………..……..… Two-section electronic meter 1 group
6 Transmission embossing roller…….100×1450mm 1 piece
7 Transition roller..………………..……..…100×1450mm 2 piece
8 Rubber pressure roller……..….…….. 1 piece
9 Pneumatic system…………..………….. 2 groups
10 Winding shaft……………..………….… 3"pneumatic shaft 1 piece
11 Manual adjusting system…………… 1 group
12 Arched wheels…………………………..100×1450mm 1 group
13 Main frame……………………………… produced from £2mm A3 plates and supporting bars 1 group
Technical parameters:
Maximum effective width: 1300mm (or customized)
Maximum discharge diameter: 800mm
Maximum winding diameter: 300mm
Paper tube inner diameter: 3"
Unreeling brake: Pneumatic
Unreeling clutch: pneumatic or magnetic powder clutch
Mechanical speed: 0-100 M/min
Air pressure: 5kg/cm2
Power: three-phase 380V, 50HZ
Driving Motor: 5HP AC motor, frequency control
Sichuan Yazhijiang plastic industry Co., Ltd.(hereinafter refers to YZJ) , located in Ziyang " capital of China's energy-saving", covering an area of 80,000 square meter ,was established in 1995.
Company size and technology is in the leading position.
Over 20 years’ research and development, YZJ is becoming a professional supplier devoted to the designing & production of plastic machine and plastic product.
Our main products includes: Plastic recycling line,PP straps making machines.Especially,we applied technology patent for our light-weight PP straps making machines.Our products not only have good sales domestically but also with good reputation in overseas market.
Outstanding staff‘s Free travel provided by YZJ company
Provided Free technical guidance and installation for our customers from Vietnam
Exhibition abroad
More machines you may interested in:
1.waste plastic recycling machine 2.Thin and light pp strap making machine
3.plastic strap making machine 4.PET flakes making machine
For help you to choosing a proper machine and saving your time, please read these bellow guides carefully
1). what kinds of plastic machinery do you need? Dose it including washing and crushing machine?
2).What is the raw material? PP, PE, ABS, PVC or PET.
2). what capacity do you want? (Kg/h)
3). What is the max and min size of the finish products .For example, the size of the granules.
4) What is the electric device you need? Siemens, Omron or domestic?
5) When do you want the machine? (Times for delivery)
