Specifications
Cement Rotary Kiln Burner1. Easy to operate and maintain
2. Best performance
3. Perfect service after sale
4. ISO9000, BV
Cement Rotary Kiln Burner
Cement Rotary Kiln Burner Brief Introduction:
1. Cement Rotary kiln burner belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. metallurgy chemical kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcimine.
2. Cement Rotary kiln burner is used for calcimine of high aluminum vandal ochre in refractory material industry, calcimine of calotte and aluminum hydroxide in aluminum manufacturer, claiming of chrome sand ore and chrome powder ore in chemical plant.
Cement Rotary Kiln Burner Features:
1. Low pressure drop pre heaters.
2. Raw mill equipped with High efficiency separator.
3. Raw Meal blending in CFC silo.
4. Pre calciner suitable to work with alternative fuels.
5. Inlet & discharge fitted with efficient seals.
6. Benchmark cooler design.
7. Low Fuel Consumption.
Cement Rotary Kiln Burner Application:
The Cement Rotary kiln burner is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process. Materials produced using rotary calcination kilns include:
Cement
Lime
Refractories
Metakaolin
Titanium dioxide
Alumina
Vermiculite
Iron ore pellets
They are also used for roasting a wide variety of sulfide ores prior to metal extraction.
Cement Rotary Kiln Burner Working Principle:
1) With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.
3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.
Cement Rotary Kiln Burner Main Technical Parameters:
| Model(mm) | Shell size | Capacity(t/h) | Rotating speed(r/min) | Power(kw) | Weight(t) | ||
| Dia.(mm) | Length(mm) | Slope(%) | |||||
| 1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| 1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| 1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| 1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| 2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| 2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| 2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| 2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| 2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.4 | 55 | 196.29 |
| 2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| 2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
| 3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 |
| 3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.448 | 100 | 237 |
| 3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
| 3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 |

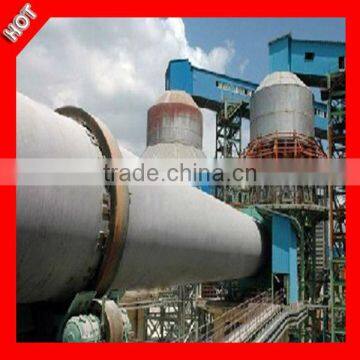

Cement Rotary Kiln Burner Display:
