Specifications
Horizontal Lim Rotary Kiln1.High reputation
2.High level automatic running
3.Perfect service
4.With ISO9001 certificate
High Durability and Energy Saving Horizontal Lim Rotary Kiln
Introduction of Horizontal Lim Rotary Kiln:
1. Horizontal Lim Rotary kiln is the main equipment of calcining the cement clinker. The characteristics of horizontal lim rotary kiln are with simple structure, convenient and reliable control of the producing process,with little wearing parts and high running rate.
2. Horizontal Lim Rotary kiln is the equipment calcining the high grad cement in the cement factory.
3. Horizontal Lim Rotary kiln is widely used in the metallurgy,chemical industry,construction and other industries.
Applications of Horizontal Lim Rotary Kiln:
1. Horizontal Lim Rotary kiln is an ideal machine for calcining high-grade cement in cement plants. It is also commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a horizontal lim rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.
2. Horizontal Lim Rotary kiln, which is also called rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, the rotary kiln falls into cement kilns, metallurgy chemical kilns, and lime kilns.

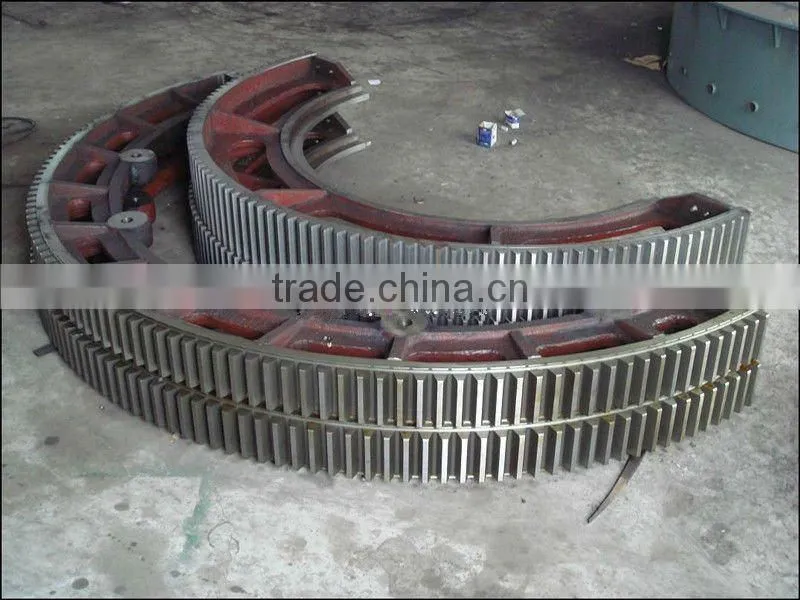

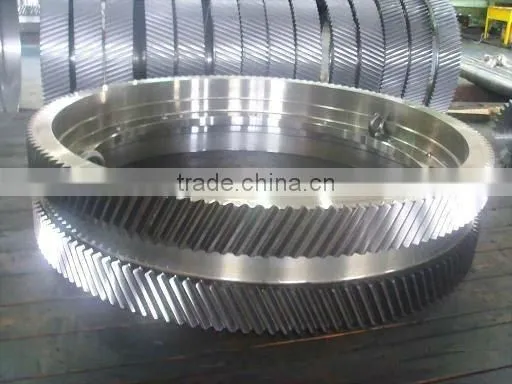

Spare Parts of Horizontal Lim Rotary Kiln:
Features of Horizontal Lim Rotary Kiln:
1. Through technological innovation, our horizontal lim rotary kiln is designed with international leading wheel catch device, high precision plunger metering pump, high accuracy speed control valve and contact graphite block sealing device, etc.
2. In order to improve machinery automation, an industrial computer is used for showing the calcining condition, and a fluorescent screen is adopted for showing the simulated process flows. An infrared scanner is utilized for transmitting the calcining condition to the computer.
3. These new technologies provide our horizontal lim rotary kiln with strong visual sense, convenient operation and reliable performance. They help stabilize thermal regulation and improve operation efficiency.
Main Technical Parameter of Horizontal Lim Rotary Kiln:
| Model(mm) | Shell size | Capacity(t/h) | Rotating speed(r/min) | Power(kw) | Weight(t) | ||
| Dia.(mm) | Length(mm) | Slope(%) | |||||
| 1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| 1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| 1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| 1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| 2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| 2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| 2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| 2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| 2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.4 | 55 | 196.29 |
| 2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| 2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
| 3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 |
| 3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.448 | 100 | 237 |
| 3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
| 3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 |

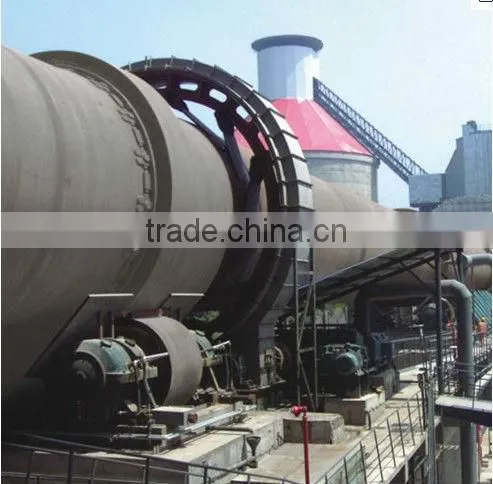

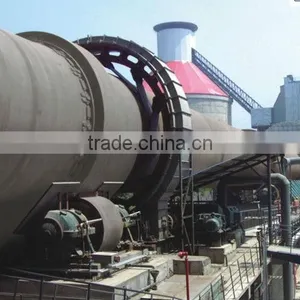

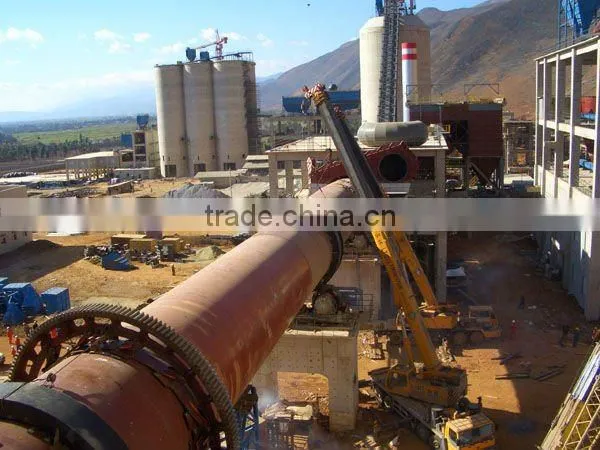

Scene Rendering of Horizontal Lime Rotary Kiln:
