Specifications
Industry Rotary Kiln1.High precision temperature control
2.High level automatic running
3.Perfect service
4.ISO9000, BV
High Durability and Nice Performance Industry Rotary Kiln
Introduction of Industry Rotary Kiln:
1. Industry Rotary kiln is the main equipment of calcining the cement clinker. The characteristics of industry rotary kiln are with simple structure, convenient and reliable control of the producing process,with little wearing parts and high running rate.
2. Industry Rotary kiln is the equipment calcining the high grad cement in the cement factory.
3. Industry Rotary kiln is widely used in the metallurgy,chemical industry,construction and other industries.
Applications of Industry Rotary Kiln:
1. Industry Rotary kiln is an ideal machine for calcining high-grade cement in cement plants. It is also commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find an industry rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.
2. Industry Rotary kiln, which is also called rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, the rotary kiln falls into cement kilns, metallurgy chemical kilns, and lime kilns.
Features of Industry Rotary Kiln:
1. Through technological innovation, our Industry rotary kiln is designed with international leading wheel catch device, high precision plunger metering pump, high accuracy speed control valve and contact graphite block sealing device, etc.
2. In order to improve machinery automation, an industrial computer is used for showing the calcining condition, and a fluorescent screen is adopted for showing the simulated process flows. An infrared scanner is utilized for transmitting the calcining condition to the computer.
3. These new technologies provide our industry rotary kiln with strong visual sense, convenient operation and reliable performance. They help stabilize thermal regulation and improve operation efficiency.
Main Technical Parameter of Industry Rotary Kiln:
| Model(mm) | Shell size | Capacity(t/h) | Rotating speed(r/min) | Power(kw) | Weight(t) | ||
| Dia.(mm) | Length(mm) | Slope(%) | |||||
| 1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| 1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| 1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| 1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| 2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| 2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| 2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| 2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| 2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.4 | 55 | 196.29 |
| 2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| 2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
| 3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 |
| 3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.448 | 100 | 237 |
| 3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
| 3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 |

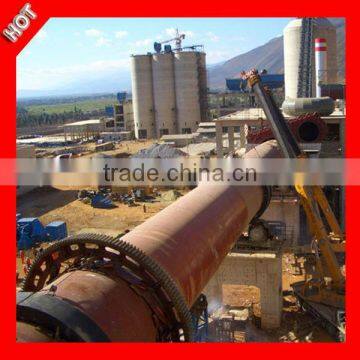

Scene Rendering of Industry Rotary Kiln:
