Specifications
Vibrating Screen1. Advance technics and standard testing
2. Environmental machine
3. Perfect service after sale
4. With ISO

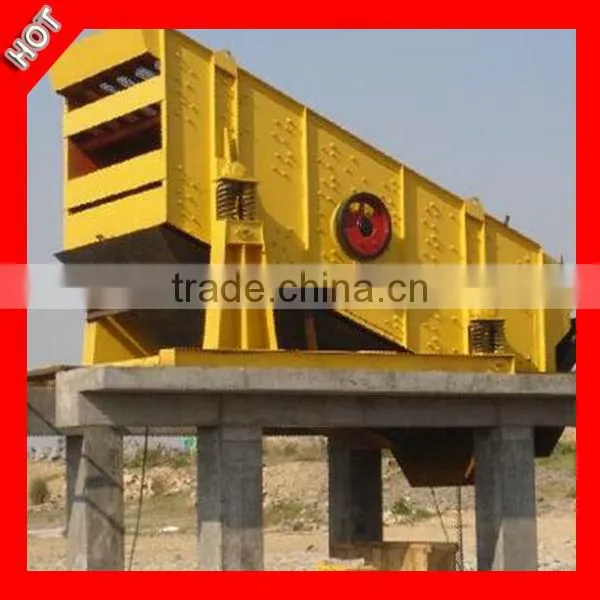

Best Performance Vibrating Screen
Brief Introduction of Vibrating Screen:
1. This series of vibrating screen moves round, it is specially designed for quarry to separate stone into different sizes. It also widely used for classification in mining, construction materials, transportation and energy etc. The series of YK, YZ is the latest model in China. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down the long time. This machine bears the features of different specifications, reliability, strong exciter, high efficiency, little noise, durability, convenient maintenance and safety.
2. This series of Circular-motion Vibrating Screen is specially designed for stone pit to sieve some different sizes of stone. It also applies to coal dressing, ore dressing, building-material electric and chemical industries etc as products gradating.
Types of Vibrating Screen:
There are two types vibrating screen which are YZ and YK.YK series is a kind of the latest model at home. It adopts box-vibrating exciting, eccentric block and tyre coupler. And it makes a feature of advanced construction, strong vibrating force, low vibrating noise, easy maintenance, sturdy and durable.
Working Principle of Vibrating Screen:
1. The YK series vibrating screen is for its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.
2. The Vibrating Screen is a single-axis circular-movement inertial vibrating screen, the working of circular vibrating screen depends on inertial motor and inertial strength produced by eccentric plate, because of the vibration of screen box, the materials are threw out, so that materials of certain size go through the screen mesh, and the screening aim is realized. Since the magnetic exciter is installed on the gravity center of screen box, the two long elliptical axis form a shape like a Chinese character, and the upper of long elliptical axis in inlet end is in the same direction with the outlet, which favors the spread of materials which is in the screen box.
Main Technical Parameter of Vibrating Screen:
Model |
Layers |
Sieve Pore Size(mm) |
Capacity(t/h) |
Vibration Power(r/min) |
Motor Power |
Sieve Loft(°) |
Sieve Mesh Size(mm) |
Weight(kg) |
2YK1030 |
2 |
4-50 |
8-60 |
800-970 |
0.75 |
20 |
1000×3000 |
3500 |
3YK1030 |
3 |
4-50 |
10-70 |
800-970 |
1.1 |
20 |
1000×3000 |
3850 |
2YK1230 |
2 |
4-50 |
12-78 |
800-970 |
5.5 |
20 |
1250×3000 |
4200 |
3YK1230 |
3 |
4-50 |
13-80 |
800-970 |
5.5 |
20 |
1250×3000 |
4600 |
2YK1237 |
2 |
4-50 |
15-86 |
800-970 |
7.5 |
20 |
1200×3700 |
4600 |
3YK1237 |
3 |
4-50 |
16-90 |
800-970 |
7.5 |
20 |
1200×3700 |
5200 |
2YK1540 |
2 |
5-50 |
20-125 |
800-970 |
11 |
20 |
1500×4000 |
5890 |
3YK1540 |
3 |
5-50 |
21-125 |
800-970 |
11 |
20 |
1500×4000 |
6700 |
2YK1545 |
2 |
5-50 |
22-150 |
800-970 |
15 |
20 |
1500×4500 |
6330 |
3YK1545 |
3 |
5-50 |
22-150 |
800-970 |
15 |
20 |
1500×4500 |
6800 |
2YK1548 |
2 |
5-50 |
22.5-162 |
800-970 |
15 |
20 |
1500×4800 |
6980 |
3YK1548 |
3 |
5-50 |
22.5-162 |
800-970 |
15 |
20 |
1500×4800 |
7600 |
2YK1848 |
2 |
5-80 |
25-206 |
750 |
15 |
20 |
1800×4800 |
9080 |
3YK1848 |
3 |
5-80 |
32-276 |
800-970 |
18.5 |
20 |
1800×4800 |
9600 |
2YK1860 |
2 |
5-80 |
32-312 |
800-970 |
18.5 |
20 |
1800×6000 |
10150 |
3YK1860 |
3 |
5-80 |
32-312 |
800-970 |
22 |
20 |
1800×6000 |
10840 |
Warranty of Vibrating Screen:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
