Description of Aluminum Ash Ball Mill:
Aluminum Ash Ball Mill used in mineral beneficiation area usually as crushing and grinding before kinds of minerals grade separation;grinding coal ash(or sand,stone) into required fineness in aerated concrete,then use coal ash pump send into the slurry tank storage respectively;In addition, the energy saving ball mill can aim-at all kinds of ores materials to grind,grinding fineness can adjust from 25 to 200 mesh,according to the material and discharging methods, can divide into wet ball mill and dry grate ball mill.

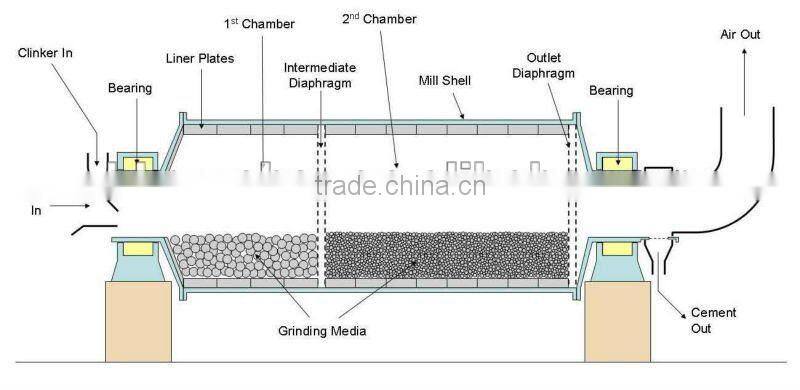

Working Principle of Aluminum Ash Ball Mill:
Aluminum Ash Ball Mill is an efficient machine for fine powder grinding and key equipment for grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other materials.
Aluminum Ash Ball Mill Application:
1.Aaluminum Ash Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns.
2.To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced.
3.Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.
4. Aluminum Ash Ball Mill is an efficient tool for grinding many materials into fine powder.
5.The Aluminum Ash Ball Mill is used to grind many kinds of mine and other materials, or to select the mine.
6. Aluminum Ash Ball Mill is widely used in building material, chemical industry, etc.
7.There are two ways of grinding: the dry process and the wet process.
8.It can be divided into tabular type and flowing type according to different forms of discharging material.

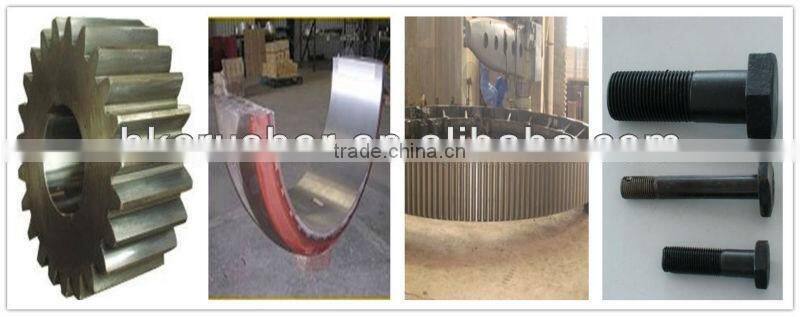

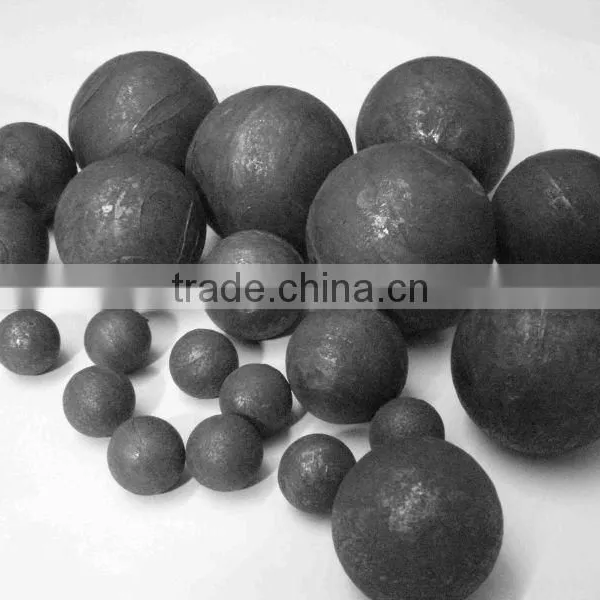

Spare parts
Technical Parameter of Aluminum Ash Ball Mill:
| Model | Cylinder Rotating Speed (r/min) | Ball weight(t) | Feeding Size (mm) | Discharging Size(mm) | Capacity (t/h) | Power(kw) | Weight(t) |
|---|---|---|---|---|---|---|---|
| 900×1800 | 36~38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| 900×3000 | 36 | 2.7 | < 20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| 1200×2400 | 36 | 3 | < 25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| 1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| 1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| 1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| 1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| 2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| 2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 54 |
| 2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | <25 | 0.074-0.4 | -- | 800 | 137 |
FAQ:
1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.
Now, please click the following contact to send us email for best offer and more details !
↓↓↓
