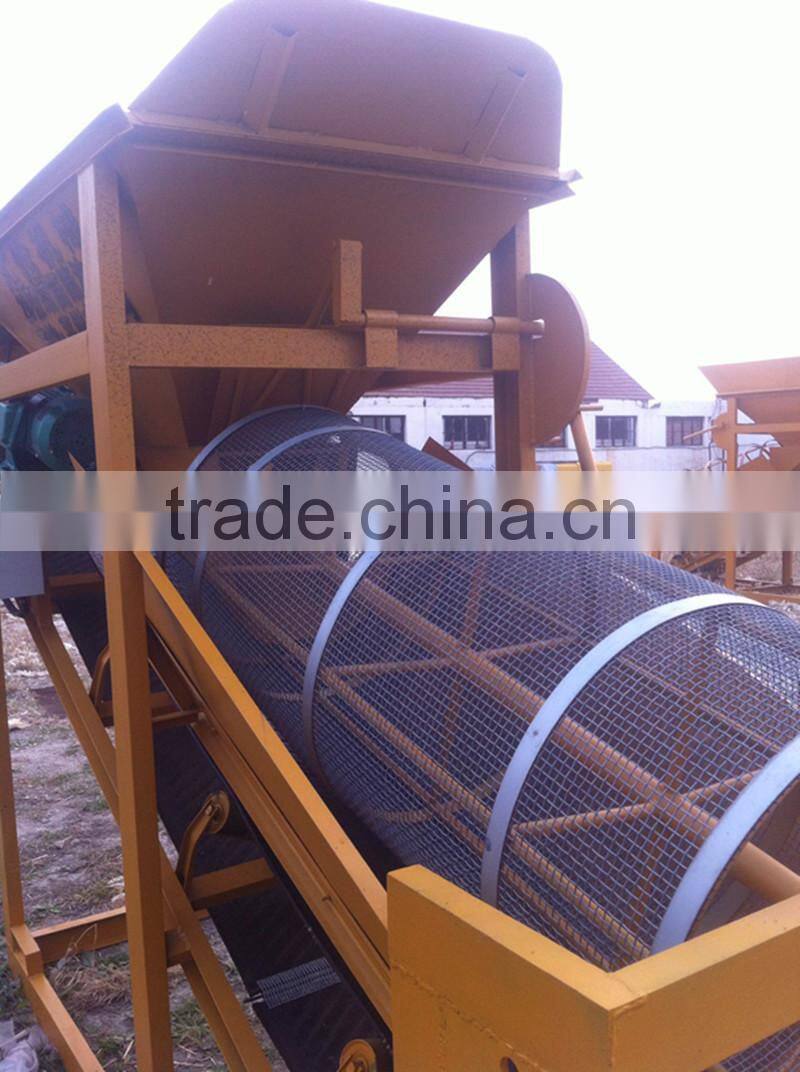

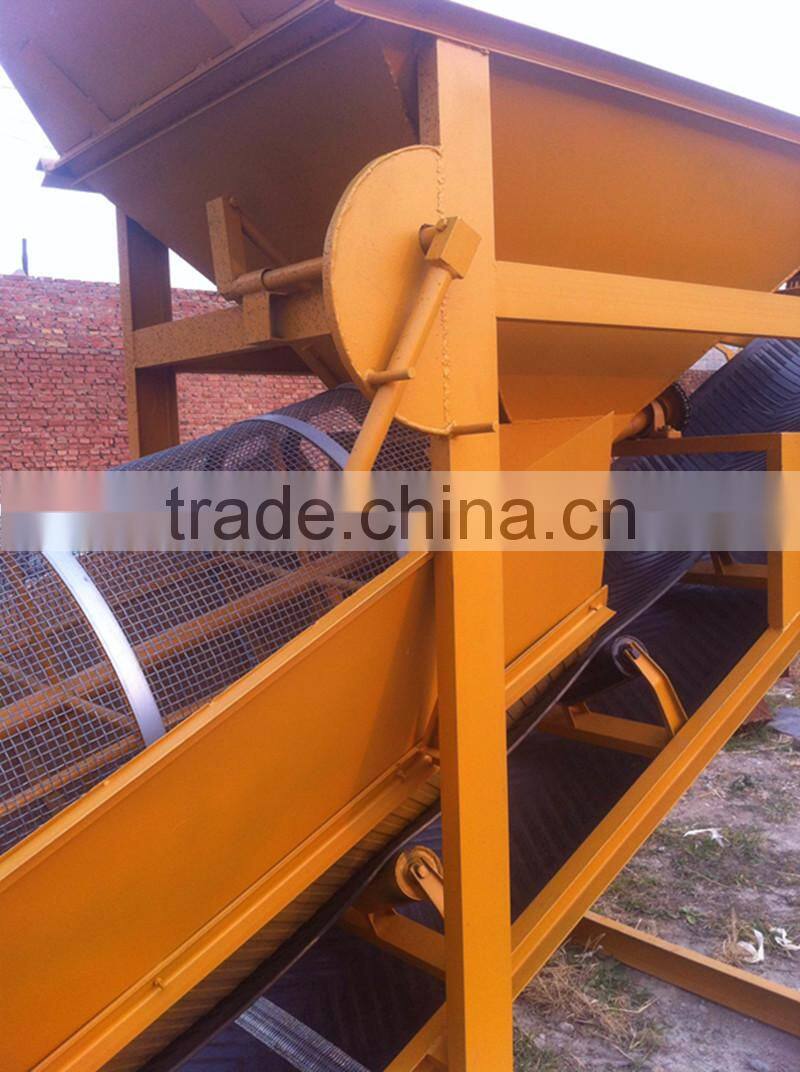

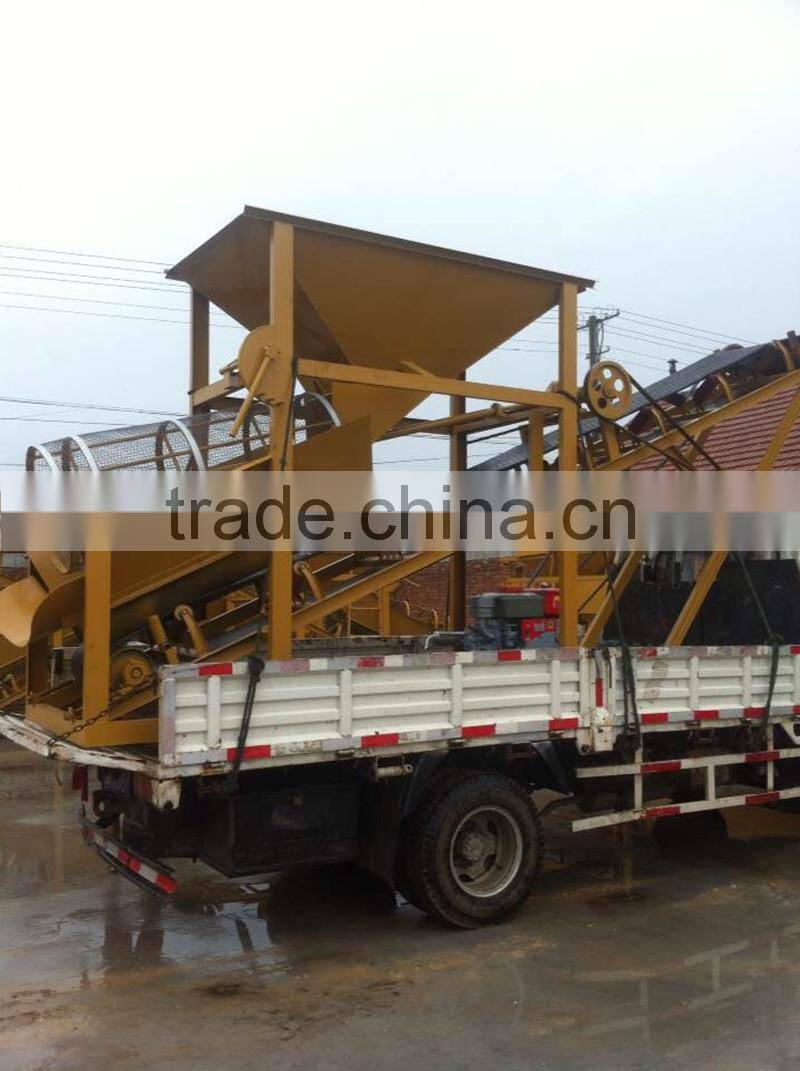

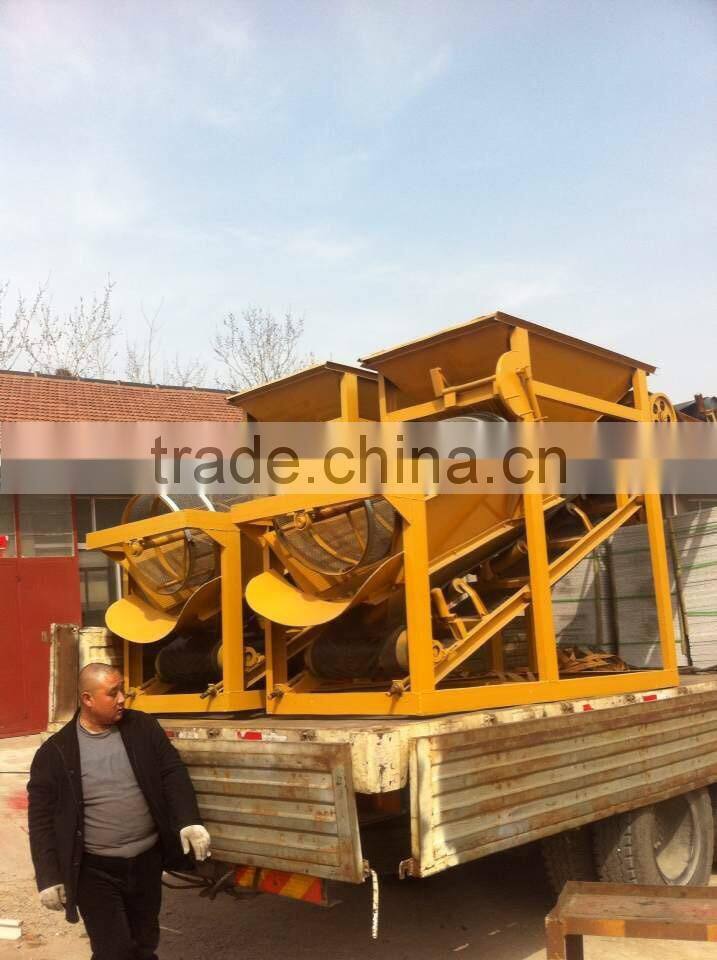

Widely used in power plants and construction site Diesel sand screener machine manufacturer
The description of diesel sand screener machine manufacturer:

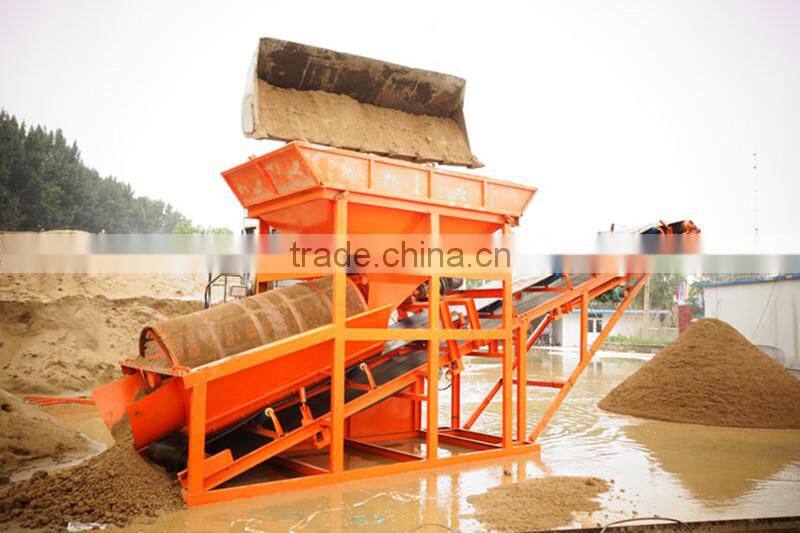

Diesel Roller coal, coke and sand screener machine is widely used in power plants, coking plants, building materials, metallurgy, chemical, mining and other industries, roller coal,coke and sand screener machine improve the output and reliability of screening system. Our roller coal,coke and sand screener machine is suitable for screening different materials and coal, coke, lime, etc.wet material which is easy to jam. The mesh size can be customized according to your requriement, usually our mesh size is 1mm-50mm.
Feature of diesel sand screener machine manufacturer:
1, adopt rolling conveyor, small friction, light wear, not easy to jam.
2, smooth running, no vibration, low noise.

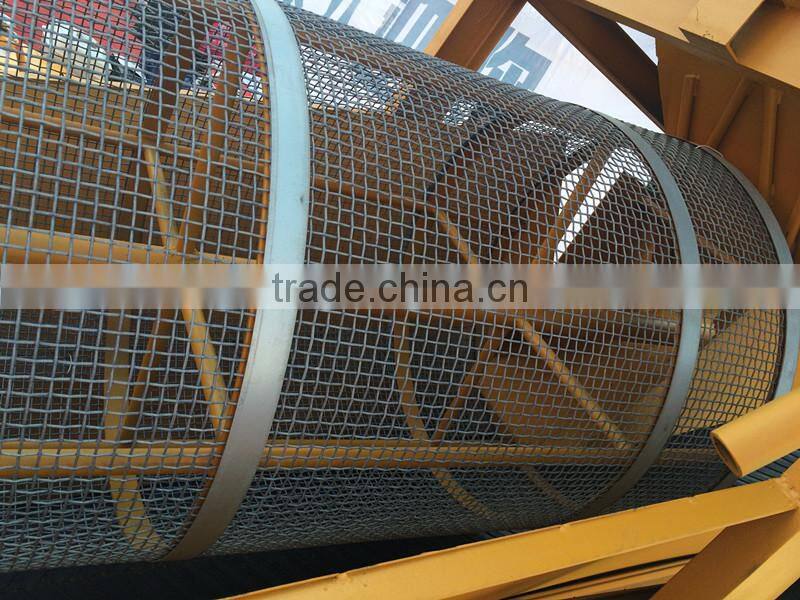

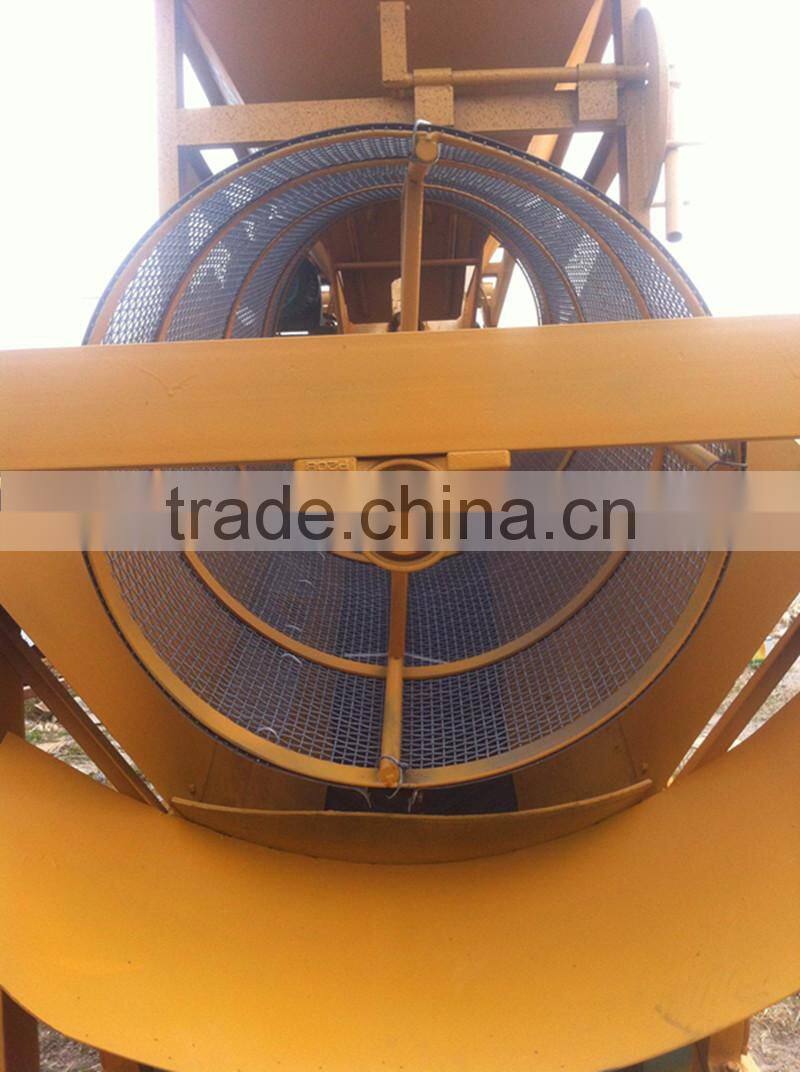

3. The internal screen parts adopt seperate design, simple structure, quick replacement and easy maintenance.
4, the roller body adopt sealed structure, no dust, no pollution.
5, safe and reliable operation, the use of slow transmission, high transmission efficiency, small equipped with power, low energy consumption, energy-saving effect.
6, can supply different screen material, mesh size, high efficiency, long life
The technical data of diesel sand screeener machine manufacturer:
| Model | GSE-16 |
| Hopper(L*W) | 1600*1000mm |
| Screen | φ60*1000mm |

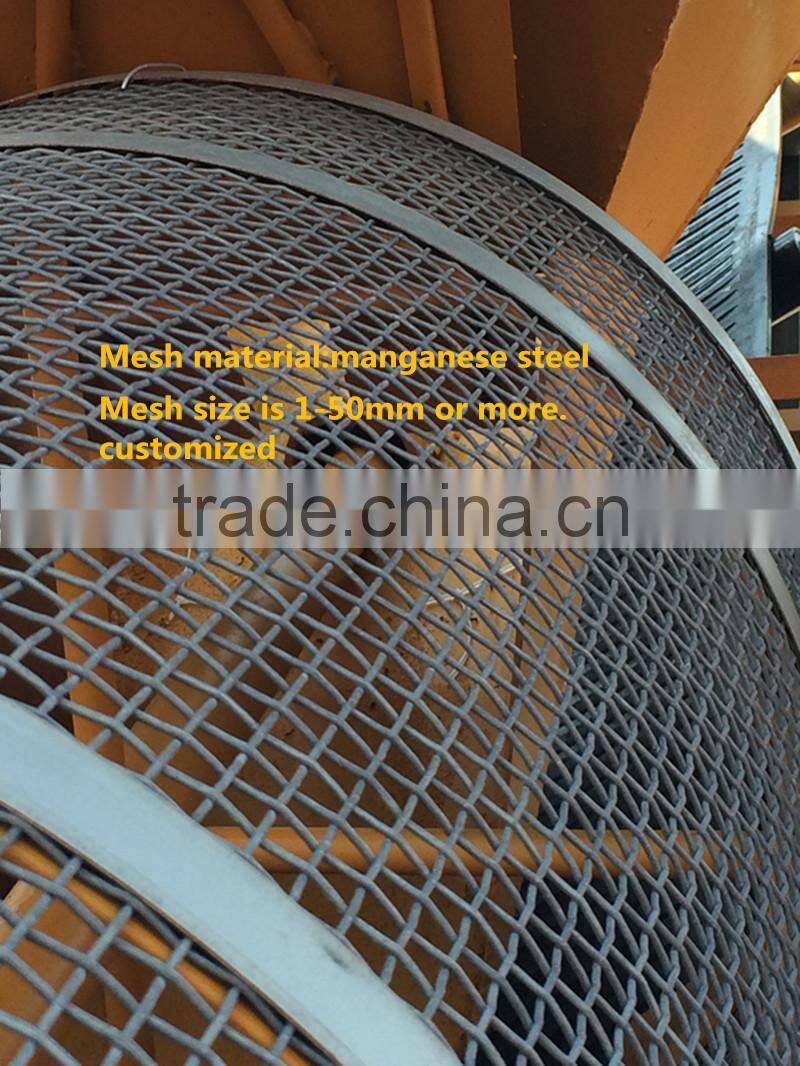

| Mesh size | 1-50mm or more(customized) |
| Engine | electric motor |

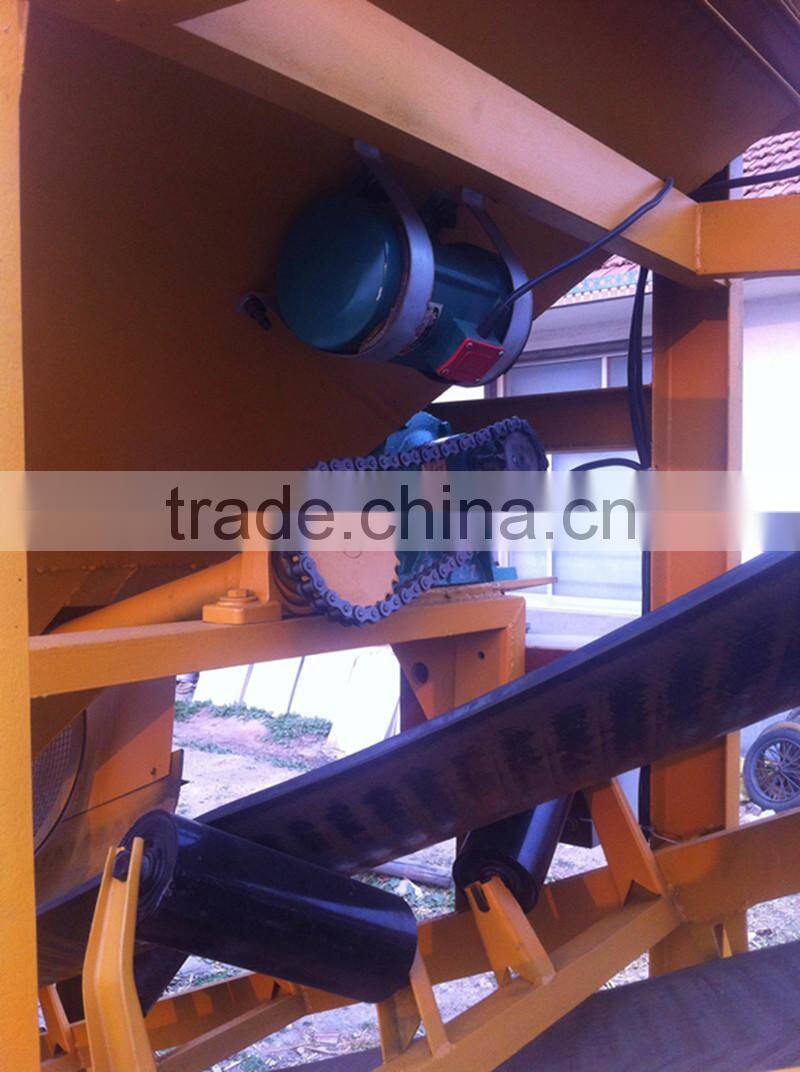

| Motor power | 1.5kw+1.5kw+0.37kw |
| width of the conveyer belt | 550mm |
| Output | 20m3/hour |
| Overall dimension | 3300*1000*2150mm |
| Hot Model | GSE-20 |
| Hopper(L*W) | 2000*1100mm |
| Screen | φ60*1500mm |
| Mesh size | 1-50mm or more(customized) |
| Engine | electric motor |
| Motor power | 2.2kw+2.2kw+0.37kw |
| width of the conveyer belt | 550mm |
| Output | 25m3/hour |
| Overall dimension | 4500*1100*2200mm |
| Model | GSE-25 |
| Hopper(L*W) | 2500*1150mm |
| Screen | φ60*1500mm |
| Mesh size | 1-50mm or more(customized) |
| Engine | electric motor or diesel engine |
| Motor power | 5.5kw+0.37kw |
| width of the conveyer belt | 550mm |
| Output | 30m3/hour |
| Overall dimension | 6000*1150*2600mm |
| Hot Model | GSE-25 |
| Hopper(L*W) | 2500*1150mm |
| Screen | φ60*1500mm |
| Mesh size | 1-50mm or more(customized) |
| Engine | diesel engine |
| Diesel power | 18HP |
| width of the conveyer belt | 550mm |
| Output | 25m3/hour |
| Overall dimension | 6000*1150*2600mm |
| Model | GSE-30 |
| Hopper(L*W) | 3000*1450mm |
| Screen | 2000*800mm |
| Mesh size | 1-50mm or more(customized) |
| Engine | Electric motor |
| Motor power | 7.5kw |
| width of the conveyer belt | 800mm |
| Output | 60-80m3/hour |
| Overall dimension | 7500*1450*2650mm |
| Model | GSE-50 |
| Hopper(L*W) | 3800*1700mm |
| Screen | 2500*800mm |
| Mesh size | 1-50mm or more(customized) |
| Engine | Electric motor |
| Motor power | 11kw |
| width of the conveyer belt | 1000mm |
| Output | 100-120m3/hour |
| Overall dimension | 7500*1450*2650mm |
