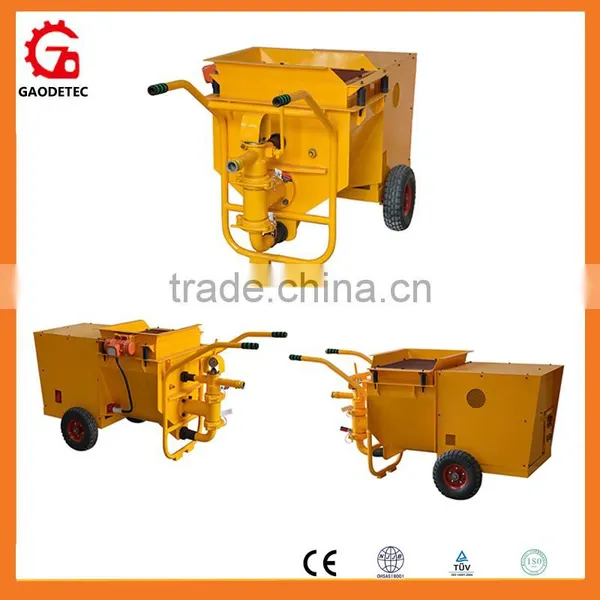

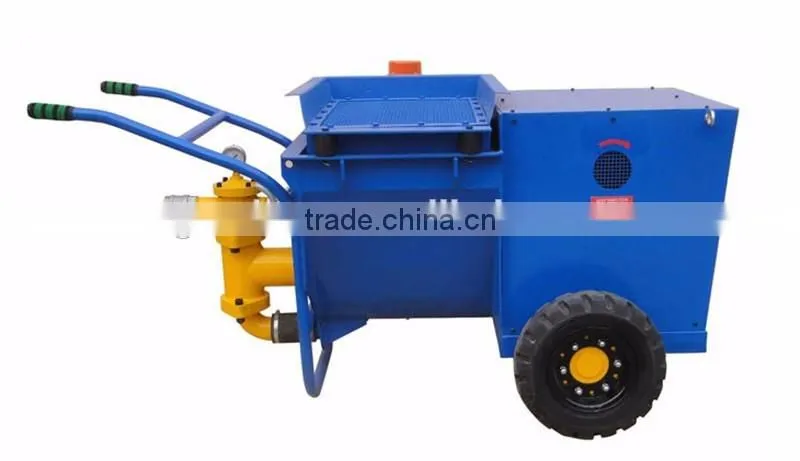

2017 New type ready-mix cement mortar spraying machine on sale
GMP35/30 piston mortar pump is a piston pump with one single cylinder & single acting, mainly was designed for conveying and spraying mortar or plaster. This pump has compact structure, reliable operation, low failure rate, convenient cleaning, easy maintenance and high pumping pressure etc. advantages, so it has widely been using for mortar spraying, pumping and grouting in tunnel excavation and maintenance, mine engineering, constructing dams, bridges and foundation treatment etc. projects. The pump also has been using for mortar and putty pumping and spraying civil buildings.
GMP35/30 cement mortar spraying machine features:
- single cylinder & single-acting, ball valve, quick clamp connection, operation and cleaning conveniently;

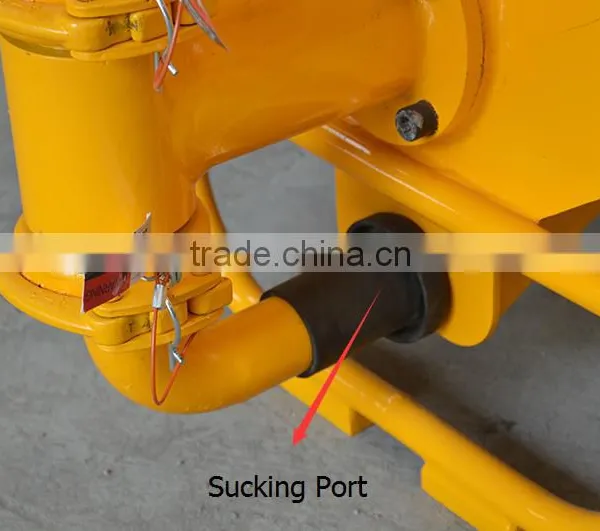

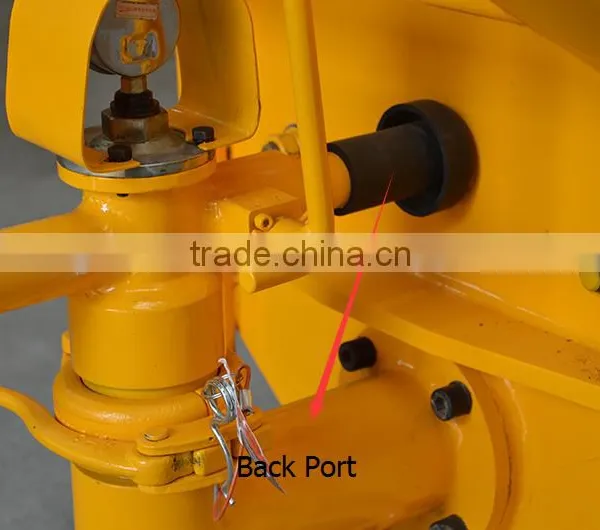

- Adopt special design rubber parts to connect to the feeding and back port, easy to disassemble;
- V belt and gear transmission, high efficiency, low failure rate;
- The special design of the working valve chamber ensures the mortar flow easily, small resistance, no deposition;

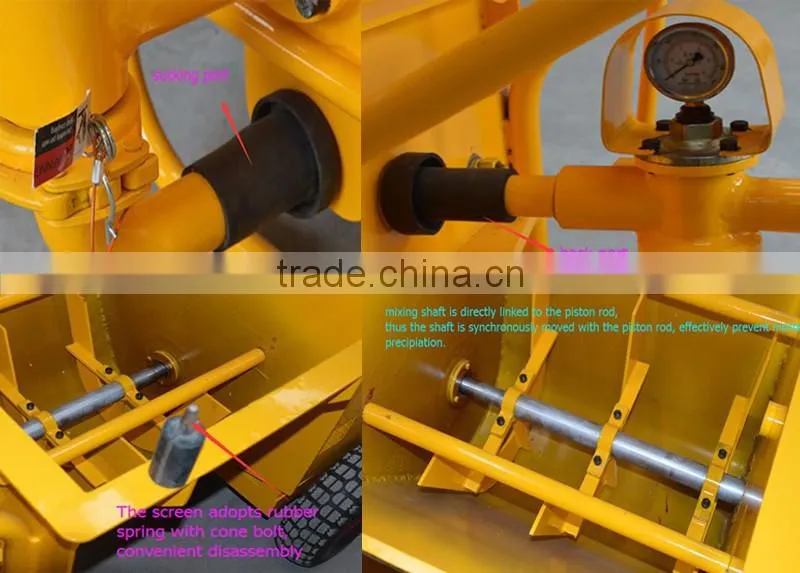

- The screen adopts rubber spring with cone bolt installation, convenient disassembly;
- The mixing shaft in the hopper is directly linked to the piston rod, thus this shaft is synchronously moved with the said piston rod effectively prevent mortar precipitation;

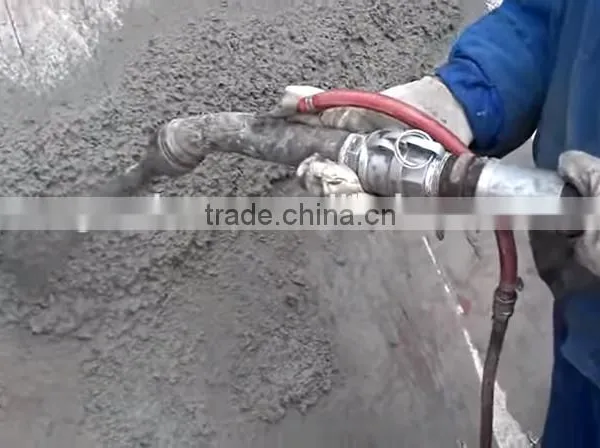

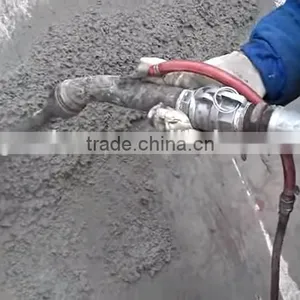

- Equipped with special mortar nozzle, making spraying operation more smoothly, continuously and reducing the rebound effectively.
GMP35/30 cement mortar spraying machine technical data:
Item | Value |
Working Pressure | 0~30bar |
Output | 35L/min |
Reciprocate | 100 times/minute |
Stroke×Travel | Φ75mm×85mm |
Max.material diameter(EPS Particle ) | 6mm |
Material consistency | ≥60mm |

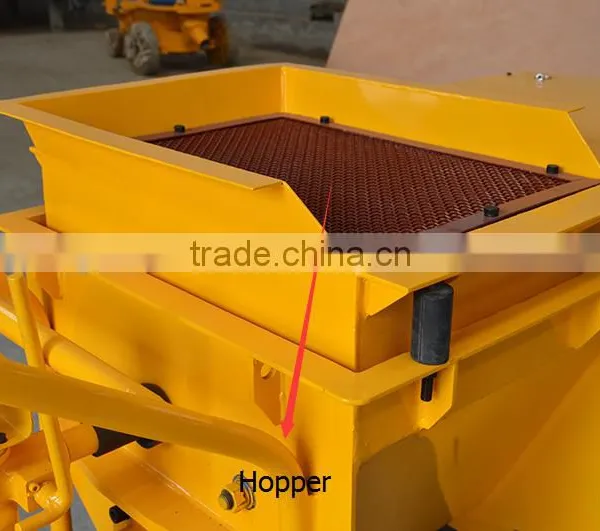

Hopper Volume | 140L |
Main Driving Motor | Y2-114M-4 4Kw |
Horizontal transport distance | 80m |
Vertical delivery distance | 30m |
Dimension(L*W*H) | 1940×895×960mm |
Weight | 385kg |
Other mortar pump for option
GMP50/40 electric mortar grouting pump

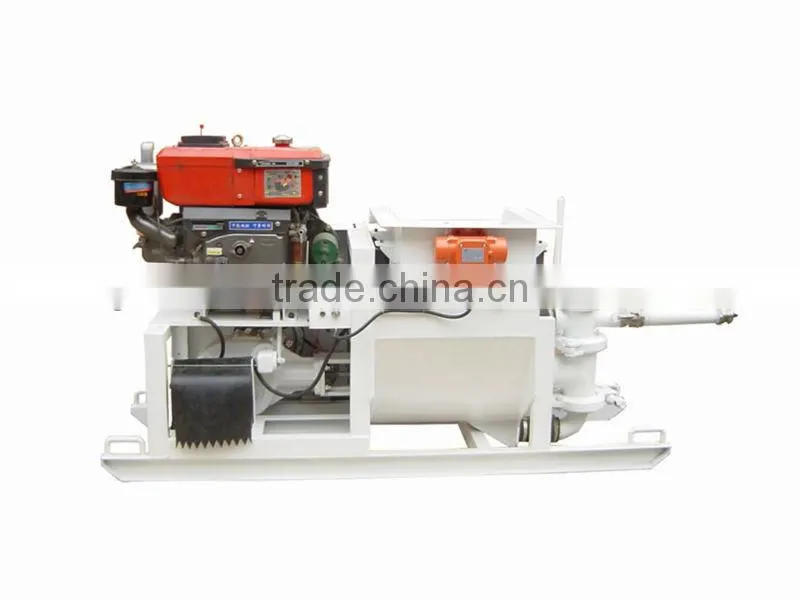

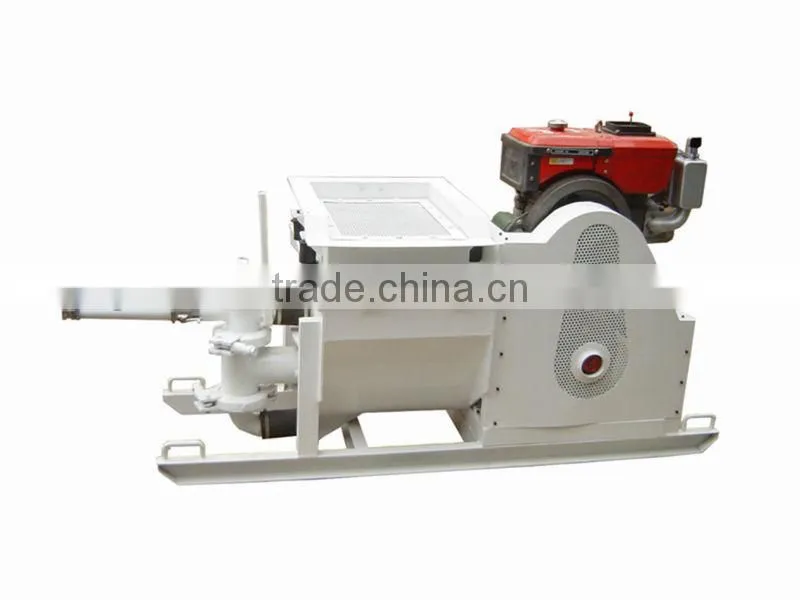

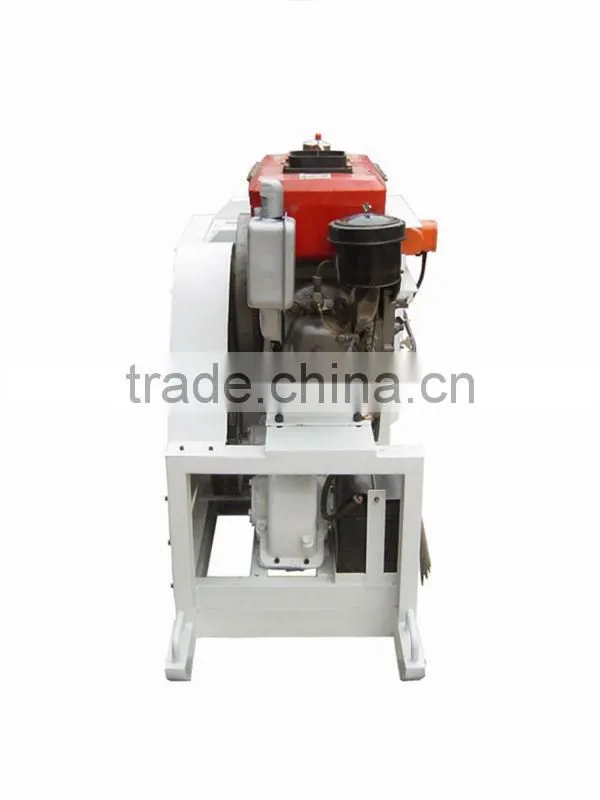

GMP50/40 diesel mortar grouting pump
GMP35/30 cement mortar spraying machine package:

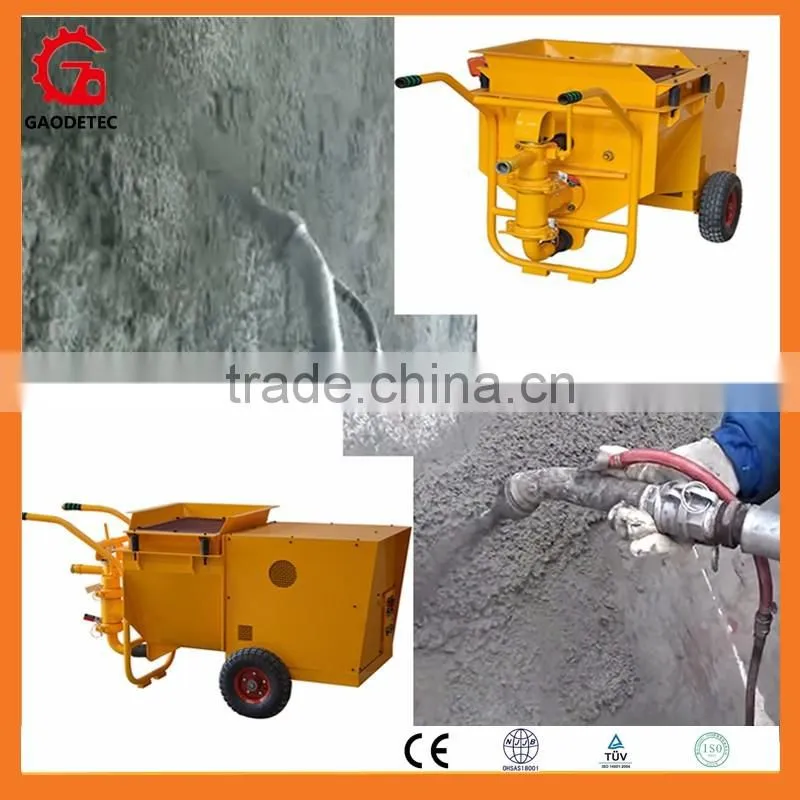

GMP35/30 cement mortar spraying machine Application:
Our Workshop:
Customers:
Certificate:
