Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > GEC New Design GDD Series Slurry Pump for Shield Tunneling Machine

GEC New Design GDD Series Slurry Pump for Shield Tunneling Machine

US$ 39,880 - 115,980 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

GEC

Model Number:

GDD

Contact Supplier Request Quote Chat Now

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name GEC

Model Number GDD

Theory Other, self-suction

Structure Other, plunger pump

Usage Other, trenchless drill field

Power Hydraulic

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Other, directional drilling

Choose GEC, choose high quality!

GEC New Design GDD Series Slurry Pump for Shield Tunneling Machine

Slurry Pump for Shield Tunneling Machine Brief Introduction:

HDD series mud pumps use hydraulic power convert hydraulic energy into the drive that

can convey high pressure mud, self-priming piston pump, no rotating parts, piston linear

motion completely free.

HDD series mud pump can be used in all kinds of project, whether the high medium

is water or other medium.

Slurry Pump for Shield Tunneling Machine Production Features:

1. High reliability: no rotating parts, less moving parts, free maintenance time is long.

2. Excellent wear resistance and very high self-lubricating capability:

When the pump stops, let pump running to evacuate the medium, if so, prevent medium

in frozen in the pump, and protect the pump body, greatly reduces the operating costs.

3. When the input power less than the max. output power, HDD series mud pump can

automatically adjust the output power, and not damage to the trenchless rig hydraulic

system and the HDD mud pump.

4. High integration: small volume, light weight, work in the original hydraulic system, it takes

only very small installation space, (only need hydraulic pipe connect ).

Slurry Pump for Shield Tunneling Machine Application:

HDD Hydraulic Drive Trenchless Mud Pump uses hydraulic source of the machines to supply motive

power, can be widely applied in Trenchless drilling field, such as Trenchless directional drill; Shield

tunneling machine; Tube push bench; Rotary drilling rig; Wagon drill etc.

Slurry Pump for Shield Tunneling Machine Technical Specification:

Type	Output L/min	Pressure	Demension	Weight	Hydraulic System
Type	Output L/min	MPa	LWH mm	kg	Output (L/min)	Working pressure (Mpa)	Pressure(Mpa)
HDD45/5	45	5	518162381	45	20	12	21
HDD60/2	60	2	518162381	20	12	12	21
HDD160/6	160	6	518162589	80	50	20	21
HDD180/6	180	6	518169596	86	55	20	21
HDD250/6	250	6	542181606	96	80	20	21
HDD320/6	320	6	575235735	148	100	20	21
HDD450/6	450	6	575235755	152	135	20	21
HDD500/6	500	6	575235770	158	150	20	21
HDD600/10	600	10	1056450600	430	250	24	25
HDD1200/10	1200	10	1056500650	520	390	35	39

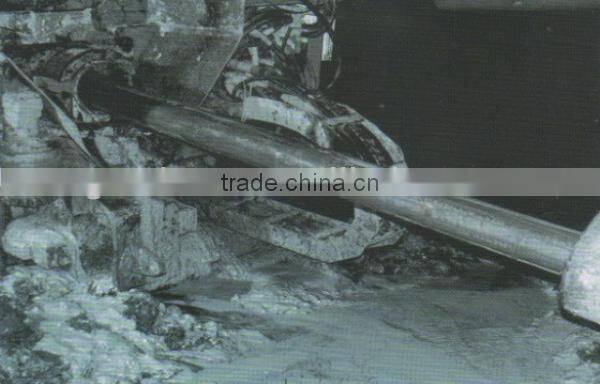

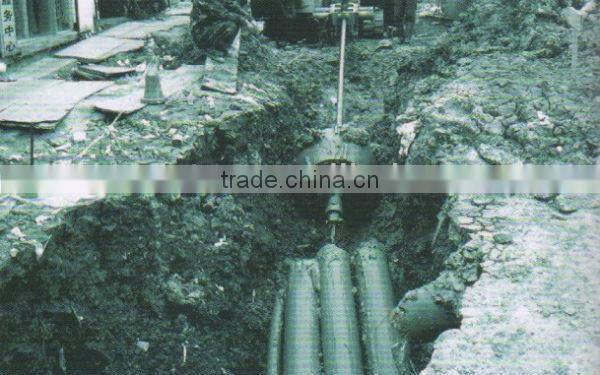

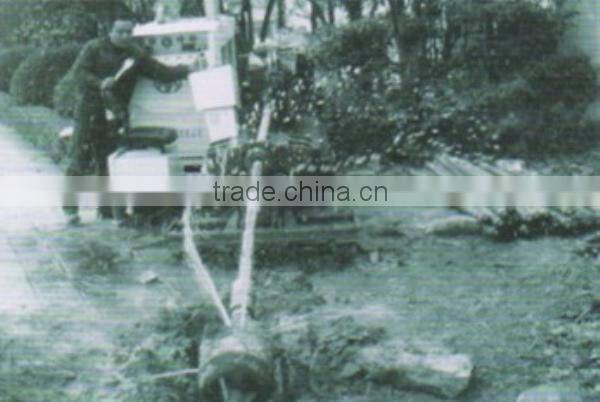

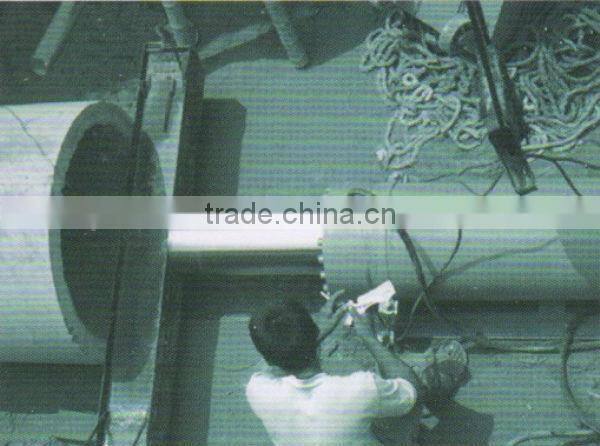

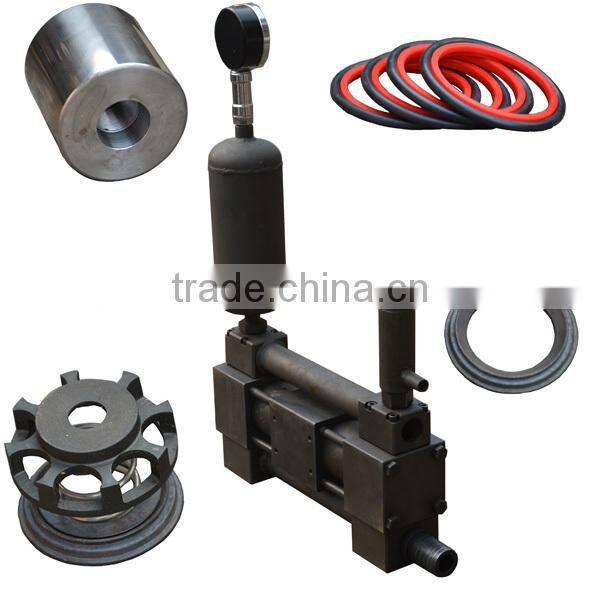

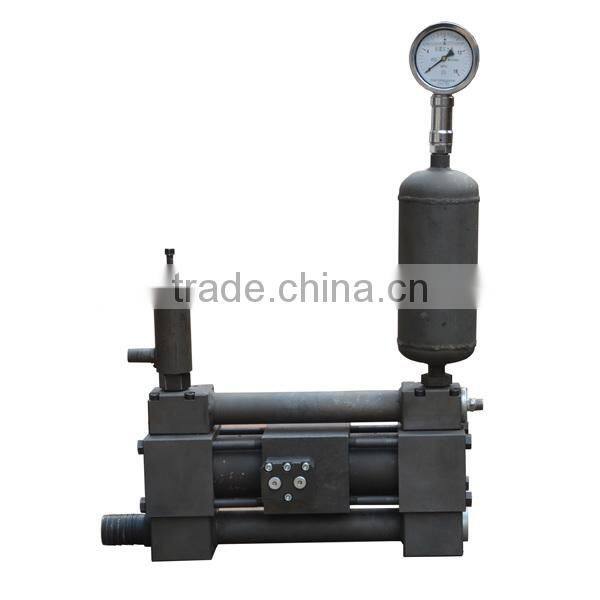

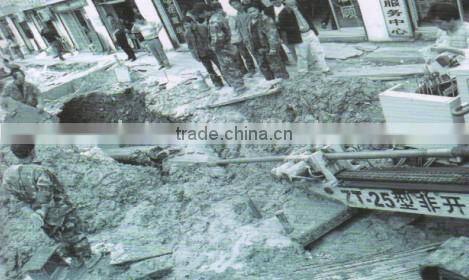

Slurry Pump for Shield Tunneling Machine Pictures:

Machines:

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Applications:
